Omron G2R-1-T 24VDC

mpnG2R-1-T DC24
brandname: OMRON
manufacturername: OMRON

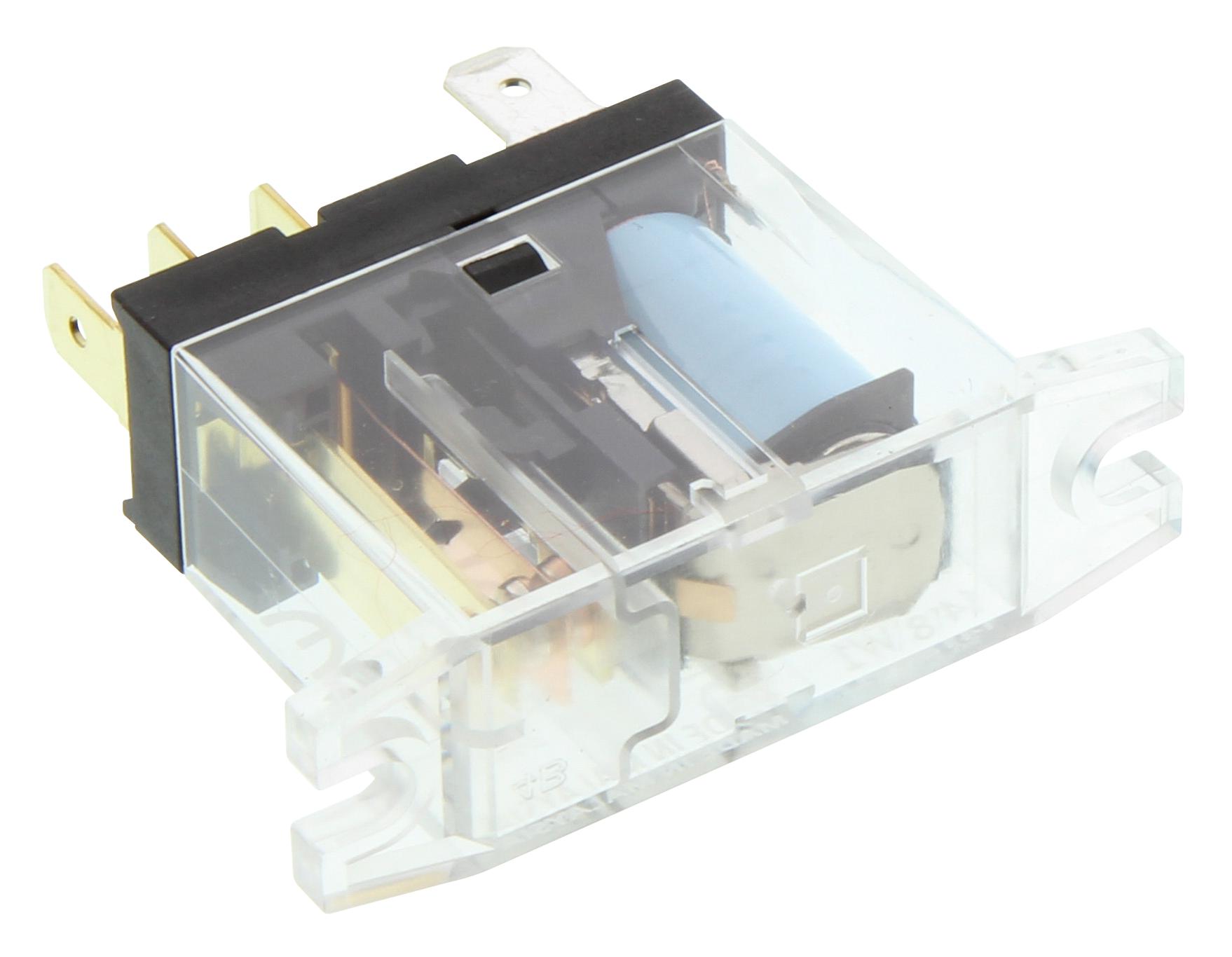

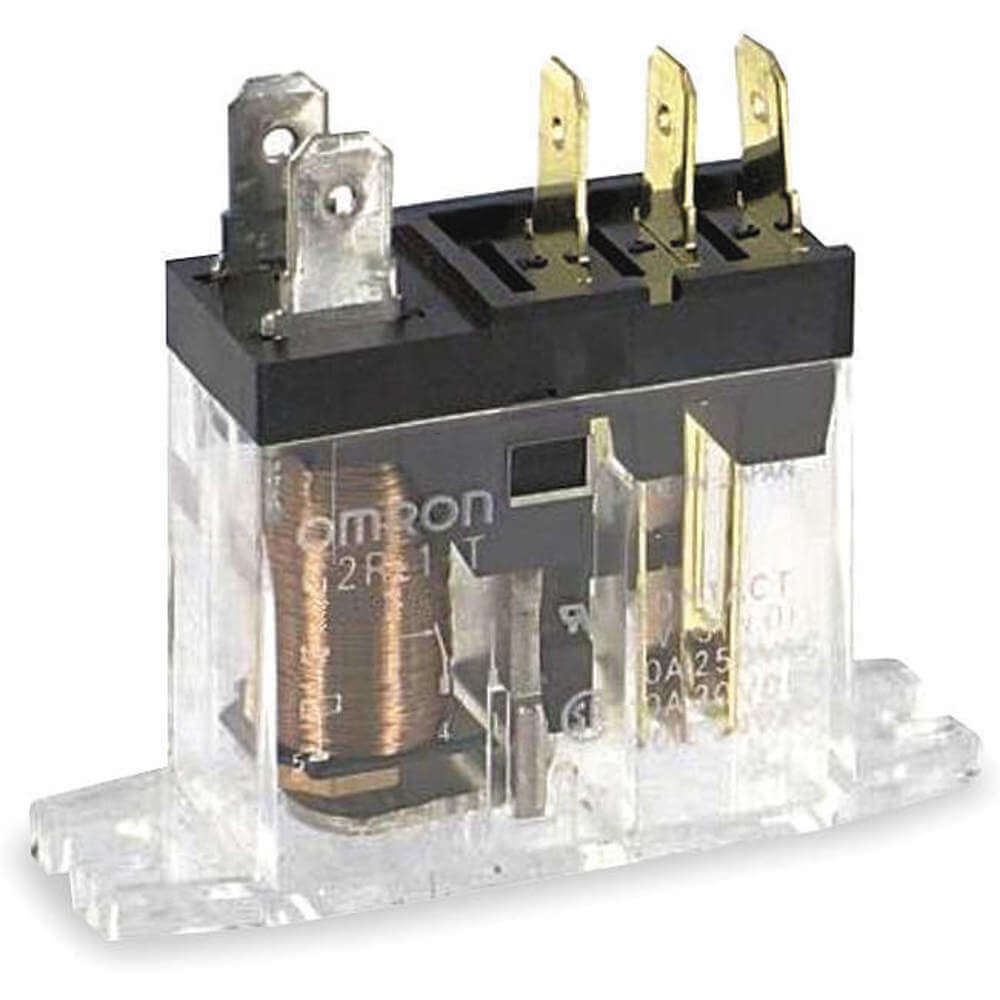

Omron INDUSTRIAL AUTOMATION G2R-1-T 24VDC POWER RELAY, SPDT, 24VDC, 10A, BRACKET

Brand: Omron
PartNumber: G2R-1-T 24VDC
Manufacturer: OMRON INDUSTRIAL AUTOMATION
Label: OMRON INDUSTRIAL AUTOMATION

Attributes

Key	Value
AC Contact Rating - Rel.	10A @ 240V
Alternate Mfr Part Numb.	G2R1TDC24
Base Product Number	G2R-1-T
Body Depth	1.16 in
Body Depth - Relay	0.56 in
Body Height	1.73 in
Body Height - Relay	1.16 in
Body Width	0.52 in
Body Width - Relay	1.2 in
Category	Relays
Coil Current	21.8 mA
Coil Insulation	-
Coil Resistance	1.1 kOhms
Coil Type	Non Latching
Coil Voltage	24VDC, 24 VDC
Coil Volts	24V DC
Contact Current Rating	10 A
Contact Form	SPDT (1 Form C), SPDT
Contact Form - Relay	SPDT
Contact Material	AgCdO, Silver Alloy
Contact Rating (Current)	10 A
Contact Voltage Rating	300 VAC
Control Voltage	24
Current Rating	10 A
DC Contact Rating - Rel.	10A @ 28V
Description	RELAY GEN PURPOSE SPDT .
Detailed Description	General Purpose Relay S.
Dielectric Rating	5000 VAC @ 50?60 Hz
Digi-Key Part Number	Z5900-ND
Dimensions	1.14 x W 0.51 x H 1.0 D.
Features	-
Flat Pin Width	0.187 in
Function	General Purpose
Item	Flange Mount Relay
Item - Relay	Flange Mount Relay
Manufacturer	Omron Automation and Sa.
Manufacturer Product Nu.	G2R-1-T-DC24
Manufacturer Standard L.	26 Weeks
Maximum Operating Tempe.	70 ?C
Mfr	Omron Automation and Sa.
Minimum Operating Tempe.	-40 ?C
Mounting	Top
Mounting - Relay	Top Flange
Mounting Diameter	0.05 in.
Mounting Hole Diameter	0.05 in
Mounting Type	Panel Mount, Chassis Mo.
Must Operate Voltage	16.8 VDC
Must Release Voltage	3.6 VDC
Number of Pins - Relay	5
Operate Time	15 ms
Operating Temperature	-40?C ~ 70?C
Overall Depth	1.5 in
Overall Height - Relay	1.49 in
Package	Tray
Pins	5
Power Consumption - Rel.	0.5 W
Power Rating	2500 VA ; 300 W
Primary Type	Power Relays
Product Status	Active
Relay Type	Electromechanical, Gene.
Release Time	5 ms
Seal Rating	Sealed - Flux Protection
Series	G2R Series, G2R
Standards	UL ; CSA ; VDE ; CE, Ro.
Status Indicator	None
Switching Voltage	380VAC, 125VDC - Max
Termination	QC Tabs
Termination Style	Quick Connect - 0.187" .
Voltage Rating	380 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Onlinecomponents.com	G2R1TDC24	5.19	1	375		OMRON INDUSTRIAL		5.19 @ 5
RS Delivers	211-1275	6.288	1	1035		Omron		6.288 @ 5
AmazonTP	B000E32VUK	7.06	1	5	15	OMRON		7.06 @ 5
Master Electronics	G2R-1-T-DC24	7.682	1	136		Omron Automation		7.682 @ 5
Carlton Bates Company	40312360071	7.9	1	5		OMRON		7.9 @ 5
LCOMP	40312360071	7.9	1	35		Omron		7.9 @ 5
Newark	88M3294	8.31	1	325		OMRON INDUSTRIAL AUTOMATION		8.31 @ 5
Digi-Key	368698	8.33	1	4159		Omron Automation and Safety		8.33 @ 5
kempstoncontrols.co.uk	G2R-1-T 24DC	8.447166	1	5		Omron		8.447166 @ 5
Airline Hydraulics	OMRON G2R-1-T-DC24	8.82	1	2000		Omron		8.82 @ 5
Zoro	G1906484	9.98	2	5		Omron	0.03	9.98 @ 5
us.rs-online.com	70178594	11.92	1	1869		Omron Automation		11.92 @ 5
sustainablesupply.com	C1207629	12.24	1	5		Omron	0.03	12.24 @ 5
Raptor Supplies	AE7MLM	14.74902	1	5		OMRON		14.74902 @ 5
