Omron G2R-2-S-AC120(S)

B00LQOLKMQ

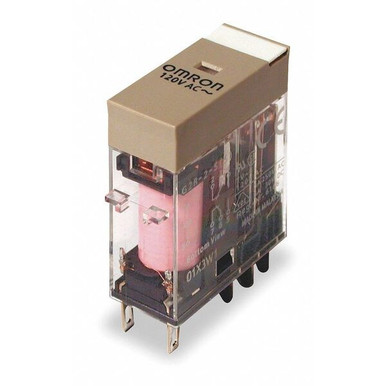

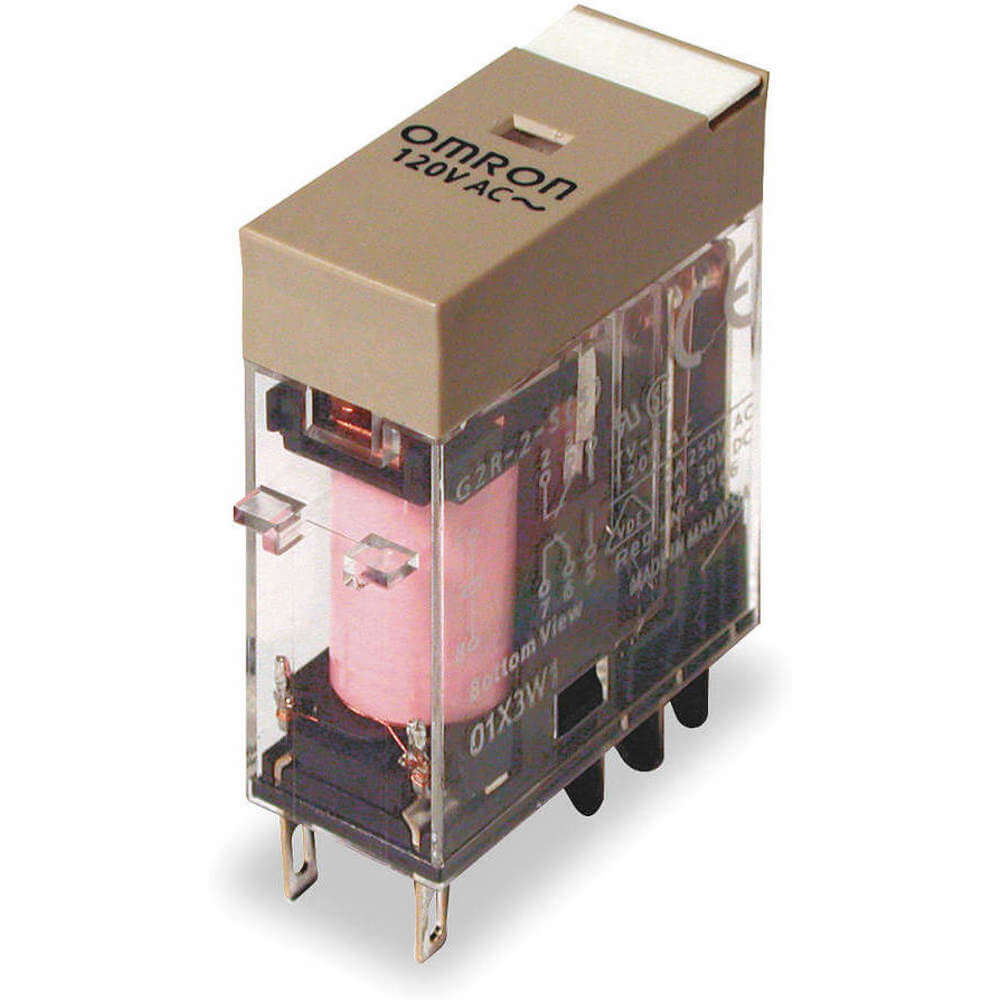

Omron INDUSTRIAL AUTOMATION G2R-2-S-AC120(S) POWER RELAY, DPDT, 120VAC, 5A, PLUG IN

Omron INDUSTRIAL AUTOMATION G2R-2-S-AC120(S) POWER RELAY, DPDT, 120VAC, 5A, PLUG INzoom

Attributes

Key Value
AC Contact Rating - Rel.5 A @ 240V, 5A @ 240V
Alternate Mfr Part Numb.G2R2SAC120S
Alternate Part No.653-G2R-2S-AC120S
Base Product NumberG2R-2-S
Base Type - Plug In Rel.Square
Body Depth1.4 in
Body Depth - Relay1.14 in
Body Height1.14 in
Body Height - Relay1.40 in, 1.4 in
Body Width0.51 in
Body Width - Relay0.51 in
BrandOmron, Omron Automation.
Case StylePlug-In
CategoryRelays
Coil Current7.5 mA, 8.6 mA, 8.6/7.5.
Coil Insulation-
Coil Resistance7.286 kOhms, 7289 Ohms,.
Coil TerminationSolder Pin
Coil TypeNon-Latching, Non Latch.
Coil Voltage120VAC, 120 VAC ; 110/1.
Coil Volts120V AC
Contact Current Rating5 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialCadmium Free, -, Ag-All.
Contact Rating (Current)5 A
Contact TerminationPin
Contact Voltage Rating300 VAC
Control Voltage120
Current5
Current Rating5 A
Current Stock797
DC Contact Rating - Rel.5 A @ 28V, 5A @ 28V
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Dielectric Rating5000 VAC
Digi-Key Part NumberZ1639-ND
Dimensions1.14 L x 0.51 W x 1 D in
Features-
Flat Pin Width0.187 in
Frequency50/60 Hz
FunctionGeneral Purpose
Height35.5 mm
HP @ 120V1/6 hp
HP @ 240V1/6 hp
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Lead TimeExpected to ship in 1-2.
Length29 mm
ManufacturerOmron, Omron Automation.
Manufacturer NameOmron
Manufacturer Part #G2R-2-S-AC120(S)
Manufacturer Part No.G2R-2-S-AC120S
Manufacturer Product Nu.G2R-2-S AC120(S)
Manufacturer Standard L.26 Weeks
Maximum Operating Tempe.70 ?C
MfrOmron Automation and Sa.
Minimum Buy QuantityN/A
Minimum Operating Tempe.-40 ?C
Mounting - RelayPlug In, Plug-In
Mounting StyleThrough Hole
Mounting TypeSocket Mount, Socketable
MpnG2R-2-S-AC120(S)
Must Operate Voltage96 VAC
Must Release Voltage36 VAC
Number of Pins8
Number of Pins - Relay8
Operate Time15 ms
Operating Temperature-40?C ~ 70?C
Overall Depth1.59 in
Overall Height - Relay1.69 in
PackageBulk
Part # Aliases7446184
Pins8
Power Consumption0.9 VA
Power Consumption - Rel.0.9 VA
Power Rating1250 VA ; 150 W
Primary TypePower Relays
Product CategoryGeneral Purpose Relays
Product Group - BDIE02128
Product StatusActive
Push To TestManual
Relay TypeElectromechanical, Gene.
Release Time15 ms
Seal Rating-
SeriesG2RS, G2RS Series
SKUZO-G2655676
Socket CodeJ
Socket Code - RelayJ
StandardsCSA Certified, UL Liste.
Status IndicatorMechanical Flag
SubCategoryElectrical
Switching Voltage380 VAC, 125 VDC, 380VA.
TerminationQC Tabs
Termination StyleSolder Pin, Plug In
UPC4536854936807
Voltage (V)120
Voltage Rating440 V
Weight (lbs)(0.004)
Weight / Kilogram0
Width13 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager ElectronicsG2R-2-SAC120(S)7.511236Omron7.51 @ 1
thumbzoomBD EnterprisesG2R-2-S-AC120(S)9.11In StockOmron0.0049.1 @ 1
thumbzoomswatee.comG2R-2-S-AC120S11.46179Omron11.46 @ 1
grainger.caWWG4FE1911.729024961In StockOMRON0.0511.72902496 @ 1
Mouser653-G2R-2S-AC120S11.911143Omron11.91 @ 1
thumbzoomNewark08J097112.121290OMRON INDUSTRIAL AUTOMATION12.12 @ 1
thumbzoomZoroG265567612.191969Omron0.0512.19 @ 1
thumbzoommidwestapplianceparts.comG2R-2-S-AC120(S)-OM-P12.591In StockOmron12.59 @ 1
thumbzoomDigi-Key58551515.69169Omron Automation and Safety15.69 @ 1
us.rs-online.com7017859516.3412279Omron Automation16.34 @ 1
Master ElectronicsG2R2SAC120S16.671112Omron Automation16.67 @ 1
thumbzoomRaptor SuppliesAD7LMY16.88315851In StockOMRON16.8831585 @ 1
thumbzoomBDI Express72169317.532306441In StockOMRON17.53230644 @ 1
Airline HydraulicsOMRON G2R-2-S AC120(S)17.721409Omron17.72 @ 1
thumbzoomsimsupply.comZO-G265567620.41797Omron20.4 @ 1
AmazonTPB0078RVXQS22.911In Stock2Omron22.91 @ 1
thumbzoomebay.com_twotee_z1006G2R-2-S-AC120S124.991In StockOmron124.99 @ 1
