Omron G7L-2A-T-J-CB-DC24

B0105IRCD4

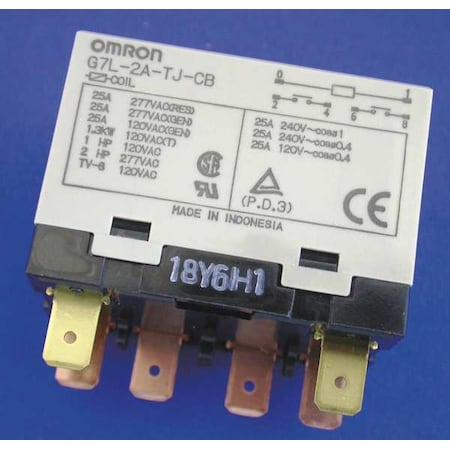

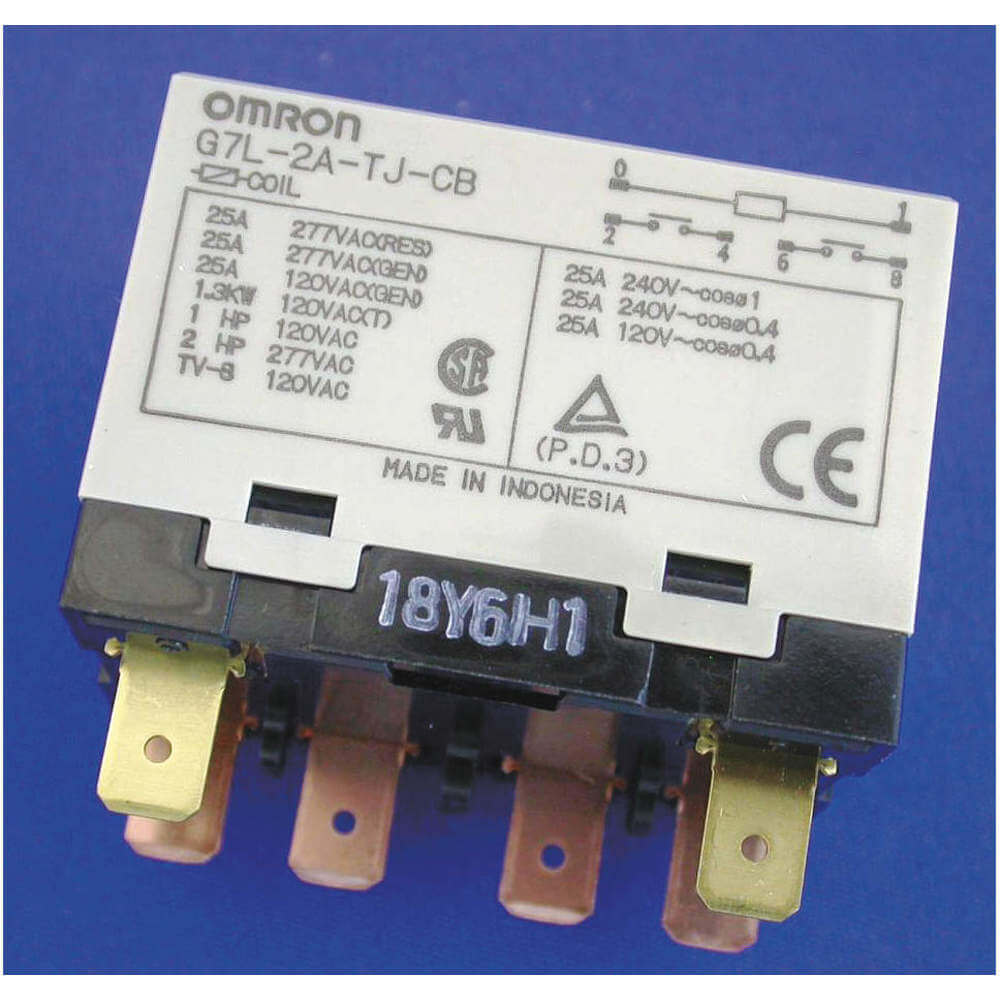

OMRON Industrial Automation G7L-2A-T-J-CB-DC24 Power Relay, DPST-NO, 24VDC, 25A Bracket

OMRON Industrial Automation G7L-2A-T-J-CB-DC24 Power Relay, DPST-NO, 24VDC, 25A Bracketzoom

Attributes

Key Value
AC Contact Rating - Rel.25A @ 240V
Alternate Mfr Part Numb.G7L2ATJCBDC24
Base Product NumberG7L-2A
Body Depth1.32 in
Body Depth - Relay1.32 in
Body Height2.07 in
Body Height - Relay1.91 in
Body Width1.4 in
Body Width - Relay2.07 in
CategoryRelays
Coil Current79 mA
Coil InsulationClass B
Coil Rating2.5VA, 1.9W
Coil Resistance303 Ohms
Coil TypeNon Latching
Coil Voltage24VDC
Coil Volts24V DC
Contact FormDPST-NO (2 Form A)
Contact Form - RelayDPST-NO
Contact MaterialSilver Tin Indium, Silv.
Contact Rating (Current)25 A
DescriptionRELAY GEN PURPOSE DPST .
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part NumberZ7808-ND
Dimensions2.09"H, 1.44"W, 2.07"D
Electrical Connection -.1/4 in Tab Terminal
FeaturesTest Button
Flat Pin Width0.25 in
HP @ 240V3
Item - RelayEnclosed Power Relay
ManufacturerOmron Electronics Inc-E.
Manufacturer Product Nu.G7L-2A-T-J-CB-DC24
Manufacturer Standard L.16 Weeks
MfrOmron Electronics Inc-E.
MountingBracket
Mounting - RelayBracket
Mounting Hole Diameter0.18 in
Mounting TypeChassis Mount
Must Operate Voltage18 VDC
Must Release Voltage3.6 VDC
Number of Pins - Relay6
Operate Time30 ms
Operating Temperature-25?C ~ 60?C
Overall Depth2.09 in
Overall Height - Relay2.09 in
PackageBulk
Power Consumption - Rel.1.9 W
Product StatusActive
Relay TypeGeneral Purpose
Release Time30 ms
Seal Rating-
SeriesG7L
StandardsCSA Certified, TUV Cert.
Switching Voltage250VAC - Max
Termination StyleQuick Connect - 0.250" .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowG7L-2A-T-J-CB-DC248.509115Omron8.509 @ 1
Onlinecomponents.comG7L-2A-T-J-CB-DC2411.081In StockOMRON ELECTRONICS11.08 @ 1
Mouser653-G7L-2A-TJ-DC2412.041281Omron12.04 @ 1
thumbzoomNewark89C680412.2320In StockOMRON ELECTRONIC COMPONENTS12.23 @ 10
us.rs-online.com7206768212.791In StockOmron Automation12.79 @ 1
thumbzoomZoroG314656113.051In StockOmron0.213.05 @ 1
thumbzoomsustainablesupply.comC116860514.151In StockOmron0.214.15 @ 1
thumbzoomDigi-Key36938215.4163Omron Electronics Inc-EMC Div15.4 @ 1
AmazonTPB00DWIIJTG17.851In Stock2Omron17.85 @ 1
Airline HydraulicsOMRON G7L-2A-T-J-CB-DC2422.371In StockOmron22.37 @ 1
thumbzoomRaptor SuppliesAB4HTJ33.66575551In StockOMRON33.6657555 @ 1
