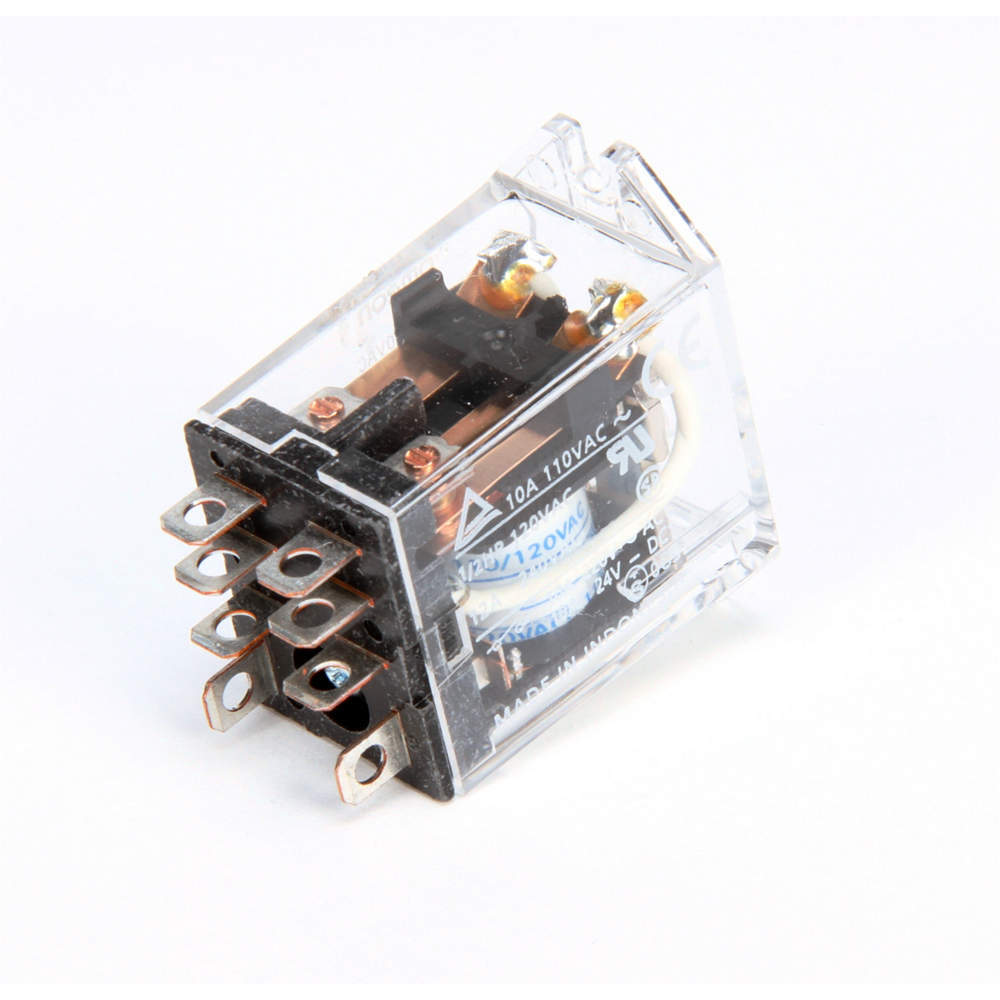

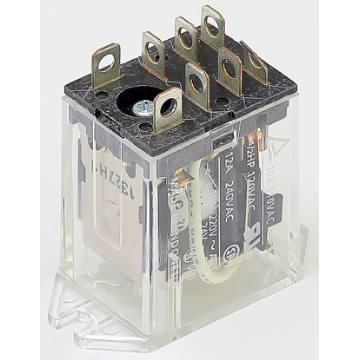

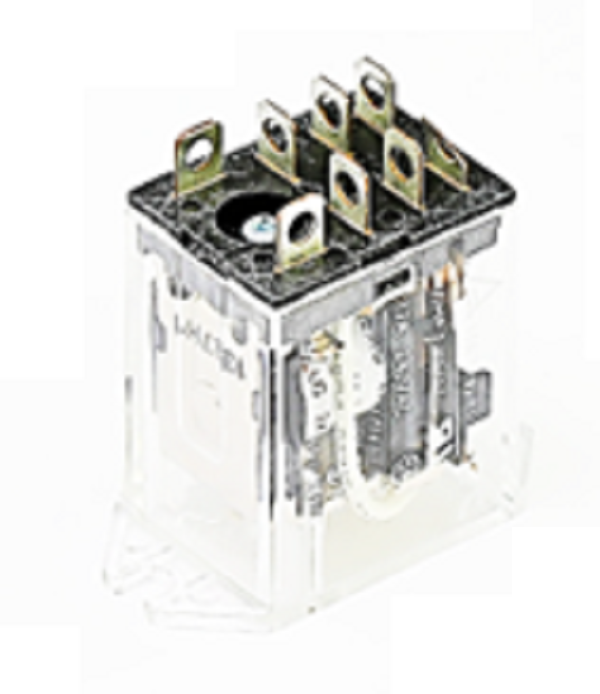

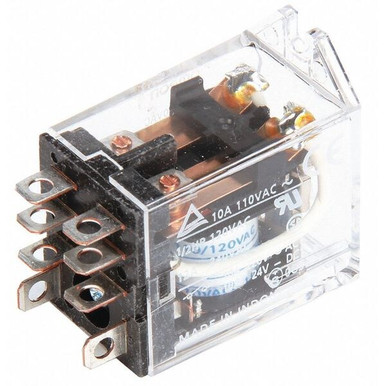

Omron LY2F-AC24

B000LEZ53W

Relay, 8Pin, Dpdt, 10A, 24Vac

Relay, 8Pin, Dpdt, 10A, 24Vaczoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120V
Alternate Mfr Part Numb.LY2FAC24
Alternate Part No.653-LY2F-AC24
Body Depth1.39 in
Body Depth - Relay1.14 in
Body Height1.73 in
Body Height - Relay1.4 in
Body Width0.88 in
Body Width - Relay0.89 in
BrandOmron, Omron Automation.
CategoryRelays
Coil Current46.0mA, 46 mA, 25 ms, 5.
Coil Insulation19.2 VAC
Coil Resistance180 Ohms
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching, Non Latch.
Coil Voltage24 VAC, 24VAC, DPDT (2 .
Coil Volts24V AC
Contact Current Rating7 A, 10 A
Contact FormDPDT, 250VAC, 125VDC - .
Contact Form - RelayDPDT
Contact MaterialGeneral Purpose, Silver.
Contact Rating10A @ 110VAC/24VDC
Contact Rating (Current)46 mA, 10A
Contact Resistance50 mOhms
Contact TerminationPin
Contact Voltage Rating300
Control Voltage24
Country of OriginUSA
Current Rating10 A
Current Stock99
DC Contact Rating - Rel.10A @ 24V
Dielectric Rating2000 VAC
Dielectric Strength2000 VAC @ 50?60 Hz (1 .
FeaturesArc Barrier Equipped, P.
FunctionGeneral Purpose
Height2.350, 35.56 mm
HP @ 120V1/3 hp
Insulation Resistance100 MegaOhms
International ShippingNo
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Lead Free Status / RoHS.RoHS Compliant
Length0.850, 43.94 mm
ManufacturerOmron
Manufacturer Part No.LY2F-AC24
Manufacturer Part NumberLY2F-AC24
Maximum Operating Tempe.55 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting - RelayTop Flange
Mounting Hole Diameter2 in
Mounting StylePanel
Mounting TypePanel Mount Flanged Cov.
MpnLY2F-AC24
Must Operate Voltage19.2 VAC, 7.2 VAC
Must Release Voltage7.2 VAC, -25?C ~ 55?C
Number of Pins8
Number of Pins - Relay8
Operate Time25ms, 25 ms
Operating Temperature-25, Silver Alloy
Overall Depth1.64 in
Overall Height - Relay1.65 in
PackageActive
Package Quantity1
PackagingBulk Pack
Part # Aliases9864768
Part StatusChassis Mount
Power Consumption1 VA to 1.2 VA
Power Consumption - Rel.1.1 VA
Power Rating1100 VA ; 240 W
Primary TypePower Relays
Product CategoryGeneral Purpose Relays
Push To TestManual
Relay TypeElectromechanical, Gene.
Release Time180 Ohms, 25ms
Seal Rating-
SeriesBulk, LY Series, LY
Size MeasureIN
SKUZO-G0400224
Standard Package50
StandardsUL ; CSA ; SEV
Status IndicatorNone
SubCategoryElectrical
Switching VoltageNon Latching, 250VAC, 1.
TerminationQC Tabs
Termination StyleQuick Connect Terminal,.
UNSPSC39122325
Voltage Rating250 ; 125 V
Weight0.080
Weight MeasureLB
Width22.6 mm, 4.400

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNEP ElectronicsLY2F-AC245.351In StockOmron5.35 @ 1
iodPartsLY2F-AC245.6250600Omron5.62 @ 50
WaldomOMRON ELECTRONICS LY2F-AC246.541In StockOmron Electronics6.54 @ 1
Sager ElectronicsLY2FAC246.81150Omron6.81 @ 1
Onlinecomponents.comLY2FAC247.031498OMRON INDUSTRIAL7.03 @ 1
thumbzoomZoroG04002248.351In StockOmron8.35 @ 1
thumbzoomCarlton Bates Company403123481139.131In StockOMRON9.13 @ 1
thumbzoomComponent Electronics711-24V-219.231In StockOmron Electronics9.23 @ 1
VericalLY2F-AC249.342235Omron9.342 @ 2
thumbzoomDigi-KeyZ192-ND11.971In StockOmron Automation and Safety11.97 @ 1
AmazonTPB005T680NY12.481In Stock15Omron12.48 @ 1
thumbzoomsustainablesupply.comC118442713.691In StockOmron0.0513.69 @ 1
RS Delivers828-729214.0161125Omron14.016 @ 1
thumbzoomNewark36K754814.2147OMRON INDUSTRIAL AUTOMATION14.2 @ 1
us.rs-online.com7017881614.4311374Omron Automation14.43 @ 1
thumbzoomswatee.comLY2F-AC2415.08132Omron15.08 @ 1
Master ElectronicsLY2FAC2415.1212776Omron Automation15.12 @ 1
thumbzoomgsistore.comLY2F-AC2415.41124Omron15.41 @ 1
thumbzoomsimsupply.comZO-G040022417.051In StockOmron17.05 @ 1
thumbzoomRaptor SuppliesAC3XBN17.1848431In StockOMRON17.184843 @ 1
thumbzoommidwestapplianceparts.comLY2F-AC24-OM-P17.781In StockOmron17.78 @ 1
thumbzoomebay.com_graingerLY2F-AC2417.921In StockOmron17.92 @ 1
thumbzoomebay.com_cfi.industrialLY2F-AC2424.51In StockOmron24.5 @ 1
thumbzoomHD Supply22198346.391In StockOmron0.0846.39 @ 1
