Omron LY3-AC24

B00IKCQW48

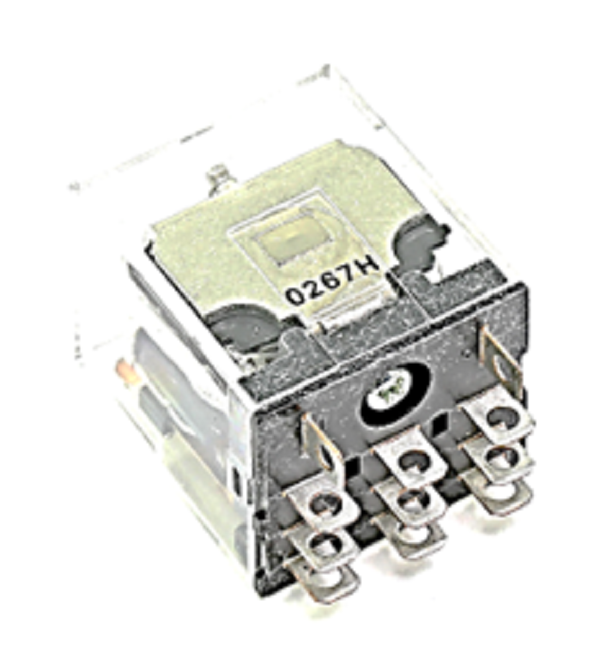

Power Relay, 3PDT, 24 VAC, 10 A, LY Series, Through Hole, Non Latching

Power Relay, 3PDT, 24 VAC, 10 A, LY Series, Through Hole, Non Latchingzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120V
Alternate Mfr Part Numb.LY3AC24
Alternate Part No.653-LY3-AC24
Base Product NumberLY3-AC
Base Type - Plug In Rel.Square
Body Depth1.44 in
Body Depth - Relay1.1 in
Body Height1.1 in
Body Height - Relay1.44 in
Body Width0.85 in
Body Width - Relay1.24 in
BrandOmron Automation and Sa.
CategoryRelays
Coil Current46 mA, 80 mA, 67 mA
Coil Insulation-
Coil Resistance100 Ohms
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching, Non Latch.
Coil Voltage24 VAC, 24VAC
Coil Volts24V AC
Contact Current Rating10 A
Contact Form3PDT (3 Form C), 3PDT
Contact Form - Relay3PDT
Contact MaterialSilver Alloy
Contact Rating (Current)10 A
Contact Resistance50 mOhms
Contact TerminationPin
Contact Voltage Rating300
Control Voltage24
Current Rating10 A
DC Contact Rating - Rel.10A @ 24V
DescriptionRELAY GEN PURPOSE 3PDT .
Detailed DescriptionGeneral Purpose Relay 3.
Dielectric Rating2000 VAC
Digi-Key Part NumberZ5733-ND
Dimensions1.10 L x 1.24 W x 1.44 .
Features-
Flat Pin Width0.197 in
FunctionGeneral Purpose
Height36.5 mm
HP @ 120V1/10 hp
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Length31.5 mm
ManufacturerOmron, Omron Automation.
Manufacturer Part No.LY3-AC24
Manufacturer Product Nu.LY3-AC24
Manufacturer Standard L.26 Weeks
Maximum Operating Tempe.40 C
Maximum Switching Curre.10 A
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting - RelayPlug In
Mounting StyleSocket
Mounting TypeSocket Mount, Socketable
Must Operate Voltage19.2 VAC
Must Release Voltage7.2 VAC
Number of Pins11
Number of Pins - Relay11
Operate Time25 ms
Operating Temperature-25?C ~ 55?C
Overall Depth1.69 in
Overall Height - Relay1.69 in
PackageBulk
Part # Aliases9856161 LY3AC24NC
Power Consumption1.6 VA to 2 VA
Power Consumption - Rel.1.6 VA
Power Rating1100 VA ; 240 W
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Product StatusActive
Relay TypeElectromechanical, Gene.
Release Time25 ms
Seal Rating-
SeriesLY Series, LY
Socket CodeE
StandardsUL ; CSA ; SEV, UL508, .
Switching Voltage250 VAC, 125 VDC, 250VA.
TerminationQC Tabs
Termination StyleQuick Connect Terminal,.
TypeCube Style
Voltage Rating250 ; 125 V
Width28 mm
