Omron LY3-DC12

B00IKCQXCE

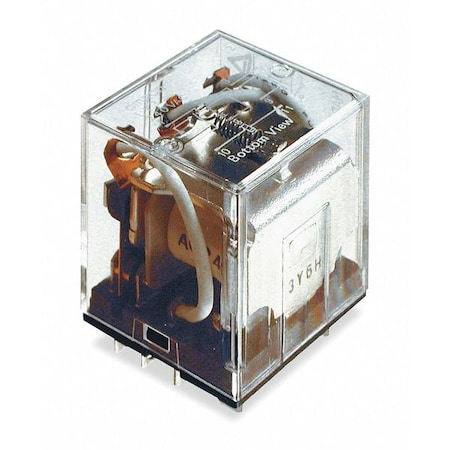

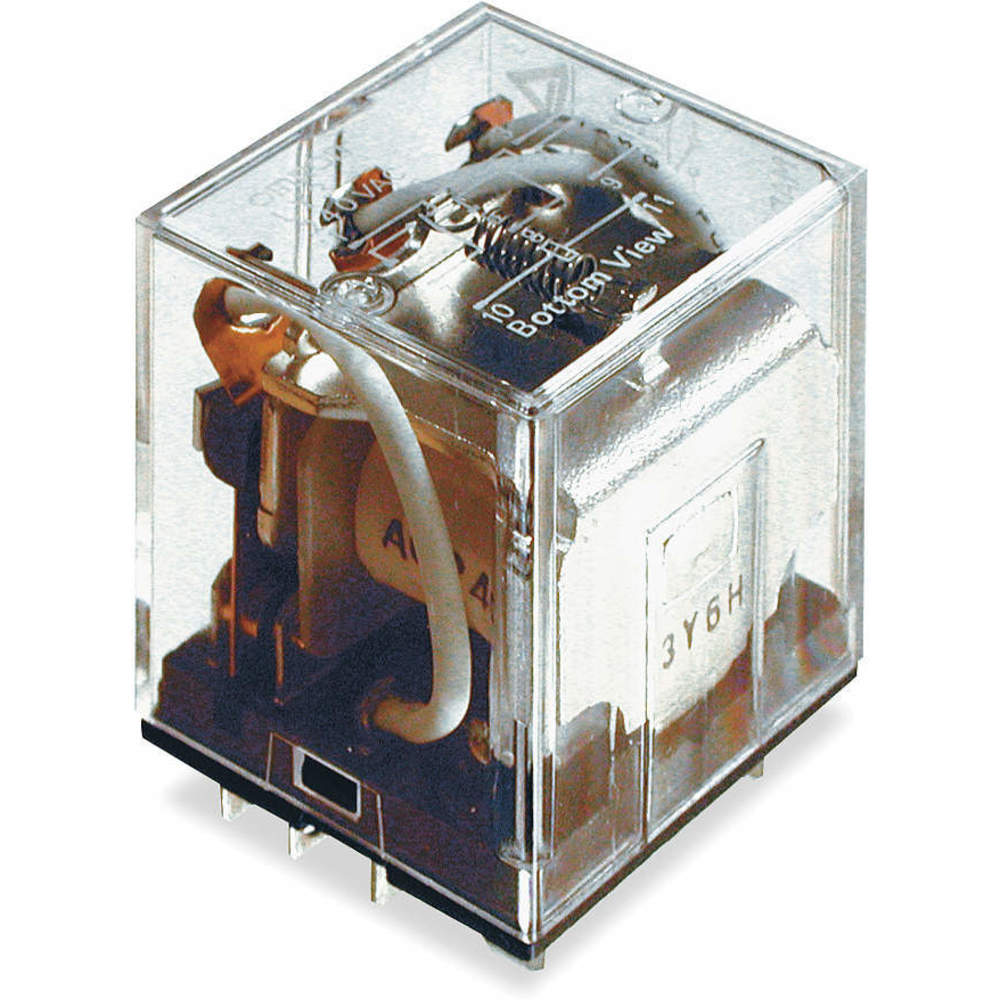

Omron Industrial Automation Relay, 3Pdt, 240Vac, 30Vdc, 10A - LY3-DC12

Omron Industrial Automation Relay, 3Pdt, 240Vac, 30Vdc, 10A - LY3-DC12zoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120V, 10 A @ 120V
Alternate Mfr Part Numb.LY3DC12
Alternate Part No.653-LY3-DC12
Base Product NumberLY3-DC
Base Type - Plug In Rel.Square
Body Depth1.44 in
Body Depth - Relay1.10 in, 1.1 in
Body Height1.1 in
Body Height - Relay1.44 in
Body Width0.85 in
Body Width - Relay1.24 in
BrandOmron Automation and Sa.
CategoryRelays
Coil Current112 mA
Coil Insulation-
Coil Resistance24 Ohms, 107 Ohms
Coil TerminationQuick Connect Terminal
Coil TypeNon-Latching, Non Latch.
Coil Voltage12 V, 12 VDC, 12VDC
Coil Volts12V DC
Contact Current Rating10 A
Contact Form3PDT (3 Form C), 3PDT
Contact Form - Relay3PDT
Contact MaterialAg-Alloy, Silver Alloy
Contact Rating10A @ 120VAC/24VDC
Contact Rating (Current)10 A
Contact Resistance50 mOhms
Contact TerminationPin
Contact Voltage Rating300
Control Voltage12
Current Rating10 A
DC Contact Rating - Rel.10 A @ 24V, 10A @ 24V
DescriptionRELAY GEN PURPOSE 3PDT .
Detailed DescriptionGeneral Purpose Relay 3.
Dielectric Rating2000 VAC
Digi-Key Part NumberZ5907-ND
Dimensions1.24 W x 1.44 H x 1.10 .
Features-
Flat Pin Width0.197 in
FunctionGeneral Purpose
Height36.57 mm
HP @ 120V1/10 hp
HP @ 240V1/2 hp
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Length27.94 mm
ManufacturerOmron, Omron Automation.
Manufacturer Part No.LY3-DC12
Manufacturer Product Nu.LY3-DC12
Manufacturer Standard L.26 Weeks
Maximum Operating Tempe.40 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting - RelayPlug In, Plug-In
Mounting StyleSocket
Mounting TypeSocket Mount, Socketable
Must Operate Voltage9.6 VDC
Must Release Voltage1.2 VDC
Number of Pins11
Number of Pins - Relay11
Operate Time25 ms
Operating Temperature-25?C ~ 55?C
Overall Depth1.69 in
Overall Height - Relay1.69 in
PackageBulk
Part # Aliases1387313 LY3DC12NC
Pins11
Power Consumption1.4 W
Power Consumption - Rel.1.4 W
Power Rating1100 VA ; 240 W
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Product StatusActive
Push To TestManual
Relay TypeElectromechanical, Gene.
Release Time25 ms
Seal Rating-
SeriesLY Series, LY
Socket Code - RelayE
StandardsUL ; CSA ; SEV, UL508, .
Status IndicatorNo
Switching Voltage250 VAC, 125 VDC, 250VA.
TerminationQC Tabs
Termination StyleQuick Connect Terminal,.
TypeCube Style
Voltage Rating250 ; 125 V
Width27.94 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowLY3-DC124.78611Omron4.786 @ 1
Onlinecomponents.comLY3DC1211.33275Omron11.33 @ 2
thumbzoomCarlton Bates Company4031234787312.051In StockOMRON12.05 @ 1
Mouser653-LY3-DC1214.0142Omron14.0 @ 1
thumbzoomNewark35K321014.55177OMRON INDUSTRIAL AUTOMATION14.55 @ 1
thumbzoomswatee.comLY3-DC1215.24130Omron15.24 @ 1
thumbzoomZoroG170617116.99171Omron0.0516.99 @ 1
KeleLY3-DC1217.161In StockOmron17.16 @ 1
grainger.caWWG6C87817.593537441In StockOMRON0.0517.59353744 @ 1
thumbzoomDigi-Key36950718.861In StockOmron Automation and Safety18.86 @ 1
thumbzoomsustainablesupply.comC120906123.511In StockOmron0.0523.51 @ 1
us.rs-online.com7017882824.16178Omron Automation24.16 @ 1
AmazonTPB00IKCQXCE27.961In Stock2Omron27.96 @ 1
thumbzoomRaptor SuppliesAE7ZNW29.2075291In StockOMRON29.207529 @ 1
Master ElectronicsLY3DC1233.221In StockOMRON INDUSTRIAL33.22 @ 1
