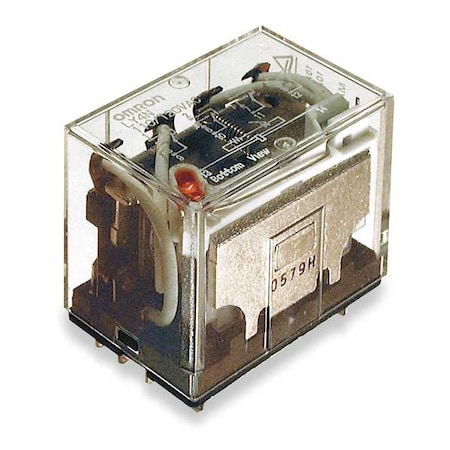

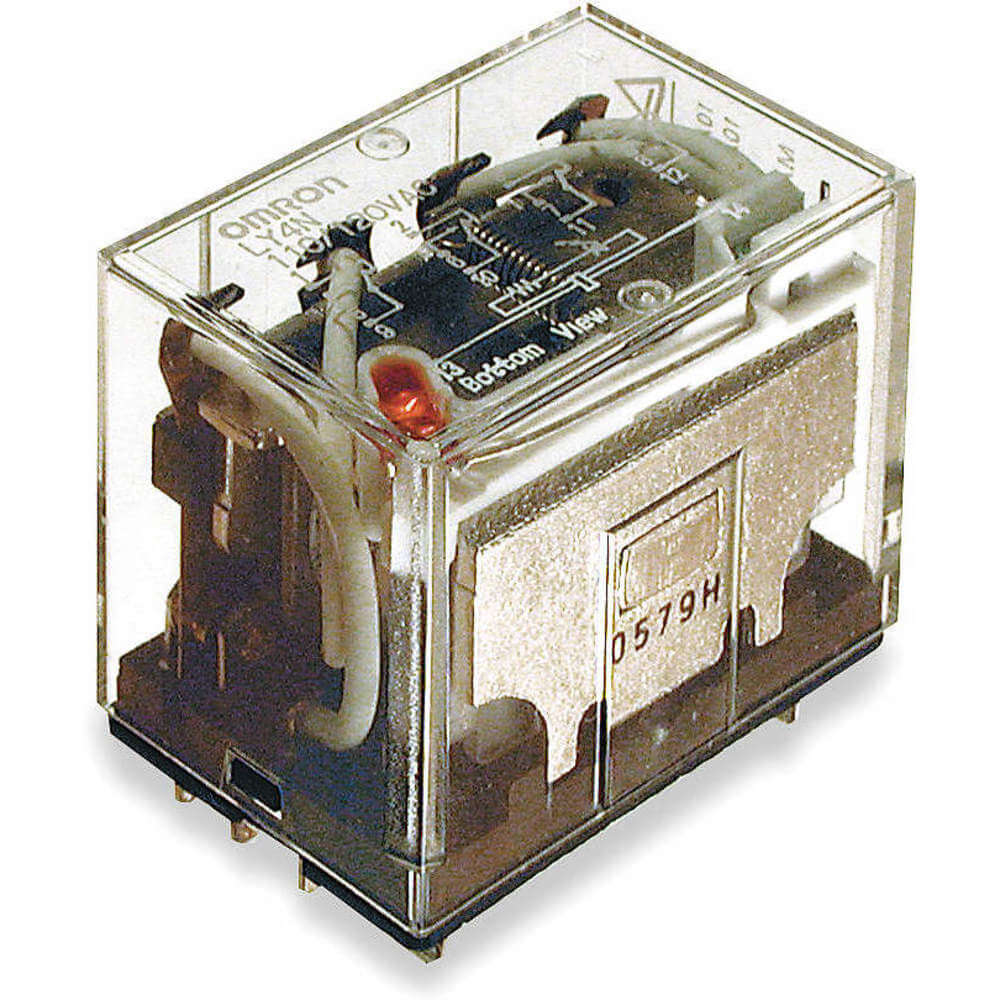

Omron LY4N-AC24

B005T66QRG

Omron LY4N-AC24 General Purpose Relay, LED Indicator Type, Plug-In/Solder Terminal, Standard Bracket Mounting, Single Contact, Quadruple Pole Double Throw Contacts, 93.6 mA at 50 Hz and 80 mA at 60 Hz Rated Load Current, 24 VAC Rated Load Voltage

Omron LY4N-AC24 General Purpose Relay, LED Indicator Type, Plug-In/Solder Terminal, Standard Bracket Mounting, Single Contact, Quadruple Pole Double Throw Contacts, 93.6 mA at 50 Hz and 80 mA at 60 Hz Rated Load Current, 24 VAC Rated Load Voltagezoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120V, 10 A @ 120V
Alternate Mfr Part Numb.LY4NAC24
Base Product NumberLY4N-AC
Base Type - Plug In Rel.Square
Body Depth1.42 in
Body Depth - Relay1.10 in, 1.1 in
Body Height1.1 in
Body Height - Relay1.42 in
Body Width1.63 in
Body Width - Relay1.63 in
CategoryRelays
Coil Current46 mA, 80 mA
Coil Insulation-
Coil Resistance78 Ohms
Coil TypeNon Latching
Coil Voltage24 VAC, 24VAC
Coil Volts24V AC
Contact Current Rating10 A
Contact Form4PDT, 4PDT (4 Form C)
Contact Form - Relay4PDT
Contact MaterialSilver Alloy
Contact Rating (Current)10 A
Contact Resistance50 mOhms
Contact Voltage Rating300
Control Voltage24
Current Rating10 A
DC Contact Rating - Rel.10 A @ 24V, 10A @ 24V
DescriptionRELAY GEN PURPOSE 4PDT .
Detailed DescriptionGeneral Purpose Relay 4.
Dielectric Rating2000 VAC
Digi-Key Part NumberZ2274-ND
FeaturesArc Barrier Equipped, H.
Flat Pin Width0.197 in
FunctionGeneral Purpose
Green Environmental Att.RoHS 2011/65/EU Complia.
HP @ 120V1/3 hp
HP @ 240V1/3 hp
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.LY4N-AC24
Manufacturer Standard L.26 Weeks
Maximum Operating Tempe.40 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting - RelayPlug In, Plug-In
Mounting TypeSocket Mount, Socketable
Must Operate Voltage19.2 VAC
Must Release Voltage7.2 VAC
Number of Pins14 Pin
Number of Pins - Relay14
Operate Time25 ms
Operating Temperature-25?C ~ 40?C
Overall Depth1.67 in
Overall Height - Relay1.69 in
PackageBulk
Power Consumption - Rel.2 VA, 2.0 VA
Power Rating1100 VA ; 240 W
Primary TypePower Relays
Product StatusActive
Push To TestManual
Relay TypeElectromechanical, Gene.
Release Time25 ms
Seal Rating-
SeriesLY Series, LY
Socket Code - RelayF
Special FeaturesLED Indicator
StandardsCE Certified, CSA Certi.
Status IndicatorLED
Switching Voltage250VAC, 125VDC - Max
TerminationQC Tabs
Termination StylePlug In
Voltage Rating250 ; 125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomOMRON ELECTRONICS LY4N-AC2417.141In StockOmron Electronics17.14 @ 1
thumbzoomZoroG321728620.891145Omron0.1620.89 @ 1
grainger.caWWG6C88321.01208371In StockOMRON0.1621.0120837 @ 1
Freelance ElectronicsLY4N-AC2425.4783312OMRON25.47833 @ 1
Mouser653-LY4NAC2426.31119Omron26.31 @ 1
KeleLY4N-AC2427.04189Omron27.04 @ 1
AmazonTPB005T66QRG28.01In Stock15Omron28.0 @ 1
thumbzoomDigi-Key36957129.1912Omron Automation and Safety29.19 @ 1
thumbzoomsustainablesupply.comC120906630.61In StockOmron0.1630.6 @ 1
us.rs-online.com7017885131.44178Omron Automation31.44 @ 1
Master ElectronicsLY4NAC2432.41125Omron Automation32.41 @ 1
Onlinecomponents.comLY4NAC2433.84118Omron33.84 @ 1
thumbzoomNewark22C954433.9122OMRON INDUSTRIAL AUTOMATION33.9 @ 1
RS Delivers827-788535.064112Omron35.064 @ 1
thumbzoomMRO Supply616426635.141In StockOmron35.14 @ 1
Airline HydraulicsOMRON LY4N-AC2437.081In StockOmron37.08 @ 1
thumbzoomRaptor SuppliesAE7ZPB38.00107351In StockOMRON38.0010735 @ 1
VericalLY4N-AC2439.59217Omron39.59 @ 2
