Omron LY4-DC24

B005MIATLU

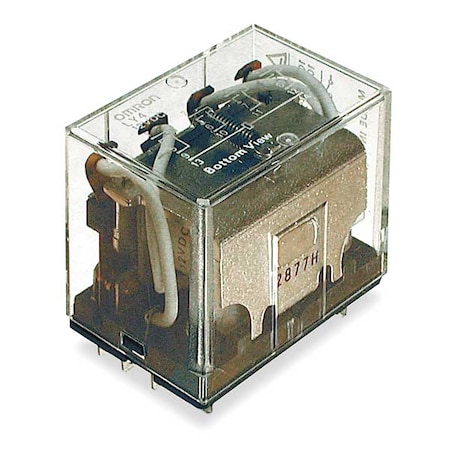

Omron LY4-DC24 General Purpose Relay, Standard Type, Plug-In/Solder Terminal, Standard Bracket Mounting, Single Contact, Quadruple Pole Double Throw Contacts, 69 mA Rated Load Current, 24 VDC Rated Load Voltage

Omron LY4-DC24 General Purpose Relay, Standard Type, Plug-In/Solder Terminal, Standard Bracket Mounting, Single Contact, Quadruple Pole Double Throw Contacts, 69 mA Rated Load Current, 24 VDC Rated Load Voltagezoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120V
Alternate Mfr Part Numb.LY4DC24
Base Product NumberLY4
Base Type - Plug In Rel.Square
Body Depth1.42 in
Body Depth - Relay1.1 in
Body Height1.1 in
Body Height - Relay1.42 in
Body Width1.63 in
Body Width - Relay1.63 in
CategoriesRelays
CategoryRelays
Coil Current 69.0mA , 69 mA
Coil Insulation-
Coil Resistance350 Ohms
Coil TypeNon Latching
Coil Voltage24VDC, 24 VDC
Coil Volts24V DC
Contact Current Rating10 A
Contact Form4PDT, 4PDT (4 Form C)
Contact Form - Relay4PDT
Contact MaterialSilver Alloy
Contact Rating (Current) 10A , 10 A
Contact Resistance50 mOhms
Contact Voltage Rating300
Control Voltage24
Current Rating10 A
DC Contact Rating - Rel.10A @ 24V
Dielectric Rating2000 VAC
Dimensions1.10 L x 1.63 W x 1.42 .
FeaturesArc Barrier Equipped, H.
Flat Pin Width0.197 in
FunctionGeneral Purpose
HP @ 120V1/10 hp
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Lead Free Status / RoHS. Lead free / RoHS Compl.
ManufacturerOmron Automation and Sa.
Manufacturer Part Number LY4-DC24
Maximum Operating Tempe.40 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Moisture Sensitivity Le. 1 (Unlimited)
Mounting - RelayPlug In
Mounting TypeSocket Mount, Socketable
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Number of Pins14 Pin
Number of Pins - Relay14
Operate Time 25ms , 25 ms
Operating Temperature-25?C ~ 40?C
Overall Depth1.67 in
Overall Height - Relay1.69 in
PackageBulk
Packaging Bulk Pack
Power Consumption - Rel.1.5 W
Power Rating1100 VA ; 240 W
Primary TypePower Relays
Product StatusActive
Relay TypeElectromechanical, Gene.
Release Time 25ms , 25 ms
Seal Rating-
SeriesLY Series, LY
StandardsCE Certified, CSA Certi.
Switching Voltage250VAC, 125VDC - Max
TerminationQC Tabs
Termination StylePlug In
Voltage Rating250 ; 125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowLY4-DC249.66712Omron9.667 @ 1
WaldomOMRON ELECTRONICS LY4-DC2410.111In StockOmron Electronics10.11 @ 1
Onlinecomponents.comLY4DC2410.85162OMRON INDUSTRIAL10.85 @ 1
thumbzoomCarlton Bates Company4031234776714.61In StockOMRON14.6 @ 1
thumbzoomZoroG086543514.951In StockOmron0.1514.95 @ 1
thumbzoomMRO Supply616426415.353In StockOmron15.35 @ 3
iodPartsLY4-DC2415.6620280Omron Automation and Safety15.66 @ 20
Mouser653-LY4-DC2415.951110Omron15.95 @ 1
KeleLY4-DC2418.721In StockOmron18.72 @ 1
AmazonTPB005MIATLU19.291In Stock15Omron19.29 @ 1
thumbzoomNewark36K755422.03151OMRON INDUSTRIAL AUTOMATION22.03 @ 1
Digi-Key36954322.261604Omron Automation and Safety22.26 @ 1
us.rs-online.com7017884222.271461Omron Automation22.27 @ 1
Master ElectronicsLY4DC2422.9811206Omron Automation22.98 @ 1
Airline HydraulicsOMRON LY4-DC2424.131800Omron24.13 @ 1
thumbzoomsustainablesupply.comC120906425.241In StockOmron0.1525.24 @ 1
thumbzoomRaptor SuppliesAE7ZNZ31.34166751In StockOMRON31.3416675 @ 1
