D4A-1102-N

B00DEEAA2C

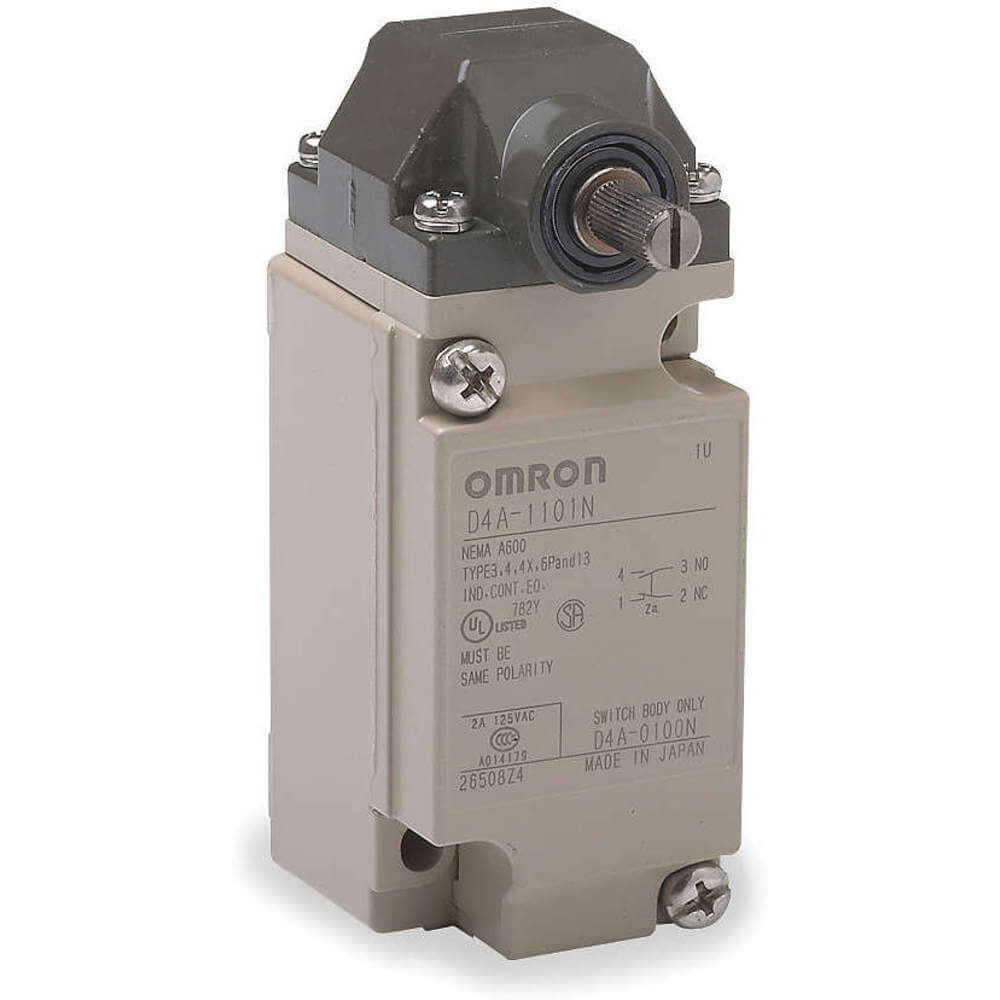

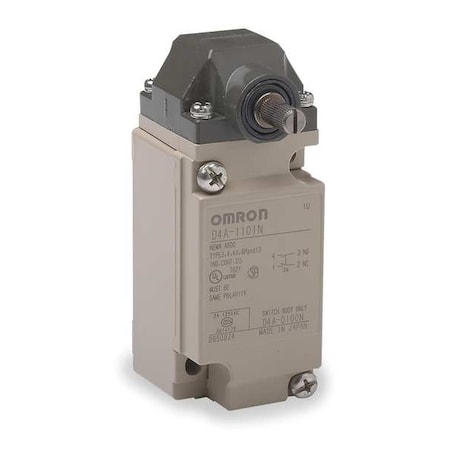

Omron Automation D4A-1102-N Limit Switch, Gp, Spdt, Side Roller Lever, 10A, 600Vac

Omron Automation D4A-1102-N Limit Switch, Gp, Spdt, Side Roller Lever, 10A, 600Vaczoom

Attributes

Key Value
AC Contact Rating10A @ 600V
AC Contact Rating - Lim.10 A @ 600V, 10A @ 600V
Actuator Location (Limi.Side
Actuator Location - Lim.Side
Actuator StyleRotary Head, No Lever
Actuator Style - Limit .Rotary, No Lever, No Le.
Actuator TypeSide Rotary - No Lever
Alternate Mfr Part Numb.D4A1102N
Base Product NumberD4A
Basic Actuator Style (L.Rotary
Basic Actuator Style - .Rotary
Body Depth - Limit Swit.1.73 in
Body Height - Limit Swi.2.97 in
Body MaterialAluminum
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.1.65 in
Boot Sealed Actuator (L.No
Boot Sealed Actuator - .No
BrandOmron
Cable Specifications-
CategorySwitches
CircuitSPDT (DB/DM)
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating10 A
Current Rating (Amps)10A (AC), 6A (DC)
Current Stock22
DC Contact Rating - Lim.Not Rated
Depth2.32" to 2.53"
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT (DB/DM) Cha.
Differential Travel4?
Digi-Key Part NumberZ7010-ND
Electrical ConnectionScrew Terminals
Electrical Life1,000,000 Cycles
Features-
Head TypeSide Rotary Head
Height4.11"
Ingress ProtectionIP67 - Dust Tight, Wate.
International ShippingNo
IP RatingIP67, 67
ItemHeavy Duty Limit Switch
Lead TimeExpected to ship in 1-2.
Limit Switch StyleHeavy Duty Limit Switch
Main Body SizeSmall
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.D4A-1102-N
Manufacturer Standard L.26 Weeks
Mechanical Life50,000,000 Cycles
Mechanical Operation Fr.300
MfrOmron Automation and Sa.
Mounting - Limit SwitchSurface
Mounting Hole - Limit S.(2) 0.20 in dia
Mounting Hole Pattern -.2 Hole Diagonal
Mounting Hole Spacing -.2.34 in x 1.16 in
Mounting systemFront / rear mounting
Mounting TypeChassis Mount
MovementCCW, CW, CW/CCW
MpnD4A1102N
NEMA Rating3, 4, 4X, 6P, 12, 13, I.
Operating Force0.4 N-m, 0.39 Nm, 40gfm
Operating Position-
Operating Temp. Range-40 Degrees to 212 Deg.
Operating Temperature-20?C ~ 100?C
Overtravel75?
PackageBulk
Pretravel7?
Product StatusActive
Release Force5.103gfm
SeriesD4A, D4A Series
SKUZO-G2625393
StandardsUL, CSA
Stem Thread - Limit Swi.No Stem
SubCategoryElectrical
Switch FunctionOn-Mom
TerminationScrew
Termination StyleScrew Terminal
TravelTotal Travel 82 Degrees
UPC4536853200640
Voltage Rating250 V
Voltage Rating - AC125 V
Voltage Rating - DC30 V
Width1.65"
Wiring Entry1/2 in NPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMisumi USAD4A-1102N81.01In Stock16OMRON81.0 @ 1
Onlinecomponents.comD4A1102N146.4612OMRON INDUSTRIAL146.46 @ 1
grainger.caWWG2CLR1174.636181661In StockOMRON0.72174.63618166 @ 1
thumbzoomZoroG2625393177.991In StockOmron0.72177.99 @ 1
thumbzoomsimsupply.comZO-G2625393185.89122Omron185.89 @ 1
Master ElectronicsD4A1102N190.412Omron Automation190.4 @ 1
thumbzoomDigi-Key1794962195.591In StockOmron Automation and Safety195.59 @ 1
Airline HydraulicsOMRON D4A-1102-N196.01102Omron196.0 @ 1
thumbzoomsustainablesupply.comC1177393205.961In StockOmron0.72205.96 @ 1
us.rs-online.com70179483218.03142Omron Automation218.03 @ 1
thumbzoomNewark37B9843262.451295OMRON INDUSTRIAL AUTOMATION262.45 @ 1
thumbzoomRaptor SuppliesAB9EQL271.4937031In StockOMRON271.493703 @ 1
