Omron D4A-1109-N

B008L5LJD8

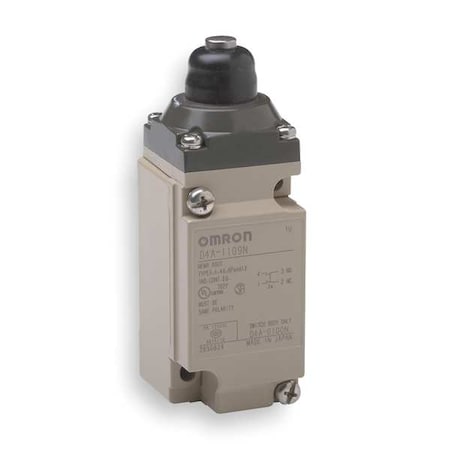

Omron D4A-1109-N General Purpose Limit Switch, Top Plunger, Standard Type, 1/2-14 NPT Conduit Size, Single Pole Double Throw, Double Break

Omron D4A-1109-N General Purpose Limit Switch, Top Plunger, Standard Type, 1/2-14 NPT Conduit Size, Single Pole Double Throw, Double Breakzoom

Attributes

Key Value
AC Contact Rating10A @ 600V
AC Contact Rating - Lim.10A @ 600V
Actuator LocationTop
Actuator Location - Lim.Top
Actuator StylePlunger
Actuator Style - Limit .Plunger
Actuator TypeRound (Pin Plunger)
Alternate Mfr Part Numb.D4A1109N
AvailabilityIn Stock, ships within .
Base Product NumberD4A
Basic Actuator Style - .Plunger
Body Depth - Limit Swit.1.73 in
Body Height - Limit Swi.2.97 in
Body Style - Limit Swit.Miniature
Body Width - Limit Swit.1.65 in
Boot Sealed Actuator (L.No
BrandOmron
CategorySwitches
CircuitSPDT (DB/DM)
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating (Amps)10A (AC), 6A (DC)
Current Stock29
DC Contact Rating - Lim.Not Rated
Depth1.73"
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT (DB/DM) Cha.
Differential Travel0.016" (0.4mm)
Digi-Key Part NumberZ11916-ND
Electrical Life1,000,000 Cycles
Features-
Head TypeTop Plunger Head
Height4.59"
Ingress ProtectionIP67 - Dust Tight, Wate.
International ShippingNo
ItemHeavy Duty Limit Switch
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.D4A-1109-N
Manufacturer Standard L.26 Weeks
MaterialHAWA
Mechanical Life-
MfrOmron Automation and Sa.
Mounting - Limit SwitchSurface
Mounting TypeChassis Mount
MpnD4A1109N
NEMA RatingNo Nema Rating
Number of Poles1
Operating Force1800gf
Operating Position1.812" (46.0mm)
Operating Temperature-20?C ~ 100?C
Overtravel0.201" (5.1mm)
PackageBulk
Part StatusActive
Pretravel0.063" (1.6mm)
Product StatusActive
Release Force500gf
SeriesD4A
SKUCU-32434C5234
StandardsCSA, UL
SubCategoryElectrical
Switch FunctionOn-Mom
Termination StyleScrew Terminal
Voltage Rating - AC125 V
Voltage Rating - DC30 V
Width1.65"
Wiring Entry1/2 in NPT

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00FV1UYR2153.11In Stock2Omron Industrial153.1 @ 1
Mouser653-D4A-1109-N165.3713Omron165.37 @ 1
thumbzoomZoroG3453195170.99198Omron0.81170.99 @ 1
thumbzoomComponent Electronics194-34173.081In StockOmron Electronics173.08 @ 1
thumbzoomsimsupply.comCU-32434C5234178.961In StockOmron178.96 @ 1
thumbzoomMRO Supply6163794182.481In StockOmron182.48 @ 1
Airline HydraulicsOMRON D4A-1109-N185.01In StockOmron185.0 @ 1
thumbzoomsustainablesupply.comC1177396189.11In StockOmron0.81189.1 @ 1
Master ElectronicsD4A1109N192.081In StockOMRON INDUSTRIAL192.08 @ 1
VericalD4A1109N192.2313Omron192.23 @ 1
thumbzoomDigi-Key1794970195.81In StockOmron Automation and Safety195.8 @ 1
us.rs-online.com70961805204.411In StockOmron Automation204.41 @ 1
Newark37B9848247.72135OMRON INDUSTRIAL AUTOMATION247.72 @ 1
thumbzoomRaptor SuppliesAB9EQP262.0856161In StockOMRON262.085616 @ 1
