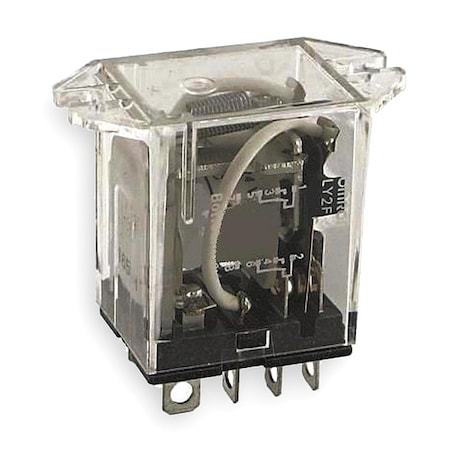

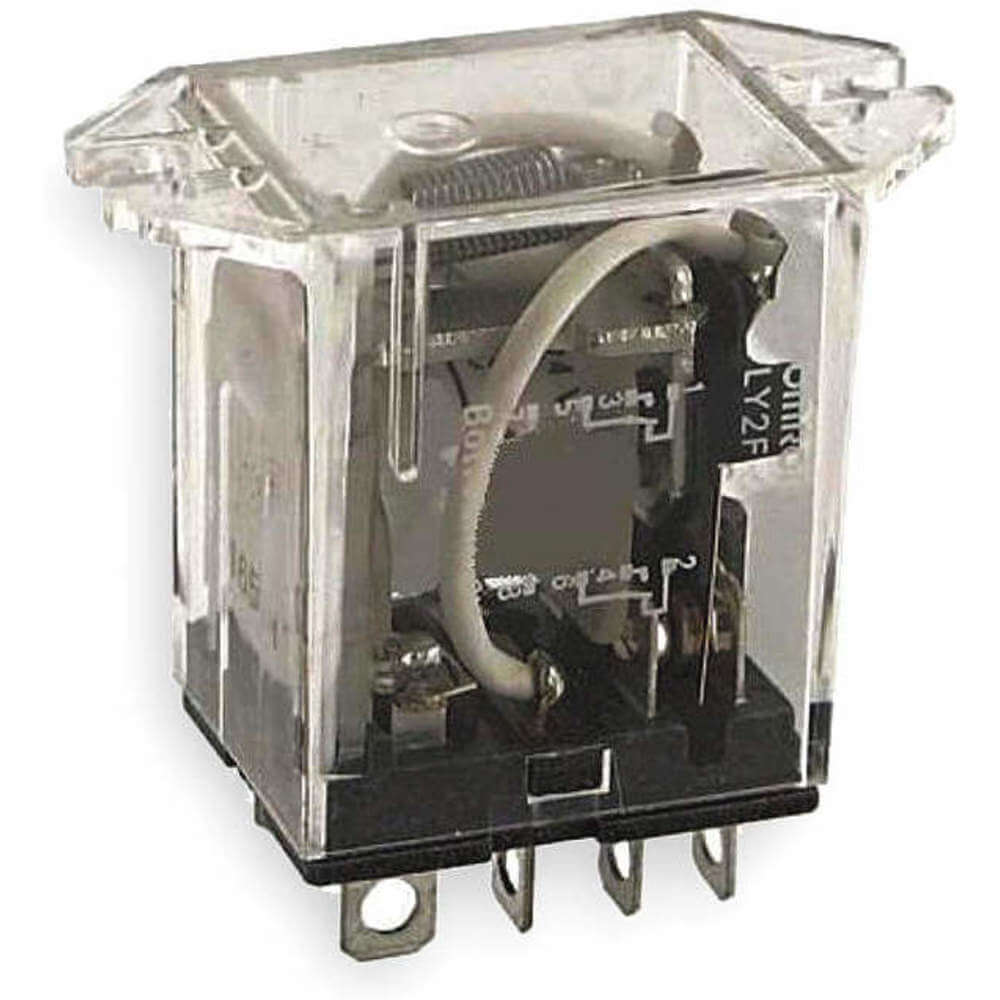

Omron LY2F-AC220/240

B00270UO3E

Relay, 8Pin, DPDT, 10A, 240VAC

Relay, 8Pin, DPDT, 10A, 240VACzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120V
Alternate Mfr Part Numb.LY2FAC220240
Body Depth1.39 in
Body Depth - Relay1.14 in
Body Height1.73 in
Body Height - Relay1.4 in
Body Width0.88 in
Body Width - Relay0.89 in
CategoryRelays
Coil Current4.6 mA, 25 ms
Coil Insulation192 VAC
Coil Resistance180 Ohms
Coil Type-
Coil Voltage120 VAC ; 110/115/120/1.
Coil Volts240V AC
Contact Current Rating10 A
Contact FormDPDT, 250VAC, 125VDC - .
Contact Form - RelayDPDT
Contact MaterialGeneral Purpose, Silver.
Contact Rating10A @ 110VAC/24VDC
Contact Rating (Current)4.6 mA
Contact Resistance50 mOhms
Contact Voltage Rating300
Control Voltage120
Current Rating10 A
DC Contact Rating - Rel.10A @ 24V
Dielectric Rating2000 VAC
Electrical ConnectionPlug-In Terminal
FeaturesPlug In
FunctionGeneral Purpose
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Maximum Operating Tempe.55 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting - RelayTop Flange
Mounting Hole Diameter2 in
Mounting Type240VAC, Panel Mount Fla.
Must Operate Voltage72 VAC
Must Release Voltage-25?C ~ 55?C
Number of Pins8
Number of Pins - Relay8
Operate Time25 ms
Operating TemperatureSilver Alloy
Overall Depth1.64 in
Overall Height - Relay1.65 in
Package-
Part StatusChassis Mount
Pins8
Power Consumption - Rel.1.1 VA
Power Rating1100 VA ; 240 W
Primary TypePower Relays
Push To TestManual
Relay TypeElectromechanical, 10 A
Release Time18.79 kOhms
Seal Rating-
SeriesBulk, LY Series
StandardsUL ; CSA ; SEV, CE Cert.
Switching VoltageNon Latching
TerminationQC Tabs
Termination Style-
Voltage Rating250 ; 125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomOMRON ELECTRONICS LY2F-AC220/2407.141In StockOmron Electronics7.14 @ 1
Onlinecomponents.comLY2FAC2202407.521In StockOmron Industrial7.52 @ 1
thumbzoomCarlton Bates Company403123481158.891In StockOMRON8.89 @ 1
thumbzoomComponent Electronics711-240V-2211.5413Omron Electronics11.54 @ 1
thumbzoomDigi-KeyZ2264-ND13.061In StockOmron Automation and Safety13.06 @ 1
thumbzoomsustainablesupply.comC116871213.691In StockOmron0.313.69 @ 1
AmazonTPB00HPLZYVW14.461In Stock2OMRON14.46 @ 1
thumbzoomNewark36K342915.69188OMRON INDUSTRIAL AUTOMATION15.69 @ 1
us.rs-online.com7017881515.721793Omron Automation15.72 @ 1
Master ElectronicsLY2FAC22024016.191381Omron Automation16.19 @ 1
thumbzoomZoroG143911216.72In StockOmron0.316.7 @ 2
thumbzoomRaptor SuppliesAB4HYB17.1848431In StockOMRON17.184843 @ 1
