MJN1CF-DC24

B00DEDVM8O

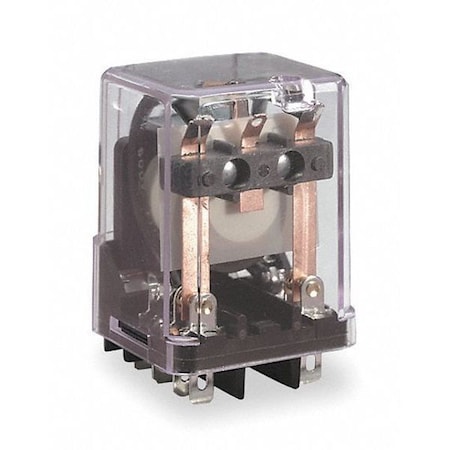

Omron Automation MJN1CF-DC24, RELAY; E-MECH; GEN PURP; SPDT; CUR-RTG 10A; CTRL-V 24DC; VOL-RTG 120/240 AC, 28 DC

Omron Automation MJN1CF-DC24, RELAY; E-MECH; GEN PURP; SPDT; CUR-RTG 10A; CTRL-V 24DC; VOL-RTG 120/240 AC, 28 DCzoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 240V
Alternate Mfr Part Numb.MJN1CFDC24
Body Depth - Relay1.40 in
Body Height - Relay1.90 in
Body Width - Relay1.53 in
Coil Resistance470 Ohms
Coil Voltage24 VDC
Coil Volts24VDC
Contact Current Rating10 A
Contact FormSPDT
Contact Form - RelaySPDT
Contact Material3?16 in. Dia. Ag-Alloy,.
Contact Rating10A @ 240VAC/28VDC
Contact Voltage Rating240 VAC
Control Voltage24
Country of Origin (subj.China
Current Rating10 A
DC Contact Rating - Rel.10A @ 28V
Dielectric Rating750 VAC
Electrical Connection0.187" Solder Terminals
FeaturesGeneral Purpose Relays,.
FunctionGeneral Purpose
HP @ 120V1/3
HP @ 240V1/2
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Maximum Operating Tempe.70 ?C
Minimum Operating Tempe.-45 ?C
MountingSide
Mounting - RelaySide Flange
Mounting TypePanel Mount
Number of Pins - Relay5
Overall Height - Relay2.90 in
Pins5
Power Consumption - Rel.1.2W
Power Rating2400 VA ; 280 W
Primary TypePower Relays
Relay TypeElectromechanical
SeriesMJN Series
StandardsUL ; CSA
Status IndicatorNo
TerminationQC Tabs
Voltage Rating240 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comMJN1CFDC2415.22150Omron Industrial15.22 @ 1
thumbzoomZoroG038376515.661In StockOmron15.66 @ 1
thumbzoomDigi-KeyMJN1CF-DC24-ND24.351In StockOmron Automation and Safety24.35 @ 1
Grainger5ZH6630.011OMRON30.0 @ 1
us.rs-online.com7017887530.63112Omron Automation30.63 @ 1
Newark89C720334.861213OMRON INDUSTRIAL AUTOMATION34.86 @ 1
Airline HydraulicsOMRON MJN1CF-DC2438.111In StockOmron38.11 @ 1
