Omron LY2NDC24

B010LBYWZ6

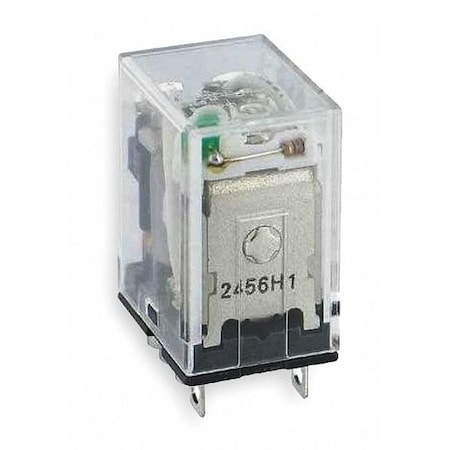

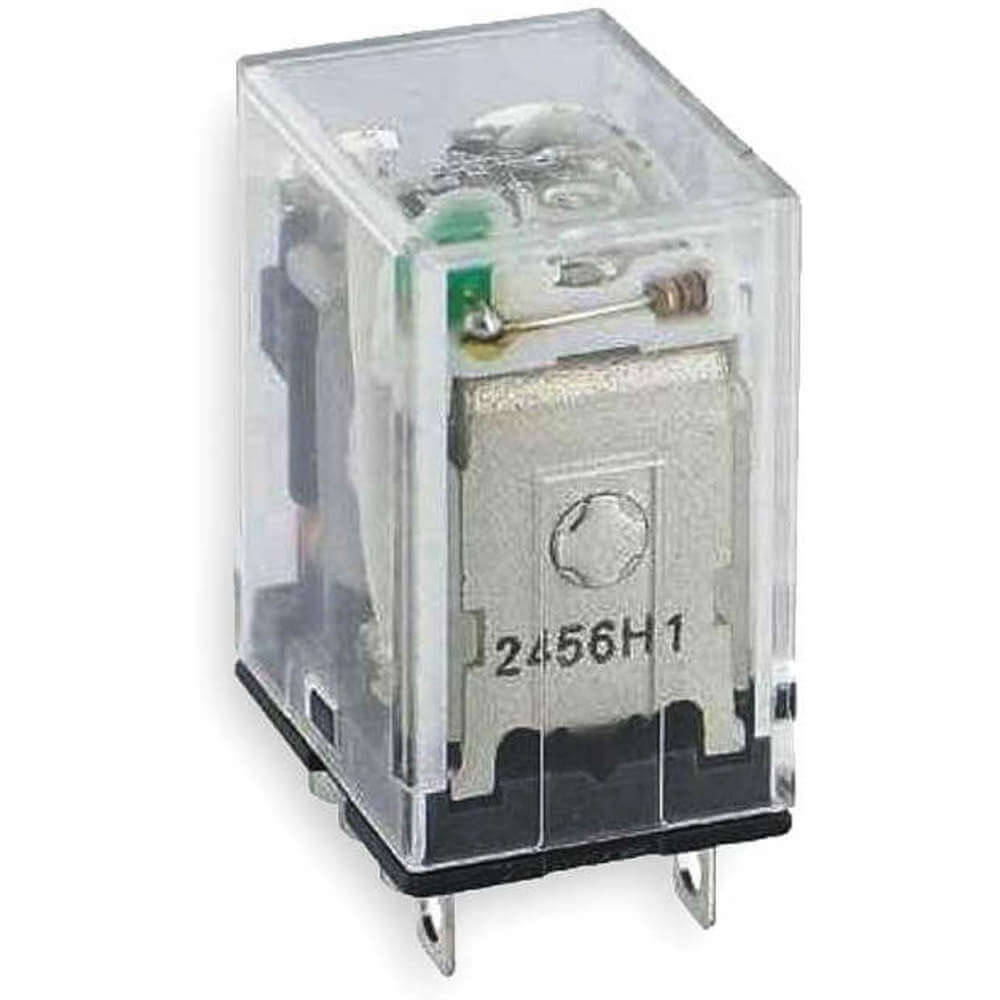

Omron Industrial LY2NDC24 Medium Power Relays (3 Amps to 19.9 Amps)

Omron Industrial LY2NDC24 Medium Power Relays (3 Amps to 19.9 Amps)zoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120V, 10 A @ 120V
Alternate Mfr Part Numb.LY2NDC24
Base Product NumberLY2N-DC
Base Type - Plug In Rel.Square
Body Depth1.42 in
Body Depth - Relay1.10 in, 1.1 in
Body Height1.1 in
Body Height - Relay1.42 in
Body Width0.85 in
Body Width - Relay0.85 in
BrandOmron
CategoryRelays
Coil Current36.9 mA
Coil Insulation-
Coil Resistance650 Ohms
Coil TypeNon Latching
Coil Voltage24VDC, 24 VDC
Coil Volts24V DC
Contact Current Rating10 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Alloy
Contact Rating10A @ 120VAC/24VDC
Contact Rating (Current)10 A
Contact Resistance50 mOhms
Contact Voltage Rating300
Control Voltage24
Current Rating10 A
Current Stock797
DC Contact Rating - Rel.10 A @ 24V, 10A @ 24V
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Dielectric Rating2000 VAC
Digi-Key Part NumberZ2604-ND
FeaturesLighted Indicator, Led .
Flat Pin Width0.197 in
FunctionGeneral Purpose
HP @ 120V1/3 hp
HP @ 240VNot Rated
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Lead TimeExpected to ship in 1-2.
ManufacturerOmron Automation and Sa.
Manufacturer Product Nu.LY2N-DC24
Manufacturer Standard L.26 Weeks
Maximum Operating Tempe.55 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting - RelayPlug In, Plug-In
Mounting TypeSocket Mount, Socketable
MpnLY2N-DC24
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Number of Pins8
Number of Pins - Relay8
Operate Time25 ms
Operating Temperature-25?C ~ 55?C
Overall Depth1.67 in
Overall Height - Relay1.67 in
PackageTray
Power Consumption - Rel.0.9 W
Primary TypePower Relays
Product StatusActive
Push To TestManual
Relay TypeElectromechanical, Gene.
Release Time25 ms
Seal Rating-
SeriesLY Series, LY
SKUZO-G0807414
Socket Code - RelayD
Special FeaturesLED Indicator ; Surge S.
StandardsUL, CSA, VDE, SEV, CE, .
Status IndicatorLED
SubCategoryElectrical
Switching Voltage250VAC, 125VDC - Max
TerminationQC Tabs
Termination StylePlug In
Voltage Rating250 ; 125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comLY2NDC2410.58291Omron10.58 @ 2
thumbzoomCarlton Bates Company4031234800710.8412OMRON10.84 @ 1
thumbzoomZoroG080741412.3911155Omron0.0812.39 @ 1
Master ElectronicsLY2NDC2413.51354Omron Automation13.5 @ 1
thumbzoomComponent Electronics710-24V-17713.8511Omron Electronics13.85 @ 1
grainger.caWWG1YCP114.37095881In StockOMRON0.0814.3709588 @ 1
KeleLY2N-DC2415.6133Omron15.6 @ 1
thumbzoomsustainablesupply.comC116865017.381In StockOmron0.0817.38 @ 1
thumbzoomNewark67K941318.511397OMRON INDUSTRIAL AUTOMATION18.51 @ 1
thumbzoomDigi-Key36949318.8612313Omron Automation and Safety18.86 @ 1
us.rs-online.com7017882420.051723Omron Automation20.05 @ 1
Airline HydraulicsOMRON LY2N-DC2421.317Omron21.3 @ 1
thumbzoomaoptec.comLY2N-DC2421.313Omron Automation21.3 @ 1
thumbzoomsimsupply.comZO-G080741421.351797Omron21.35 @ 1
thumbzoomRaptor SuppliesAB4HVH21.57602851In StockOMRON21.5760285 @ 1
RS Delivers828-732825.2241226Omron25.224 @ 1
