Omron G5V-2-H1 DC12

B005T6WFX0

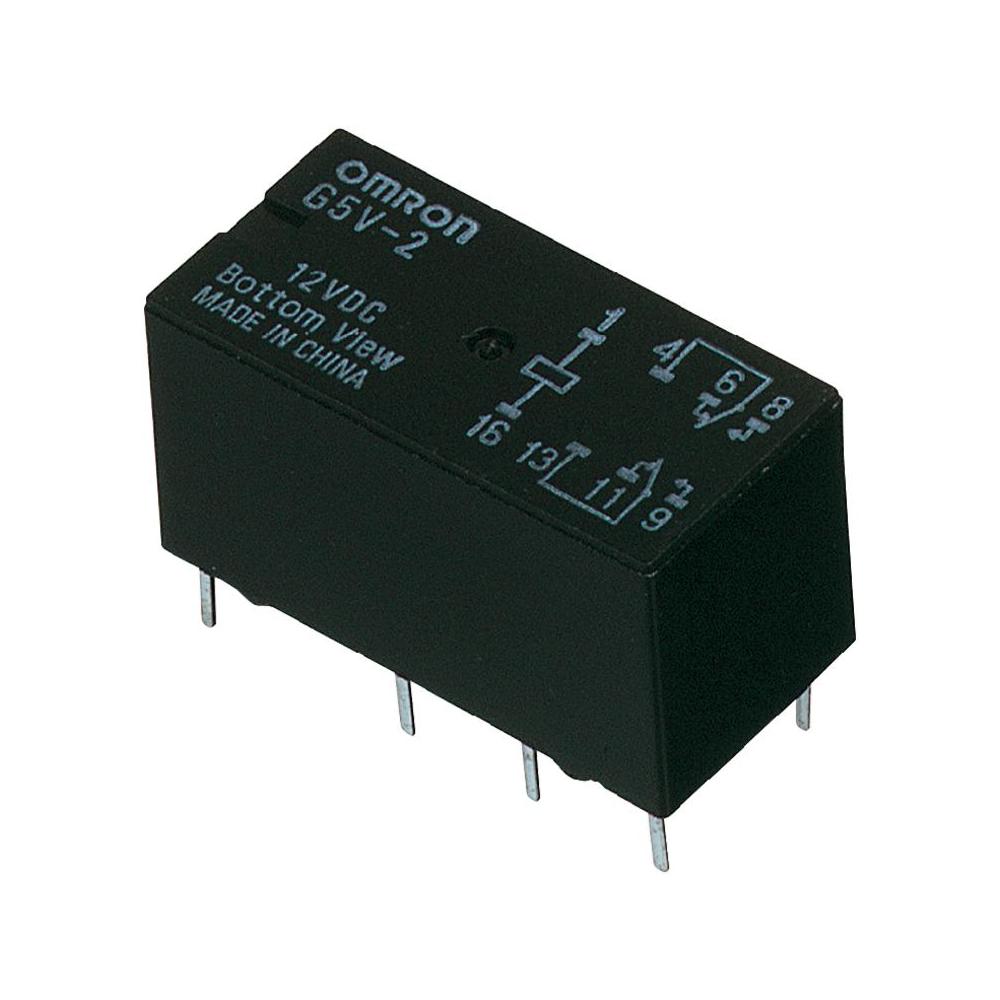

Omron Electronic Components Relay, Signal, Dpdt, 24Vdc, 1A - G5V-2-H1 DC12

Omron Electronic Components Relay, Signal, Dpdt, 24Vdc, 1A - G5V-2-H1 DC12zoom

Attributes

Key Value
Alternate Mfr Part Numb.G5V2H1DC12
Alternate Part No.653-G5V-2-H1-DC12
Base Product NumberG5V
BrandOmron Electronics
Case StylePCB Direct Mount
CategoryRelays
Coil Current12.5 mA
Coil Insulation-
Coil Resistance960 Ohms
Coil TypeNon-Latching, Non Latch.
Coil Voltage12 V, 12 VDC, 12VDC
Contact Current Rating2 A
Contact FormDPDT, DPDT (2 Form C)
Contact MaterialAg (Au clad), Silver (A.
Contact Rating0.5 A at 125 VAC, 2 A a.
Contact Rating (Current)1 A
Contact Voltage Rating125 VAC
Control Voltage12 V
Current1
Current Rating1 A
Dielectric Rating1000 VAC @ 50?60 Hz for.
Dimensions0.807 L x 0.398 W x 0.4.
Features-
FunctionSensitive
ManufacturerOmron
Manufacturer Part #G5V-2-H1-DC12
Manufacturer Part No.G5V-2-H1-DC12
Maximum Operating Tempe.70 ?C
Maximum Switching Curre.2 A
MfrOmron Electronics Inc-E.
Minimum Operating Tempe.-25 ?C
Mounting Diameter0.039 in. Dia. (Hole)
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Must Operate Voltage9 VDC
Must Release Voltage0.6 VDC
Number of Pins8
Operate Time7 ms
Operating Temperature-25?C ~ 70?C
PackageTube
Part # Aliases374733 DC12 DC12G5V2H11.
Power Consumption150 mW
Power Rating62.5 VA ; 24 W
Primary TypeSignal Relays
ProductLow Profile Relays
Product CategoryLow Signal Relays - PCB
Product HeaderLow Signal Relay
Product StatusActive
Relay TypeElectromechanical, Gene.
Release Time3 ms
Seal RatingSealed - Fully
SeriesG5V-2, G5V Series
StandardsUL ; CSA ; FCC
Switching Voltage125VAC, 125VDC - Max
Termination StyleSolder Pin, PC Pin
TypeDPDT, Miniature
Voltage (V)12
Voltage Rating125 V
Weight (lbs)(0.01)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomOMRON ELECTRONIC COMPONENTS G5V-2-H1-DC122.2825303OMRON ELECTRONIC COMPONENTS2.28 @ 25
thumbzoomNewark67K93522.441322OMRON ELECTRONIC COMPONENTS2.44 @ 5
Mouser653-G5V-2-H1-DC122.641543Omron2.64 @ 5
Onlinecomponents.comG5V-2-H1-DC122.6510400Omron2.65 @ 10
ArrowG5V-2-H1 DC122.71615Omron2.716 @ 5
HotendaH38471713.18110484Omron3.18 @ 5
thumbzoomBD EnterprisesG5V-2-H1 DC123.45115Omron0.013.45 @ 5
us.rs-online.com701762383.7514461Omron Electronic Components3.75 @ 5
thumbzoomswatee.comG5V-2-H1-DC124.1311267Omron4.13 @ 5
Digi-Key2778454.23215Omron Electronics Inc-EMC Div4.232 @ 5
thumbzoomRadwellG5V2H1DC126.0117OMRON6.0 @ 5
AmazonTPB005T6WFX013.2152OMRON ELECTRONIC COMPONENTS13.2 @ 5
