FAIRCHILD (ON SEMICONDUCTOR) FCH023N65S3L4

B0731M9MJ7

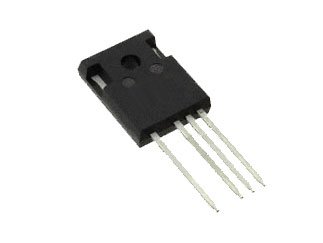

FAIRCHILD (ON SEMICONDUCTOR) FCH023N65S3L4 N-Channel 650 V 23 mOhm SuperFet III Mosfet - TO-247-4 - 450 item(s)

FAIRCHILD (ON SEMICONDUCTOR) FCH023N65S3L4 N-Channel 650 V 23 mOhm SuperFet III Mosfet - TO-247-4 - 450 item(s)zoom

Attributes

Key Value
Base Product NumberFCH023
CaseTO247
CategoryDiscrete Semiconductor .
Current - Continuous Dr.75A (Tc)
Drain current65.8A
Drain to Source Voltage.650 V
Drain-source voltage650V
Drive Voltage (Max Rds .10V
FET Feature-
FET TypeN-Channel
Gate charge222nC
Gate Charge (Qg) (Max) .222 nC @ 10 V
Gate-source voltage?30V
Input Capacitance (Ciss.7160 pF @ 400 V
Kind of channelenhanced
Kind of packageTube
Manufactureronsemi
Mfronsemi
MountingTHT
Mounting TypeThrough Hole
On-state resistance19.5m?
Operating Temperature-55?C ~ 150?C (TJ)
PackageTube
Package / CaseTO-247-4
Polarisationunipolar
Power dissipation595W
Power Dissipation (Max)595W (Tc)
Product StatusActive
Pulsed drain current300A
Rds On (Max) @ Id, Vgs23mOhm @ 37.5A, 10V
SeriesSuperFET? III
Supplier Device PackageTO-247
TechnologyMOSFET (Metal Oxide)
Type of transistorN-MOSFET
Vgs (Max)?30V
Vgs(th) (Max) @ Id4.5V @ 7.5mA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics607993711.592450450ON Semiconductor11.592 @ 450
RS Delivers172-342113.29121450onsemi13.2912 @ 450
Digi-Key615274414.042161450onsemi12.49152 @ 500
TMEFCH023N65S3L414.671450ONSEMI14.67 @ 450
thumbzoomNewark54AH622621.261450ONSEMI21.26 @ 450
