FAIRCHILD (ON SEMICONDUCTOR) FQP13N50

mpnFQP13N50
brandname: ON Semiconductor
manufacturername: ON Semiconductor

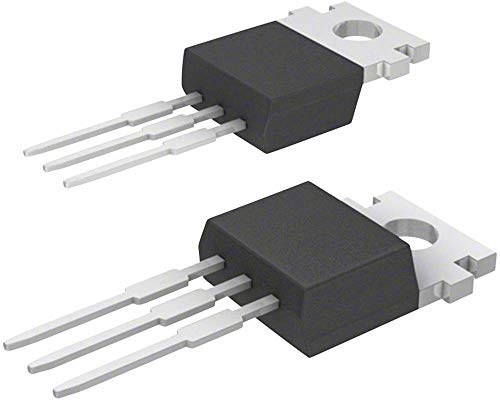

FAIRCHILD (ON SEMICONDUCTOR) FQP13N50 N-Channel 500 V 0.43 ? Flange Muont Mosfet - TO-220 - 5 item(s)

FAIRCHILD (ON SEMICONDUCTOR) FQP13N50 N-Channel 500 V 0.43 ? Flange Muont Mosfet - TO-220 - 5 item(s)

zoom

Brand: FAIRCHILD (ON SEMICONDUCTOR)
PartNumber: FQP13N50
Model: FQP13N50
PackageQuantity: 1
Manufacturer: FAIRCHILD (ON SEMICONDUCTOR)
Label: FAIRCHILD (ON SEMICONDUCTOR)

Attributes

Key	Value
Case	SOT78
Category	Discrete Semiconductor .
Current - Continuous Dr.	12.5A (Tc)
Description	POWER FIELD-EFFECT TRAN.
Detailed Description	N-Channel 500 V 12.5A (.
Digi-Key Part Number	2156-FQP13N50-ND
Drain to Source Voltage.	500 V
Drive Voltage (Max Rds .	10V
Drive Voltage (Max Rds .	10V
FET Feature	-
FET Type	N-Channel
Gate Charge (Qg) (Max) .	60 nC @ 10 V
Input Capacitance (Ciss.	2300 pF @ 25 V
Manufacturer	Fairchild Semiconductor
Manufacturer Product Nu.	FQP13N50
Mfr	ON Semiconductor, Fairc.
Mounting Type	Through Hole
Operating Temperature	-55?C ~ 150?C (TJ)
Package	Bulk
Package / Case	TO-220-3
Part Status	Active
Power Dissipation (Max)	170W (Tc)
Product Status	Active
Rds On (Max) @ Id, Vgs	430mOhm @ 6.25A, 10V
Series	QFET?
SKU	527353
Supplier Device Package	TO-220-3
Technology	MOSFET (Metal Oxide)
Type	Transistor N Channel MO.
Vgs (Max)	?30V
Vgs(th) (Max) @ Id	5V @ 250?A

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H1823516	2.15	1	848		Fairchild Semiconductor		2.15 @ 1
	Arrow	FQP13N50	2.684	1	1000		ON Semiconductor		2.684 @ 1
	Newark	81AC8730	2.83	50	35		ONSEMI		2.83 @ 50
	Mouser	512-FQP13N50	2.98	1	1130		ON Semiconductor		2.98 @ 1
	Radwell	FQP13N50	4.04	1	100		FAIRCHILD SEMICONDUCTOR		4.04 @ 1
	Little Diode	FQP13N50	5.9331285	1	11		Fairchild Semiconductor		5.9331285 @ 1
	Digi-Key	13452516	13.0	1	100		Fairchild Semiconductor		13.0 @ 1
	AmazonSC	B0731PG923	14.27	1	100		FAIRCHILD (ON SEMICONDUCTOR)		14.27 @ 1
