Generic ISL9N302AP3

B09D3ZHTNB

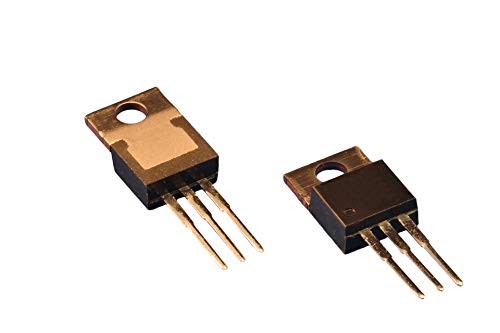

ISL9N302AP3 - Transistor 3 TO-220 9N302

ISL9N302AP3 - Transistor 3 TO-220 9N302zoom

Attributes

Key Value
CategoryDiscrete Semiconductor .
Current - Continuous Dr.75A (Tc)
DescriptionMOSFET N-CH 30V 75A TO2.
Detailed DescriptionN-Channel 30 V 75A (Tc).
Digi-Key Part Number2156-ISL9N302AP3-FS-ND
Drain to Source Voltage.30 V
Drive Voltage (Max Rds .4.5V, 10V
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .300 nC @ 10 V
Input Capacitance (Ciss.11000 pF @ 15 V
ManufacturerFairchild Semiconductor
Manufacturer Product Nu.ISL9N302AP3
MfrFairchild Semiconductor
Mounting TypeThrough Hole
Operating Temperature-55?C ~ 175?C (TJ)
PackageTube
Package / CaseTO-220-3
Power Dissipation (Max)345W (Tc)
Product StatusObsolete
Rds On (Max) @ Id, Vgs2.5mOhm @ 75A, 10V
SeriesUltraFET?
Supplier Device PackageTO-220-3
TechnologyMOSFET (Metal Oxide)
Vgs (Max)?20V
Vgs(th) (Max) @ Id3V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key115296281.227244094492541344Fairchild Semiconductor1.22724409449 @ 254
thumbzoomExcessParts.NetISL9N302AP32.041115FAIRCHILD2.04 @ 1
RadwellISL9N302AP34.921In StockFAIRCHILD SEMICONDUCTOR4.92 @ 1
