ON Semiconductor LM324ANG

mpnLM324ANG
brandname: ON Semiconductor
manufacturername: ON Semiconductor

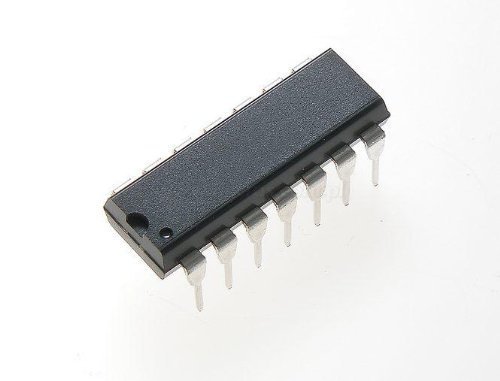

LM324ANG

LM324ANG

zoom

Brand: ON Semiconductor
PartNumber: LM324ANG
PackageQuantity: 1
Manufacturer: ON Semiconductor
Label: ON Semiconductor

Attributes

Key	Value
Amplifier Type	Quad Operational, Gener.
Category	Integrated Circuits (IC.
Channel Separation	-120 dB
Common Mode Rejection R.	70 dB
Current - Input Bias	45 nA
Current - Output / Chan.	40 mA
Current - Supply	1.4mA
Dimensions	19.69 x 7.11 x 4.95 mm
Gain Bandwidth	1 MHz
Gain Bandwidth Product	1 MHz
Height	0.195" (4.95mm)
Input Bias Current	Maximum of -100 nA
Input Offset Current	Maximum of 75 nA
Input Offset Voltage	5 mV
Input Voltage	-0.3 to 32 V
Input Voltage Range	0 to 28.3 V
Length	0.775" (19.69mm)
Maximum Operating Tempe.	+70 ?C
Mfr	ON Semiconductor
Minimum Operating Tempe.	0 ?C
Mounting Type	Through Hole
Number of Amplifiers	Quad
Number of Channels per .	4
Number of Circuits	4
Number of Pins	14
Operating Temperature	0?C ~ 70?C
Output Current	40 mA
Output Type	-, Rail to Rail
Package	Tube
Package / Case	14-DIP (0.300", 7.62mm)
Package Type	PDIP
Part Status	Obsolete
Product Header	Single Supply Quad Oper.
Series	LM Amplifier Series, -
Slew Rate	0.6V/?s, 0.6 V/?s
Supplier Device Package	14-PDIP
Supply Current	1.4 mA
Temperature Operating R.	0 to +70 ?C
Typical Single Supply V.	3 to 32 V
Voltage - Input Offset	2 mV
Voltage - Supply, Singl.	3V ~ 32V, ?1.5V ~ 16V
Voltage, Input, High Le.	28.3 V
Voltage, Input, Low Lev.	0 V
Voltage, Output, High L.	3.5 V
Voltage, Output, Low Le.	5 mV
Width	0.28" (7.11mm)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	70099808	0.4	1	250		ON Semiconductor		0.4 @ 1
