MSB92AWT1G

Transistors Bipolar - BJT 500mA 300V PNP (1 piece)

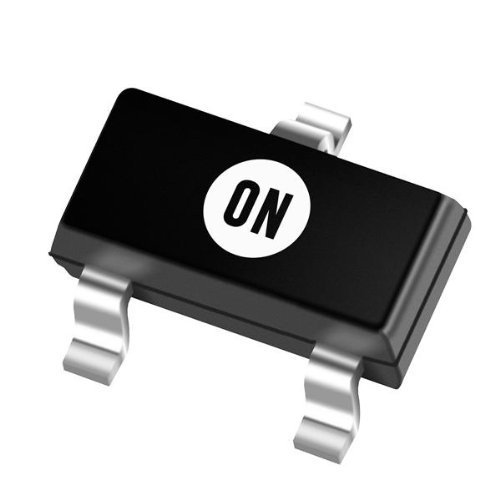

Transistors Bipolar - BJT 500mA 300V PNP (1 piece)zoom

Attributes

Key Value
Alternate Part No.863-MSB92AWT1G
Base Product NumberMSB92
BrandON Semiconductor
CategoryDiscrete Semiconductor .
Collector- Base Voltage.- 300 V
Collector- Emitter Volt.- 300 V
Collector-Emitter Satur.- 0.5 V
ConfigurationSingle
Continuous Collector Cu.0.5 A
Current - Collector (Ic.500 mA
Current - Collector Cut.250nA (ICBO)
DC Collector/Base Gain .120
DC Current Gain (hFE) (.120 @ 1mA, 10V
Emitter- Base Voltage V.5 V
Frequency - Transition50MHz
Gain Bandwidth Product .50 MHz
ManufacturerON Semiconductor
Manufacturer Part No.MSB92AWT1G
Maximum DC Collector Cu.0.5 A
Maximum Operating Tempe.+ 150 C
Maximum Power Dissipati.150 mW
Mfronsemi
Minimum Operating Tempe.- 55 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Operating Temperature150?C (TJ)
PackageTape & Reel (TR)
Package / CaseSC-70, SOT-323
Package/CaseSC-70-3
PackagingReel
Power - Max150 mW
Product CategoryTransistors Bipolar - B.
Product StatusActive
SeriesMSB92AW, -
Supplier Device PackageSC-70-3 (SOT323)
Transistor PolarityPNP
Transistor TypePNP
Vce Saturation (Max) @ .500mV @ 2mA, 20mA
Voltage - Collector Emi.300 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark45J16970.05460001851ONSEMI0.054 @ 6000
thumbzoomswatee.comMSB92AWT1G0.36814852ON Semiconductor0.368 @ 1
Digi-Key90886080.49218985onsemi0.492 @ 1
