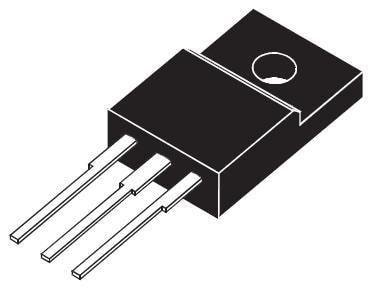

ON Semiconductor NDF11N50ZG

mpnNDF11N50ZG
brandname: ON Semiconductor
manufacturername: ON Semiconductor

NDF11N50ZG

NDF11N50ZG

zoom

Brand: ON Semiconductor
PartNumber: NDF11N50ZG
Size: 1 Piece
PackageQuantity: 1
Manufacturer: ON Semiconductor
Label: ON Semiconductor

Attributes

Key	Value
Alternate Part No.	863-NDF11N50ZG
Base Product Number	NDF11
Brand	ON Semiconductor
Category	Discrete Semiconductor .
Configuration	Single
Current - Continuous Dr.	12A (Tc)
Drain to Source Voltage.	500 V
Drive Voltage (Max Rds .	10V
FET Feature	-
FET Type	N-Channel
Gate Charge (Qg) (Max) .	69 nC @ 10 V
Id - Continuous Drain C.	12 A
Input Capacitance (Ciss.	1645 pF @ 25 V
Manufacturer	ON Semiconductor
Manufacturer Part No.	NDF11N50ZG
Maximum Operating Tempe.	+ 150 C
Mfr	onsemi
Minimum Operating Tempe.	- 55 C
Mounting Style	Through Hole
Mounting Type	Through Hole
Operating Temperature	-55?C ~ 150?C (TJ)
Package	Tube
Package / Case	TO-220-3 Full Pack
Package/Case	TO-220FP-3
Part Status	Obsolete
Pd - Power Dissipation	39 W
Power Dissipation (Max)	39W (Tc)
Product Category	MOSFET
Rds On (Max) @ Id, Vgs	520mOhm @ 4.5A, 10V
Rds On - Drain-Source R.	520 mOhms
Series	ND MOSFET Series, NDF11.
Supplier Device Package	TO-220FP
Technology	MOSFET (Metal Oxide)
Transistor Polarity	N-Channel
Vds - Drain-Source Brea.	500 V
Vgs (Max)	?30V
Vgs - Gate-Source Break.	30 V
Vgs(th) (Max) @ Id	4.5V @ 100?A

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Digi-Key	2401399	0.592857142857	525	175		onsemi		0.592857142857 @ 525
	Newark	74AK0101	0.883	590	113		ONSEMI		0.883 @ 500
	Hotenda	H1823790	1.21	1	185		ON Semiconductor		1.21 @ 1
	us.rs-online.com	70341195	1.22	20	113		ON Semiconductor		1.22 @ 20
	swatee.com	NDF11N50ZG	2.7	1	249		ON Semiconductor		2.7 @ 1
