Best Price Square NL17SZ74USG-ON SEMICONDUCTOR

B00MMZCGD0

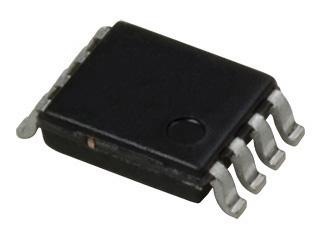

On Semiconductor D-Type Flip Flop, Single, 5Ns, Us8-8 - NL17SZ74USG

On Semiconductor D-Type Flip Flop, Single, 5Ns, Us8-8 - NL17SZ74USGzoom

Attributes

Key Value
Base Product NumberNL17SZ74
CaseUS8
CategoryIntegrated Circuits (IC.
Circuit TypeLow-Voltage TTL
Clock Frequency200 MHz
Current - Output High, .32mA, 32mA
Current - Quiescent (Iq)1 ?A
Dimensions2.10 x 2.40 x 0.80 mm
FunctionSet(Preset) and Reset
Function Type1-Channel, D-Type
Height0.031" (0.8mm)
Input Capacitance7 pF
Input TypeSingle Ended
Kind of integrated circ.D flip-flop
Length0.082 in
Logic FamilyNL17
Logic FunctionD Type
Logic TypeCMOS
ManufacturerONSEMI
Manufacturer series7SZ
Max Propagation Delay @.5ns @ 5V, 50pF
Maximum Operating Tempe.+125 ?C
Maximum Propagation Del.14.5 ns
MfrONSEMI
Minimum Operating Tempe.-55 ?C
MountingSMD
Mounting TypeSurface Mount
Number of Bits per Elem.1
Number of channels1
Number of Circuits1
Number of Elements1
Number of Elements per .1
Number of Pins8
Operating Temperature-55?C ~ 125?C (TA)
Operating temperature-40...85?C
Operating Voltage Range1.5 to 5.5 V
Output TypeComplementary
PackageTape & Reel (TR)
Package / Case8-VFSOP (0.091", 2.30mm.
Package TypeUS8
Part StatusActive
Product HeaderSingle D-Type Flip-Flop
Propagation Delay Test .15 pF
Series17SZ, NL17 Series
Special FeaturesEdge-Triggered
Supplier Device PackageUS8
Supply Current10 ?A
Supply Voltage1.65-5.5 V
Temperature Operating R.-55 to +125 ?C
Triggerpositive-edge-triggered
Trigger TypePositive Edge
Triggering TypeEdge
TypeD-Type
Type of integrated circ.digital
Voltage - Supply1.65V ~ 5.5V
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
RS Delivers162-91230.07923000276ON Semiconductor0.0792 @ 3000
HotendaH25342310.10351276ON Semiconductor0.1035 @ 276
TMENL17SZ74USG0.14510276ONSEMI0.145 @ 276
thumbzoomNewark29X62020.173000276ONSEMI0.17 @ 3000
Digi-Key11402640.235481276onsemi0.23548 @ 276
us.rs-online.com701006750.292250276ON Semiconductor0.2922 @ 276
AmazonTPB06XBXXBWF424.412765ON SEMICONDUCTOR424.4 @ 276
