NTSJ30120CTG

B011NM651G

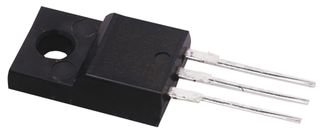

ON SEMICONDUCTOR NTSJ30120CTG DIODE, SCHOTTKY, DUAL, 30A, 120V, TO220 (50 pieces)

ON SEMICONDUCTOR NTSJ30120CTG DIODE, SCHOTTKY, DUAL, 30A, 120V, TO220 (50 pieces)zoom

Attributes

Key Value
Base Part NumberNTST30120CT
Base Product NumberNTSJ30
CategoryDiscrete Semiconductor .
ConfigurationDual Common Cathode
Continuous Forward Curr.15 A
Current - Average Recti.15A
Current - Reverse Leaka.800, 800 ?A @ 120 V
DescriptionDIODE ARRAY SCHOTTKY 12.
Detailed DescriptionDiode Array 1 Pair Comm.
Digi-Key Part NumberNTSJ30120CTGOS-ND
Diode Configuration1 Pair Common Cathode
Diode TypeSchottky
Forward Voltage1.08 V
Lead Free Status / RoHS.RoHS Compliant
Manufactureronsemi
Manufacturer Part NumberNTSJ30120CTG
Manufacturer Product Nu.NTSJ30120CTG
Manufacturer Standard L.4 Weeks
Mfronsemi
Mounting TypeThrough Hole, Surface M.
Operating Temperature -.-40?C ~ 150?C, -40
PackageTube
Package / CaseTO-220-3 Full Pack
Package TypeTO-220FP
PackagingTube
Peak Current2 ?A
Product StatusObsolete
Repetitive Peak Voltage120 V
Reverse Recovery Time20 ns
SeriesNT Schottky Series, -
SpeedFast Recovery =< 500ns,.
Standard Package50
Supplier Device PackageTO-220FP, TO-220-2 Full.
TechnologySchottky
Voltage - DC Reverse (V.120 V, 120V
Voltage - Forward (Vf) .1.08V @ 15A, 1.08 V @ 1.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomDigi-Key31952490.7801507537693981200onsemi0.780150753769 @ 398
us.rs-online.com703414120.832025ON Semiconductor0.83 @ 25
iodPartsNTSJ30120CTG0.945350550On Semi0.945 @ 350
