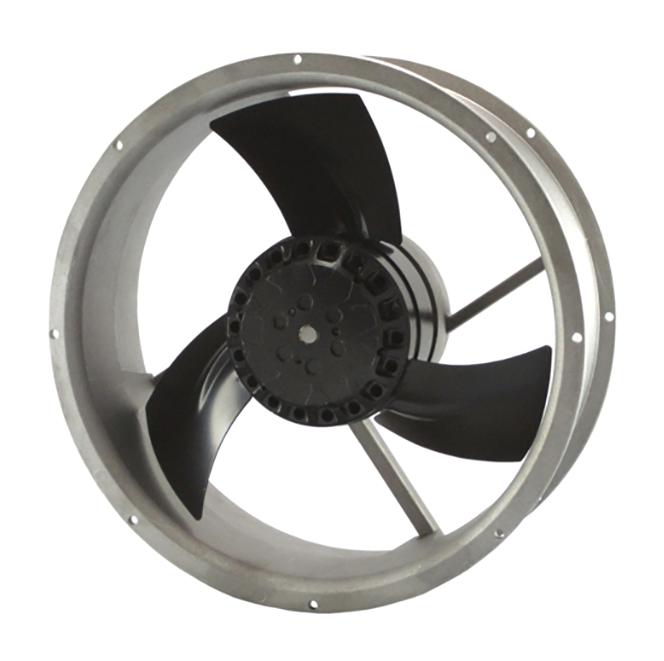

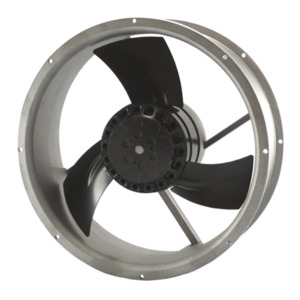

Orion Fans OA2543AN-11-1WB1856

B00GRKIXNI

"Orion (Knight Electronics, Inc.) OA2543AN-11-1WB1856 Fan; AC; 115V; 800CFM; 66dB; 2800RPM; Dual Ball; Leads; 95W; 254x89mm"

"Orion (Knight Electronics, Inc.) OA2543AN-11-1WB1856 Fan; AC; 115V; 800CFM; 66dB; 2800RPM; Dual Ball; Leads; 95W; 254x89mm"zoom

Attributes

Key Value
Air Flow930.0 CFM (26.04m?/min).
Approval AgencycURus, TUV
Approximate Size10 x 10 in. ; 254 x 254.
Approximate Thickness3.5 in. ; 89 mm
Base Product NumberOA2543AN
Bearing TypeDual Ball, Ball
CategoryFans, Thermal Management
ConfigurationRound
Current Rating (Amps)-
DescriptionFAN AXIAL 254X89MM 115V.
Detailed DescriptionFan Tubeaxial 115VAC Ro.
Digi-Key Part Number1053-1547-ND
Dimensions10 x 10 x 3.5 . ; 254 x.
Duty TypeHarsh Environment
Fan TypeTubeaxial, AC
FeaturesCapacitor, Thermal Over.
Frequency50;60 Hz
Ingress ProtectionIP56 - Dust Protected, .
Lifetime @ Temp.50000 Hrs @ 55?C
ManufacturerOrion Fans
Manufacturer Product Nu.OA2543AN-11-1WB1856
Manufacturer Standard L.19 Weeks
MaterialDiecast Aluminum
Material - BladeMetal
Material - FrameAluminum
Maximum Operating Tempe.80 C
MfrOrion Fans
Minimum Operating Tempe.-30 C
Noise67.0dB
Noise Level66 dBA
Operating Temperature-22 ~ 176?F (-30 ~ 80?C)
PackageBox
Power (Watts)105W
Power Rating105 W
Product StatusActive
RotationCCW
RPM3300 RPM
SeriesOA2543AN, OA2543AN Seri.
Size10 x 3.5 (254 x 89) In..
Size / DimensionRound - 254mm Dia
Special FeaturesAll Metal
Speed3300 RPM
Static Pressure1.070 in H2O (266.5 Pa).
Temperature Range-30 to 80 C
Termination2 Wire Leads, Wire Leads
TypeRound
Voltage - Rated115VAC
Voltage Range100 ~ 120VAC
Voltage Rating115 V
Weight4.6 lbs (2.1 kg), 2100 g
Width89.00mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comOA2543AN-11-1WB185698.471In StockOrion Fans98.47 @ 1
thumbzoomCarlton Bates Company40308485917109.751In StockORION FANS109.75 @ 1
thumbzoomDigi-Key4176865138.59134Orion Fans4.6138.59 @ 1
us.rs-online.com70289154138.881In StockOrion Fans4.62138.88 @ 1
thumbzoomjensentools.com10141763142.751In StockOrion Fans142.75 @ 1
thumbzoomNewark89AH2438148.181In StockORION FANS148.18 @ 1
