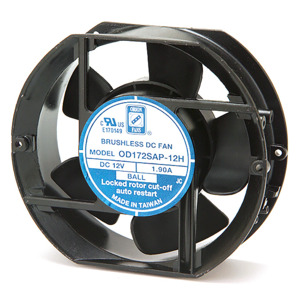

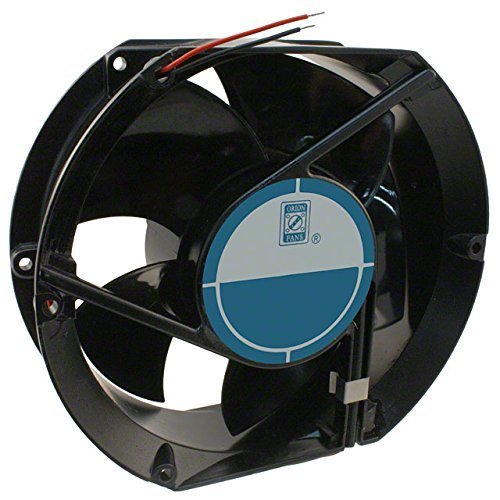

Orion Fans OD172SAP-12HB

B005T8ND3Y

Fans Fan 172x51 12VDC Ball Wire 260cfm

Fans Fan 172x51 12VDC Ball Wire 260cfmzoom

Attributes

Key Value
Air Flow230 CFM, 230.0 CFM (6.4.
Approval AgencycURus, TUV
ApprovalscUR, TUV, UR
Approximate Size6.8 x 5.9 in. ; 172 x 1.
Approximate Thickness2 in. ; 51 mm
Base Product NumberOD172SAP
Bearing TypeDual Ball, Ball
CategoryFans, Thermal Management
ConfigurationObround (Flat Sides/Rou.
Current Rating1.9 A
Current Rating (Amps)1.9A
DescriptionFAN AXIAL 172X50.8MM 12.
Detailed DescriptionFan Tubeaxial 12VDC Rec.
Digi-Key Part Number1053-1175-ND
Dimensions6.8 x 5.9 x 2 . ; 172 x.
Family SeriesOrion Fans, DC-FAN Seri.
Fan Speed3,200 RPM
Fan TypeTubeaxial, DC
FeaturesAuto Restart
Gross Weight0 lbs
Impeller MaterialPlastic
Ingress Protection-
Item NumberOD172SAP-12HB
Lifetime @ Temp.40000 Hrs @ 60?C
ManufacturerOrion Fans, Orion
Manufacturer Part NumberOD172SAP-12HB
Manufacturer Product Nu.OD172SAP-12HB
Manufacturer Standard L.19 Weeks
MaterialDiecast Aluminum
Material - BladePolybutylene Terephthal.
Material - FrameAluminum
Maximum Operating Tempe.75 C
MfrOrion Fans
Minimum Operating Tempe.-20 C
Net Weight1.8 lbs
Noise52.0dB
Noise Level52 dB, 52 dBA
Nominal Depth51 mm
Nominal Height150 mm
Nominal Voltage12 VDC
Nominal Width172 mm
Operating Temp Range (F)-4-167 ?F
Operating Temperature-4 ~ 167?F (-20 ~ 75?C)
Operating Voltage12 VDC
PackageBox
Product SeriesDC-FAN
Product StatusActive
RoHSYes
RotationCW, Counter Clockwise
RPM3200 RPM
SeriesOD127AP Series, OD172S
Size6.7 x 5.9 x 2 (172 x 15.
Size / DimensionRectangular/Rounded - 1.
Speed3200 RPM
Static Pressure0.750 in H2O (186.8 Pa).
Tachometer OutputNo
TerminationWire Leads, 2 Wire Leads
TypeObround (Flat Sides/Rou.
Voltage - Rated12VDC
Voltage Range8 ~ 14VDC
Voltage Rating12 V
Weight-
Width50.80mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomORION FANS OD172SAP-12HB49.4723ORION FANS49.47 @ 2
Onlinecomponents.comOD172SAP-12HB68.6619ORION FANS68.66 @ 1
thumbzoomarcade-electronics.comORI-OD172SAP-12HB81.641In StockOrion Fans81.64 @ 1
HotendaH190153582.914Orion Fans82.9 @ 1
us.rs-online.com7010369092.881In StockOrion Fans92.88 @ 1
thumbzoomjensentools.com1014222995.21In StockOrion Fans95.2 @ 1
thumbzoomDigi-Key262108095.71110Orion Fans95.71 @ 1
AmazonSCB005T8ND3Y101.111In StockOrion Fans101.11 @ 1
thumbzoomNewark89AH2533103.631In StockORION FANS103.63 @ 1
thumbzoomGalcoOD172SAP-12HB-ORIN112.061In StockOrion1.8112.06 @ 1
Future Electronics3929171118.94410In StockOrion Fans118.944 @ 10
