- mpnOD4010-12HB01A
- brandname: Orion (Knight Electronics, Inc.)
- manufacturername: Orion (Knight Electronics, Inc.)

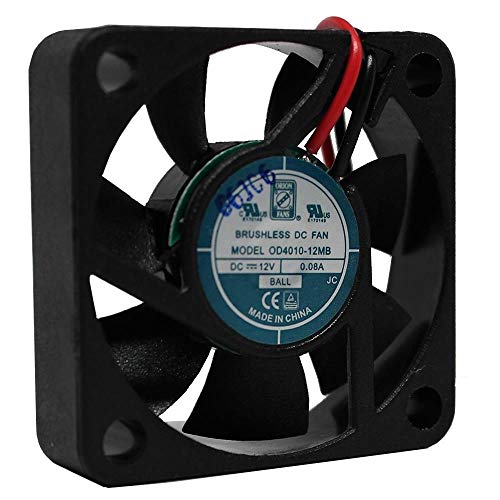

"Orion (Knight Electronics, Inc.) OD4010-12HB01A Fan; 12 VDC; 7 CFM; 25 dB; 6000 RPM; Ball; Leadwire"
- PartNumber: OD4010-12HB01A
- Model: OD4010-12HB01A
- PackageQuantity: 1
- Manufacturer: "Orion (Knight Electronics, Inc.)"
- Label: "Orion (Knight Electronics, Inc.)"
Attributes
| Key | Value |
|---|
| Air Flow | 9.2 CFM (0.258m?/min), . |
| Approval Agency | CE, cURus, TUV, UR |
| Approximate Size | 1.6 x 1.6 in. ; 40 x 40. |
| Approximate Thickness | 0.4 in. ; 10 mm |
| Base Product Number | OD4010 |
| Bearing Type | Ball |
| Category | Fans, Thermal Management |
| Configuration | Square |
| Current Rating | 0.08 A |
| Current Rating (Amps) | 0.070A |
| Description | FAN AXIAL 40X10.5MM 12V. |
| Detailed Description | Fan Tubeaxial 12VDC Squ. |
| Digi-Key Part Number | 1053-1204-ND |
| Dimensions | 1.6 x 1.6 x 0.4 . ; 40 . |
| Family Series | Orion |
| Fan Type | Tubeaxial, DC |
| Features | Auto Restart, Speed Sen. |
| Gross Weight | 0 lbs |
| Ingress Protection | - |
| Item Number | OD4010-12HB01A |
| Lifetime @ Temp. | 60000 Hrs @ 45?C |
| Manufacturer | Orion Fans, Orion |
| Manufacturer Part Number | OD4010-12HB01A |
| Manufacturer Product Nu. | OD4010-12HB01A |
| Manufacturer Standard L. | 19 Weeks |
| Material | Plastic |
| Material - Blade | Polybutylene Terephthal. |
| Material - Frame | Polybutylene Terephthal. |
| Maximum Operating Tempe. | 80 C |
| Mfr | Orion Fans |
| Minimum Operating Tempe. | -10 C |
| Net Weight | 0 lbs |
| Noise | 33.4dB |
| Noise Level | 25 dBA |
| Operating Temperature | -4 ~ 149?F (-20 ~ 65?C) |
| Package | Box |
| Power (Watts) | 720 mW |
| Product Status | Active |
| Rotation | CW |
| RPM | 8000 RPM |
| Series | OD4010 Series, OD4010 |
| Size | 1.6 x 0.4 (40 x 10) In.. |
| Size / Dimension | Square - 40mm L x 40mm H |
| Speed | 6000 RPM |
| Static Pressure | 0.18 in H2O (44.8 Pa), . |
| Termination | Wire Leads, 3 Wire Leads |
| Type | Square |
| Voltage - Rated | 12VDC |
| Voltage Range | 10.8 ~ 13.2VDC |
| Voltage Rating | 12 V |
| Weight | 0.441 lb (200.00 g) |
| Width | 10.50mm |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H1900790 | 12.2 | 1 | 431 | | Orion Fans | | 12.2 @ 1 |
| Onlinecomponents.com | OD4010-12HB01A | 12.57 | 2 | In Stock | | Orion | | 12.57 @ 2 |
 | jensentools.com | 10141855 | 14.15 | 1 | In Stock | | Orion Fans | | 14.15 @ 1 |
| Mouser | 670-OD4010-12HB01A | 15.09 | 1 | 68 | | Orion | | 15.09 @ 1 |
 | Digi-Key | 2621109 | 15.69 | 1 | 1576 | | Orion Fans | 0.441 | 15.69 @ 1 |
 | Newark | 89AH2552 | 16.05 | 1 | In Stock | | ORION FANS | | 16.05 @ 1 |
| us.rs-online.com | 70244160 | 16.33 | 1 | In Stock | | Orion Fans | | 16.33 @ 1 |
 | Galco | OD4010-12HB01A-ORIN | 16.65 | 1 | In Stock | | Orion | | 16.65 @ 1 |
