- mpnOA80AP-11-1-TB
- brandname: Orion Fans
- manufacturername: Orion Fans

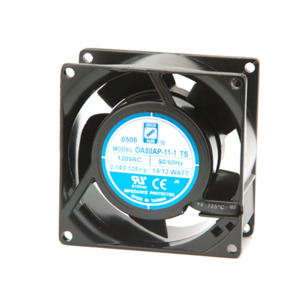

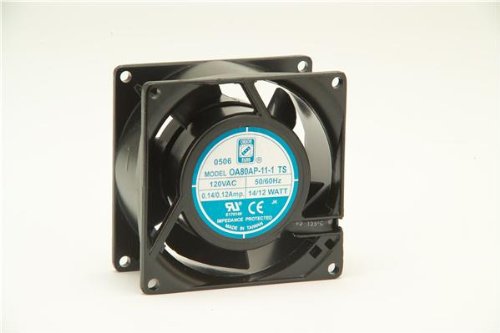

Orion Fans Part Number OA80AP-11-1TB
- Brand: Orion Fans
- PartNumber: OA80AP-11-1TB
- Model: OA80AP-11-1TB
- PackageQuantity: 1
- Binding: Unknown Binding
- Manufacturer: Orion Fans
- Label: Orion Fans
Attributes
| Key | Value |
|---|
| Air Flow | 30.0 CFM (0.840m?/min),. |
| Air Flow Rating | 25/30 CFM |
| Approval Agency | cURus, TUV |
| Approvals | cUR, TUV, UR |
| Approximate Size | 3.2 x 3.2 in. ; 80 x 80. |
| Approximate Thickness | 1.5 in. ; 38 mm |
| Base Product Number | OA80AP |
| Bearing System | Two ball |
| bearing type | ball bearing |
| Bearing Type | Dual Ball, Ball |
| blades | 5 |
| body material | metal |
| Category | Fans, Thermal Management |
| Color | Black |
| Configuration | Square |
| connection type | plug |
| Connections | Terminals |
| Current Rating (Amps) | 0.120A |
| Description | FAN AXIAL 80X38MM 115VA. |
| Detailed Description | Fan Tubeaxial 115VAC Sq. |
| Dielectric Strength | 1 min. at 1,500VAC, 50/. |
| Digi-Key Part Number | 1053-1079-ND |
| Dimensions | 3.2 x 3.2 x 1.5 . ; 80 . |
| Family Series | Orion Fans, AC-FAN Seri. |
| Fan Speed | 3,000 RPM |
| Fan Type | Tubeaxial, AC |
| Features | - |
| flow rate | 31.0 cfm |
| Frame/Housing | Aluminum die-cast |
| Frequency | 50 ; 60 Hz |
| Gross Weight | 0.675 lbs |
| Impeller | Glass reinforced thermo. |
| Impeller Material | Plastic |
| Ingress Protection | - |
| Item Number | OA80AP-11-1TB |
| item per pack | 1 |
| Life Expectancy at 40?C | 60,000 Hours |
| Lifetime @ Temp. | 60000 Hrs @ 40?C |
| Manufacturer | Orion Fans, Orion |
| Manufacturer Part Number | OA80AP-11-1TB |
| Manufacturer Product Nu. | OA80AP-11-1TB |
| Manufacturer Standard L. | 19 Weeks |
| Material | Diecast Aluminum |
| Material - Blade | Polybutylene Terephthal. |
| Material - Frame | Aluminum |
| Max CFM | 31 |
| Maximum Operating Tempe. | 80 C |
| Maximum Static Pressure | 0.24" |
| Mfr | Orion Fans |
| Minimum Operating Tempe. | -20 C |
| Motor | Shaded pole, impedance . |
| Net Weight | 0.635 lbs |
| Noise | 36.0dB, 29dB |
| Noise Level | 29 dB |
| noise rating | 29.0 db |
| Nominal Depth | 38 mm |
| Nominal Height | 80 mm |
| Nominal Voltage | 120 VAC |
| Nominal Width | 80 mm |
| Operating Temp Range (F) | -4-176 ?F |
| Operating Temperature | -4 ~ 176?F (-20 ~ 80?C). |
| Operating Voltage | 115 vac |
| package | Bulk |
| Package | Box |
| Power (Watts) | 9.00W |
| Power Consumption | 12 W |
| power rating | 12.00 w |
| Power Rating | 12 W |
| Product Series | AC-FAN |
| Product Status | Active |
| RoHS | Yes |
| Rotation | Clockwise, CW |
| RPM | 3000 rpm |
| Safety Approvals | UL, CUL, TUV standards |
| Series | OA80, OA80 Series |
| size | 80 x 80 x 38 mm |
| Size | 80mm x 80mm x 38mm (3.1. |
| Size / Dimension | Square - 80mm L x 80mm H |
| Special Features | All Metal |
| speed | 3000 rpm |
| Speed | 3000 rpm |
| Standards | IP55 |
| Static Pressure | 0.220 in H2O (54.8 Pa),. |
| supply current | 0.14 a |
| supply voltage | 115 vac |
| Tachometer Output | No |
| Termination | 2 Terminals, Terminals |
| Type | Square |
| Voltage | 115 |
| Voltage - Rated | 115VAC |
| Voltage Range | 80~130, 103 ~ 126VAC |
| Voltage Rating | 115 V |
| Watts | 12.0 |
| Weight | - |
| Width | 38.00mm |
