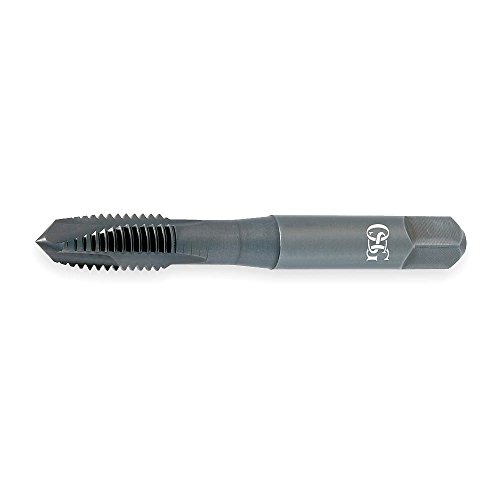

Spiral Point Tap, Plug, TiCN, 8-32
- Brand: OSG
- PartNumber: 1105610808
- Model: 1105610808
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: OSG Tap And Die
- Label: OSG Tap And Die
Attributes
| Key | Value |
|---|
| # of flutes | 3 |
| 55% Thread Drill Size | 3.60mm, 3.60 mm |
| 65% Thread Drill Size | 3.50mm, 3.50 mm |
| 75% Thread Drill Size | 3.40 mm, 3.40mm |
| Availability | Call for Availability |
| Brand | OSG |
| brand | OSG |
| Catalog Page | N/A |
| chamfer | 4.5P - 5.5P |
| Class of Fit | JIS 2 |
| Coolant Fed | Non-Coolant Through |
| coolant thru | No |
| Country of Origin | Mexico |
| Drill Bit Size | 0.1315 in; 0.1336 in; 0. |
| Extended Neck | Yes |
| Item | Spiral Point Tap |
| Item? | 2TNJ2 |
| list number | 312TI |
| List Number | 312TI |
| Manufacturer | OSG |
| Measurement System | Pipe |
| Mfr. Model # | 1105610808 |
| Mfr. Model? | 1105610808 |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 2-1/8", 2-3/32 in |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | Nickel; Titanium, Nicke. |
| Primary Material Applic. | S |
| Secondary Material Appl. | Hardened Steel; Stainle. |
| Secondary Material Appl. | H, M, P, H; M; P |
| Series | 312TI |
| Shank Dia. | 0.168", 5/64 in |
| shank diameter | 0.167 |
| Shank Length | 1.3690", 1 11/32 in, 1-. |
| Shank Type - Machining | Straight |
| Ship Weight (lbs.) | 0.1 |
| Spiral Direction | Neutral |
| Square Size | 0.1310", 0.1310 in |
| square size | 0.131 |
| Standards | ANSI |
| sti thread | No |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Tap Material | VC-10, Powdered Metal |
| Tap Size | #8 |
| Tap Style | Spiral Point |
| Tap Thread Size | #8-32 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Length | 3/4", 3/4 in |
| Thread Limit | H3 |
| Thread Limit / Class of. | H3, H3 / JIS 2 |
| Thread Size | #8-32 |
| Thread Standard | UNC |
| Threads per Inch | 32 TPI, 32 |
| Unit | EA |
| UNSPSC | 23153305 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| tmttoolbox.com | 1105610808 | 30.73 | 1 | In Stock | | osg | | 30.73 @ 1 |
| Grainger | 2TNJ2 | 31.7 | 1 | In Stock | | OSG | | 31.7 @ 1 |
 | Zoro | G1023057 | 31.95 | 1 | In Stock | | Osg | 0.02 | 31.95 @ 1 |
 | grovesindustrial.com | OSG 1105610808 | 32.11 | 1 | In Stock | | OSG | 0.1 | 32.11 @ 1 |
 | bscsource.com | 1105610808 | 33.09 | 1 | In Stock | | OSG | | 33.09 @ 1 |
 | National Supply Network | 75763821 | 36.11 | 1 | In Stock | | OSG | | 36.11 @ 1 |
 | sustainablesupply.com | C1476678 | 37.04 | 1 | In Stock | | OSG | 0.02 | 37.04 @ 1 |
| grainger.ca | OSG1105610808 | 39.45481416 | 1 | In Stock | | OSG | 0.02 | 39.45481416 @ 1 |
 | Guardian | 75763821 | 40.47 | 1 | In Stock | | OSG | | 40.47 @ 1 |
