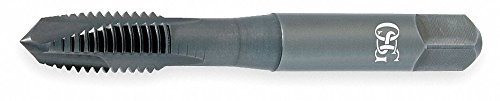

Spiral Point Tap, Plug, TiCN, 1/4-20
- Brand: OSG
- PartNumber: 1105611308
- Model: 1105611308
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: OSG Tap And Die
- Label: OSG Tap And Die
Attributes
| Key | Value |
|---|
| # of flutes | 3 |
| 55% Thread Drill Size | #3 |
| 65% Thread Drill Size | #5 |
| 75% Thread Drill Size | #7 |
| brand | OSG |
| chamfer | 4.5P - 5.5P |
| Class of Fit | H3 |
| Coolant Fed | Non-Coolant Through |
| coolant thru | No |
| Country of Origin (subj. | Mexico |
| Cutting Direction - Mac. | Right Hand |
| Drill Bit Size | 0.1980 in, 0.2013 in, 0. |
| Extended Neck | Yes |
| Helix Angle | 0 Degrees |
| Item | Spiral Point Tap |
| list number | 312TI |
| List Number | 312TI |
| Measurement System | Fractional Inch |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 2-1/2" |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | Nickel, Titanium |
| Primary Material Applic. | S |
| Secondary Material Appl. | Hardened Steel, Stainle. |
| Secondary Material Appl. | H, M, P |
| Series | 312TI |
| Shank Dia. | 0.255" |
| shank diameter | 0.255 |
| Shank Length | 1-1/2", 1 1/2 in |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.1900 in, 0.1900" |
| square size | 0.190 |
| Standards | ANSI |
| sti thread | No |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Tap Material | Powdered Metal |
| Tap Size | 1/4" |
| Tap Style | Spiral Point |
| Tap Thread Size | 1/4"-20 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Length | 1" |
| Thread Limit | H3 |
| Thread Limit / Class of. | H3 / H3, H3 |
| Thread Size | 1/4"-20 |
| Thread Standard | UNC |
| Threads per Inch | 20, 20 TPI |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2400587 | 38.39 | 1 | In Stock | 26 | Osg | 0.04 | 38.39 @ 1 |
| tmttoolbox.com | 1105611308 | 40.55 | 1 | In Stock | | osg | | 40.55 @ 1 |
 | bscsource.com | 1105611308 | 47.59 | 1 | In Stock | | OSG | | 47.59 @ 1 |
 | sustainablesupply.com | C1476683 | 49.99 | 1 | In Stock | | OSG | 0.04 | 49.99 @ 1 |
 | Guardian | 75763862 | 53.39 | 1 | In Stock | | OSG | | 53.39 @ 1 |
| grainger.ca | OSG1105611308 | 55.25561078 | 1 | In Stock | | OSG | 0.03 | 55.25561078 @ 1 |
