- mpn1702801
- brandname: OSG
- manufacturername: OSG

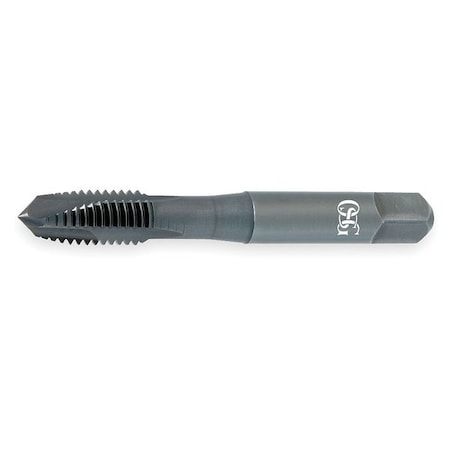

Spiral Point Tap, Plug, S/O, M10x1.5
- Brand: OSG
- PartNumber: 1702801
- Model: 1702801
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: OSG Tap And Die
- Label: OSG Tap And Die
Attributes
| Key | Value |
|---|
| # of flutes | 3 |
| 55% Thread Drill Size | 8.90mm, 8.90 mm |
| 65% Thread Drill Size | 11/32", 11/32 in |
| 75% Thread Drill Size | 8.50 mm, 8.50mm |
| brand | OSG |
| chamfer | 4.5P - 5.5P |
| Class of Fit | 6H |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 8.44 mm, 8.54 mm, 8.64 . |
| Extended Neck | Yes |
| interrupted | No |
| Item | Spiral Point Tap |
| list number | 344 |
| Measurement System | Metric |
| Number of Flutes | 3 |
| Overall Length | 74.00mm |
| Pitch Diameter Limit | D10 |
| Primary Material Applic. | Hardened Steel, Stainle. |
| Primary Material Applic. | H, M, P3 |
| Secondary Material Appl. | Hardened Steel, Nickel,. |
| Secondary Material Appl. | H, M, P, S |
| Series | 344 |
| Shank Dia. | 9.70mm |
| shank diameter | 9.67mm |
| Shank Length | 42.00mm, 42.00 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| square length | 11.1mm |
| Square Size | 7.26mm, 7.26 mm |
| Standards | ANSI |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Tap Finish | Oxide, Black Oxide |
| Tap Grouping | Tap |
| Tap Material | Powdered Metal |
| Tap Size | M10 |
| Tap Style | Spiral Point |
| tap style | Spiral Point |
| Tap Thread Size | M10-1.5, M10-1.50 |
| Tap Thread Type | Metric |
| Thread Direction | Right Hand |
| thread length | 17mm |
| Thread Length | 32.00mm |
| Thread Limit | D6 |
| Thread Limit / Class of. | D6 |
| Thread Pitch | 1,50 mm |
| Thread Size | M10x1.5 |
| Thread Standard | Metric Coarse |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1776126 | 45.05 | 1 | 10 | | Osg | 0.1 | 45.05 @ 1 |
 | sustainablesupply.com | C2802103 | 51.57 | 1 | In Stock | | OSG | 0.09 | 51.57 @ 1 |
| tmttoolbox.com | 1702801 | 51.99 | 1 | In Stock | | osg | | 51.99 @ 1 |
 | National Supply Network | 75045609 | 54.18 | 1 | In Stock | | OSG | | 54.18 @ 1 |
| steinerelectric.com | 1105221 | 54.33 | 1 | In Stock | | OSG | | 54.33 @ 1 |
 | bscsource.com | 1702801 | 60.99 | 1 | In Stock | | OSG | | 60.99 @ 1 |
| AmazonSC | B0006NGJCO | 61.41 | 1 | In Stock | | Osg | | 61.41 @ 1 |
| grainger.ca | OSG1702801 | 70.64269798 | 1 | In Stock | | OSG | 0.08 | 70.64269798 @ 1 |
