- mpn1719501
- brandname: OSG
- manufacturername: OSG

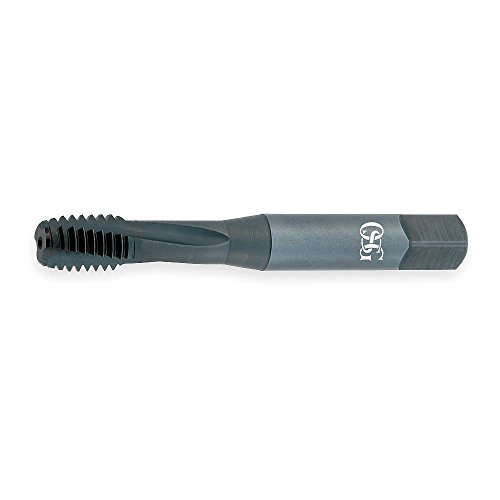

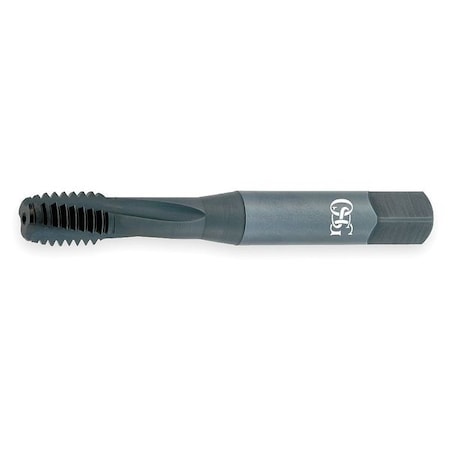

Spiral Flute Tap, MBot, Steam Oxide, 10-24
- Brand: OSG
- PartNumber: 1719501
- Model: 1719501
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: OSG Tap And Die
- Label: OSG Tap And Die
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 3.60 mm |
| 65% Thread Drill Size | 3.50 mm |
| 75% Thread Drill Size | 3.40 |
| Availability | In-Stock |
| Brand | OSG |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 0.1315 in, 0.1336 in, 0. |
| Extended Neck | No |
| Helix Angle | 10 Degrees |
| Item | Spiral Flute Tap |
| Items Left in Stock | 8 |
| Manufacturer | OSG |
| Material Grade - Machin. | VC-10 |
| Measurement System | Pipe |
| Mfr. Model # | 1719501 |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 2-3/8", 2 3/16 in |
| Pitch Diameter Limit | H3 |
| Primary Material Applic. | Nickel, Titanium |
| Primary Material Applic. | S |
| Secondary Material Appl. | Hardened Steel, Nickel,. |
| Secondary Material Appl. | H, M, S3 |
| Series | 313NI |
| Shank Dia. | 0.194", 5/32 in |
| Shank Length | 1 7/16 in |
| Shank Type - Machining | Straight |
| Ship Weight (lbs.) | 0.2 |
| Square Size | 0.1310 in |
| Standards | ANSI |
| Tap Chamfer | Modified Bottoming |
| Tap Dimension Type | Inch |
| Tap Finish | Oxide, Black Oxide |
| Tap Grouping | Individual, Tap |
| Tap Material | Powdered Metal |
| Tap Shank Standard | ANSI |
| Tap Size | #10 |
| Tap Style | Spiral Flute |
| Tap Thread Size | #8-32, #10-24 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Length | 7/8", 3/4 in |
| Thread Limit | H5 |
| Thread Limit / Class of. | H5 |
| Thread Size | #8-32 |
| Thread Standard | UNC |
| Threads per Inch | 32 |
| Unit | EA |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | grovesindustrial.com | OSG 1719501 | 22.26 | 1 | 8 | | OSG | 0.2 | 22.26 @ 1 |
 | Zoro | G2246203 | 36.99 | 1 | 1 | | Osg | 0.03 | 36.99 @ 1 |
| steinerelectric.com | 79087 | 40.09 | 1 | In Stock | | OSG | | 40.09 @ 1 |
 | bscsource.com | 1719501 | 41.19 | 1 | In Stock | | OSG | | 41.19 @ 1 |
| grainger.ca | OSG1719501 | 41.5161032 | 1 | In Stock | | OSG | 0.02 | 41.5161032 @ 1 |
 | National Supply Network | 75046888 | 43.74 | 1 | In Stock | | OSG | | 43.74 @ 1 |
 | sustainablesupply.com | C1477353 | 52.05 | 1 | In Stock | | OSG | 0.03 | 52.05 @ 1 |
