OSG 1765901

mpn1765901
brandname: OSG
manufacturername: OSG

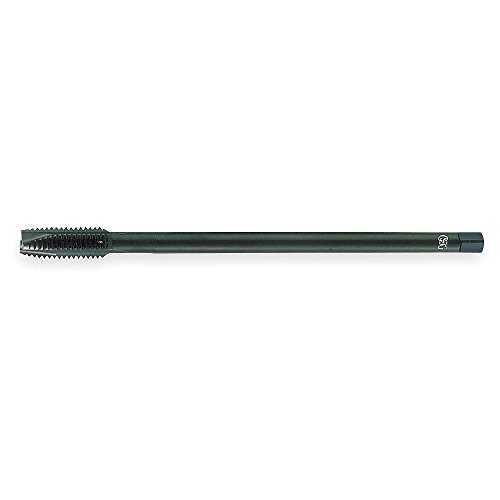

Spiral Point Tap, Plug, S/O, 7/16-20

Spiral Point Tap, Plug, S/O, 7/16-20

zoom

Brand: OSG
PartNumber: 1765901
Model: 1765901
PackageQuantity: 1
Binding: Misc.
Manufacturer: OSG Tap And Die
Label: OSG Tap And Die

Attributes

Key	Value
# of flutes	3
55% Thread Drill Size	10.20mm, 10.20 mm
65% Thread Drill Size	9.95mm, 9.95 mm
75% Thread Drill Size	10.00mm, 10.00 mm
brand	OSG
chamfer	3.5P - 4.5P
Coolant Fed	Non-Coolant Through
coolant thru	No
Extended Neck	No
Extended Shank	Yes
Item	Spiral Point Tap
list number	397
Material Grade - Machin.	397
Measurement System	Fractional Inch
neck length	1.291
Number of Flutes	3
Number of Pieces	1
Overall Length	6"
Pitch Diameter Limit	H3
Primary Material Applic.	Stainless Steel, Steel
Primary Material Applic.	M, P
Series	397
Shank Dia.	0.323"
Shank Length	4 45/64 in
Spiral Direction	Neutral
Square Size	0.2420 in
square size	0.242
Standards	ANSI
sti thread	No
Tap Chamfer	Plug
Tap Dimension Type	Inch
Tap Finish	Oxide
Tap Grouping	Tap
Tap Length Standard	ANSI
Tap Material	High Speed Steel
Tap Shank Standard	ANSI
Tap Size	7/16"
Tap Style	Spiral Point
Tap Thread Size	7/16"-20
Tap Thread Type	UNF
Tap Type	Spiral Point
Thread Direction	Right Hand
Thread Length	1-7/8"
Thread Limit	H3
Thread Size	7/16"-20
Thread Standard	UNF
Threads per Inch	20
unspsc	23241600

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1704053	54.85	1	In Stock		Osg	0.16	54.85 @ 1
	National Supply Network	64183270	62.52	1	In Stock		OSG		62.52 @ 1
	tmttoolbox.com	1765901	63.29	1	In Stock		osg		63.29 @ 1
	sustainablesupply.com	C2912245	64.95	1	In Stock		OSG	0.15	64.95 @ 1
	steinerelectric.com	439197	66.16	1	In Stock		OSG		66.16 @ 1
	bscsource.com	1765901	67.99	1	In Stock		OSG		67.99 @ 1
	grainger.ca	OSG1765901	73.86527662	1	In Stock		OSG	0.15	73.86527662 @ 1
