- mpn1981901
- brandname: OSG
- manufacturername: OSG

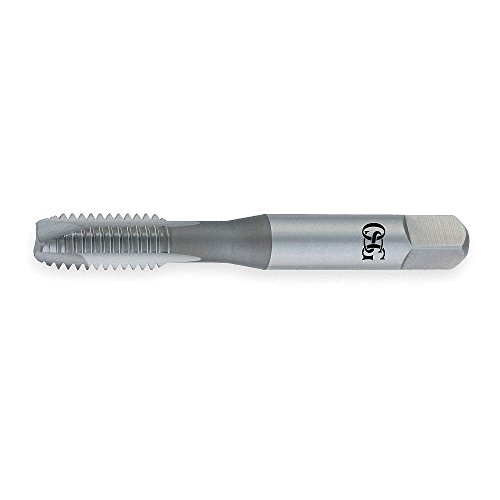

Spiral Point Tap, Plug, S/O, M12x1.75
- Brand: OSG
- PartNumber: 1981901
- Model: 1981901
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: OSG Tap And Die
- Label: OSG Tap And Die
Attributes
| Key | Value |
|---|
| # of flutes | 3 |
| 55% Thread Drill Size | 27/64", 27/64 in |
| 65% Thread Drill Size | 10.50 mm, 10.50mm |
| 75% Thread Drill Size | 10.30 mm, 10.30mm |
| brand | OSG |
| chamfer | 3.5P - 4.5P |
| Class of Fit | 6H |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 10.18mm, 10.30mm, 10.41. |
| Extended Neck | Yes |
| interrupted | No |
| Item | Spiral Point Tap |
| list number | 142 |
| Measurement System | Metric |
| neck length | 35mm |
| Number of Flutes | 3 |
| Overall Length | 86.00mm |
| Pitch Diameter Limit | D11 |
| Primary Material Applic. | Aluminum, Cast Iron, St. |
| Primary Material Applic. | K, N, P |
| Series | 142 |
| Shank Dia. | 6.90mm |
| Shank Length | 50.00mm, 50.00 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| square length | 11.1mm |
| square size | 6.98mm |
| Square Size | 6.98mm, 6.98 mm |
| Standards | ANSI |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Tap Finish | Oxide |
| Tap Grouping | Tap |
| Tap Material | High Speed Steel |
| Tap Size | M12 |
| Tap Style | Spiral Point |
| tap style | Spiral Point |
| Tap Thread Size | M12-1.75 |
| Tap Thread Type | Metric Coarse |
| Thread Direction | Right Hand |
| Thread Length | 42.00mm |
| Thread Limit | D6 |
| Thread Limit / Class of. | D6 |
| Thread Pitch | 1,75 mm |
| Thread Size | M12x1.75 |
| Thread Standard | Metric Coarse |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| tmttoolbox.com | 1981901 | 22.51 | 1 | In Stock | | osg | | 22.51 @ 1 |
| DGI Supply | OSG1981901 | 24.96 | 1 | In Stock | | OSG | | 24.96 @ 1 |
 | sustainablesupply.com | C1477587 | 30.67 | 1 | In Stock | | OSG | 0.11 | 30.67 @ 1 |
| grainger.ca | OSG1981901 | 31.73949638 | 1 | In Stock | | OSG | 0.11 | 31.73949638 @ 1 |
 | Zoro | G0349115 | 31.99 | 1 | In Stock | | Osg | 0.11 | 31.99 @ 1 |
 | National Supply Network | 64162175 | 40.69 | 1 | In Stock | | OSG | | 40.69 @ 1 |
 | bscsource.com | 1981901 | 43.19 | 1 | In Stock | | OSG | | 43.19 @ 1 |
