- mpn1982201
- brandname: OSG
- manufacturername: OSG

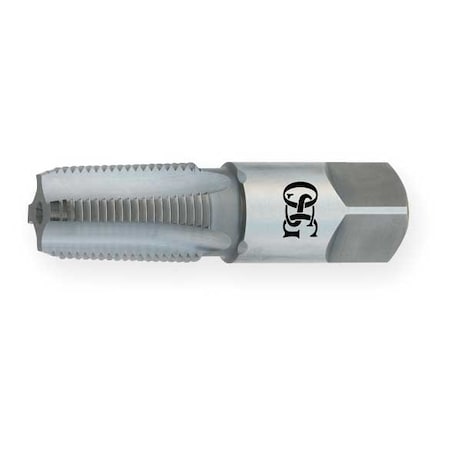

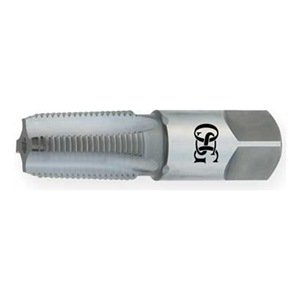

Spiral Point Tap, Plug, HSS, B/O, M3.5-0.6
- Brand: OSG
- PartNumber: 1982201
- Model: 1982201
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: OSG Tap And Die
- Label: OSG Tap And Die
Attributes
| Key | Value |
|---|
| # of flutes | 2 |
| 55% Thread Drill Size | #31 |
| 65% Thread Drill Size | 3.00mm, 3.00 mm |
| 75% Thread Drill Size | 2.90 mm, 2.90mm |
| brand | OSG |
| chamfer | 3.5P - 4.5P |
| Class of Fit | JIS 2 |
| Coolant Fed | Non-Coolant Through |
| Drill Bit Size | 2.88 mm, 2.92 mm, 2.95 . |
| Extended Neck | Yes |
| interrupted | No |
| Item | Spiral Point Tap |
| list number | 142 |
| List Number | 142 |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 51.00mm |
| Pitch Diameter Limit | D4 |
| Primary Material Applic. | Aluminum, Cast Iron, St. |
| Primary Material Applic. | K, N, P |
| Series | 142 |
| Shank Dia. | 3.58mm |
| shank diameter | 3.58mm |
| Shank Length | 32.00mm, 32.00 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| square length | 4.8mm |
| Square Size | 2.79mm, 2.79 mm |
| Standards | ANSI |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Tap Finish | Oxide |
| Tap Grouping | Tap |
| Tap Material | High Speed Steel |
| Tap Size | M3.5 |
| Tap Style | Spiral Point |
| tap style | Spiral Point |
| Tap Thread Size | M3.5-0.6, M3.5-0.60 |
| Tap Thread Type | Metric Coarse |
| Thread Direction | Right Hand |
| thread length | 10mm |
| Thread Length | 17.00mm |
| Thread Limit | D4 |
| Thread Limit / Class of. | D4 |
| Thread Pitch | 0,60 mm |
| Thread Size | M3.5x0.6 |
| Thread Standard | Metric Coarse |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2358006 | 9.39 | 1 | 8 | | Osg | 0.01 | 9.39 @ 1 |
| tmttoolbox.com | 1982201 | 9.6 | 1 | In Stock | | osg | | 9.6 @ 1 |
| steinerelectric.com | 132772 | 11.57 | 1 | In Stock | | OSG | | 11.57 @ 1 |
| grainger.ca | OSG1982201 | 13.69595922 | 1 | In Stock | | OSG | 0.1 | 13.69595922 @ 1 |
 | sustainablesupply.com | C1433369 | 14.41 | 1 | In Stock | | OSG | 0.1 | 14.41 @ 1 |
 | bscsource.com | 1982201 | 18.79 | 1 | In Stock | | OSG | | 18.79 @ 1 |
 | National Supply Network | 64161953 | 23.09 | 1 | In Stock | | OSG | | 23.09 @ 1 |
