- mpn1983600
- brandname: OSG
- manufacturername: OSG

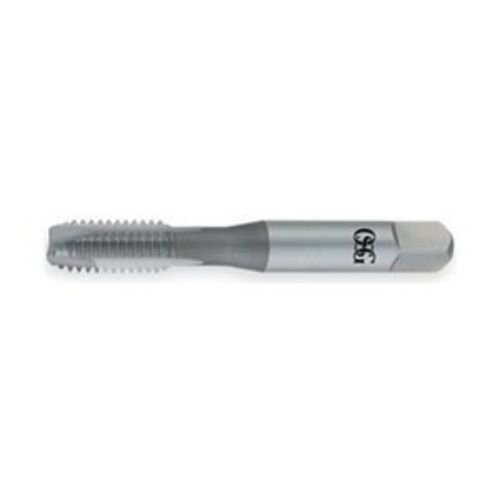

Spiral Point Tap, Plug, Bright, M20x1.5
- Brand: OSG
- PartNumber: 1983600
- Model: 1983600
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: OSG Tap And Die
- Label: OSG Tap And Die
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 18.90mm, 18.90 mm |
| 65% Thread Drill Size | 18.75mm, 18.75 mm |
| 75% Thread Drill Size | 18.50 mm, 18.50mm |
| brand | OSG |
| chamfer | 3.5P - 4.5P |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | Mexico |
| Cutting Direction - Mac. | Right Hand |
| Drill Bit Size | 18.44mm, 18.54mm, 18.64. |
| Extended Neck | Yes |
| Helix Angle | 0 Degrees |
| interrupted | No |
| Item | Spiral Point Tap |
| list number | 142 |
| List Number | 142 |
| Measurement System | Metric |
| neck length | 45mm |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 113.00 mm, 4-15/32" |
| overall length | 113mm |
| Pitch Diameter Limit | D6 |
| Primary Material Applic. | Aluminum, Cast Iron, St. |
| Primary Material Applic. | K, N, P |
| Series | 142 |
| Shank Dia. | 12.42mm, 16.56 mm |
| Shank Length | 68.00 mm, 68.00mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 12.42mm, 12.42 mm |
| square size | 12.42mm |
| Standards | ANSI |
| sti thread | No |
| Tap Chamfer | Plug |
| Tap Dimension Type | Metric |
| Tap Finish | Bright, Bright (Uncoate. |
| Tap Grouping | Individual, Tap |
| Tap Material | High Speed Steel |
| Tap Size | M20 |
| tap style | Spiral Point |
| Tap Style | Spiral Point |
| Tap Thread Size | M20x1.50, M20-1.5, M20-. |
| Tap Thread Type | Metric Fine |
| Thread Direction | Right Hand |
| Thread Length | 31.00 mm, 50.80mm |
| Thread Limit | D6 |
| Thread Limit / Class of. | D6 |
| Thread Pitch | 1.50 mm, 1,50 mm |
| Thread Size | M20x1.5 |
| Thread Standard | Metric Fine |
