OSG 215-0472

mpn215-0472
brandname: Osg
manufacturername: Osg

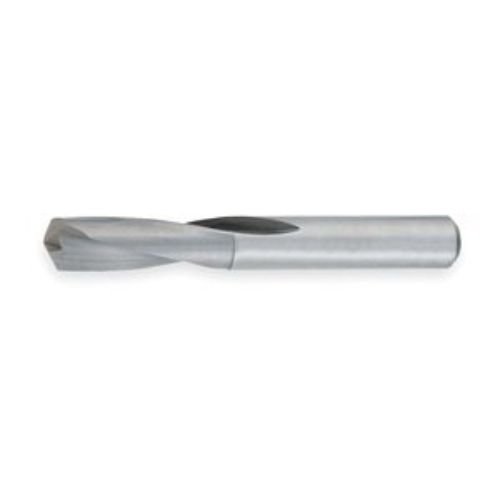

Screw Mach Dril, SS, Carbide, 1.2mm, 135 Deg

Screw Mach Dril, SS, Carbide, 1.2mm, 135 Deg

zoom

Brand: OSG
PartNumber: 215-0472
Model: 215-0472
PackageQuantity: 1
Binding: Misc.
Manufacturer: OSG Tap And Die
Label: OSG Tap And Die

Attributes

Key	Value
Application	For Aluminum, Cast Iron.
brand	OSG
coating	Bright
Coolant Fed	Non-Coolant Through
coolant through	No
Cutting Direction	Right Hand
Decimal Equivalent	0.0472
Depth x Dia. Ratio	5xD
Depth:Dia. Ratio	5xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	Bright
Drill Bit Grouping	Drill Bit
Drill Bit Material	Solid Carbide
Drill Bit Point Angle	135 Degrees
Drill Bit Size	1.20 mm
Drill Diameter Tolerance	+0.000/-0.013 mm
Drill Length Class	Screw Machine Length
Flute Length	13.00 mm
flute length inch	0.500
Flute Type	Spiral
Item	Screw Machine Drill Bit
length style	Jobber (4D-7D)
Maximum Drilling Depth	12.7 mm
Number of Flutes	2
Number of Pieces	1
Overall Length	38.00 mm
overall length inch	1.500
point angle	135?
Shank Dia.	1.20 mm
shank diameter	1.20mm
Shank Length	25.40 mm
Sizes Included	1.20mm
thinning	Four Facet Point

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	tmttoolbox.com	215-0472	8.52	1	In Stock		osg		8.52 @ 1
	Zoro	G1920031	8.69	1	1		Osg	0.1	8.69 @ 1
	National Supply Network	55470751	24.2	1	In Stock		OSG		24.2 @ 1
