OSG 215-1200

B007IB315A

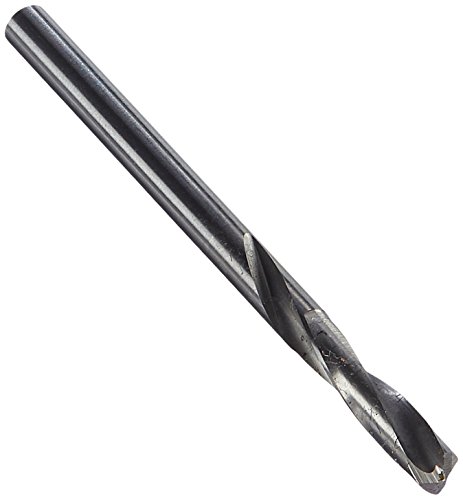

Screw Mach Drill, SS, Carbide, 31, 135 Deg

Screw Mach Drill, SS, Carbide, 31, 135 Degzoom

Attributes

Key Value
ApplicationFor Aluminum, Cast Iron.
Coolant FedNon-Coolant Through
coolant throughNo
Cutting DirectionRight Hand
Decimal Equivalent0.1200
Depth x Dia. Ratio5xD
Depth:Dia. Ratio5xD
diameter mm3.05
diameter tolerance+0 / -0.013mm
Drill Bit Dimension TypeWire
Drill Bit FinishBright
Drill Bit GroupingDrill Bit
Drill Bit MaterialSolid Carbide
Drill Bit Point Angle135 Degrees
Drill Bit Size#31
Drill Diameter Tolerance+0.000/-0.013 mm
Drill Length ClassScrew Machine Length
flute angle15 Degree
Flute Length7/8 in
flute length inch0.874
Flute TypeSpiral
ItemScrew Machine Drill Bit
length styleJobber (4D-7D)
Maximum Drilling Depth22.2 mm
number of flutes2
Number of Flutes2
Number of Pieces1
Overall Length1 7/8 in
Shank Dia.7/64 in
shank diameter3.05mm
Shank Length25.40 mm
Sizes Included#31
thinningFour Facet Point

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG33129069.391In StockOsg0.019.39 @ 1
steinerelectric.com30267610.031In StockOSG10.03 @ 1
tmttoolbox.com215-120010.721In Stockosg10.72 @ 1
thumbzoomsustainablesupply.comC143347217.951In StockOSG0.0117.95 @ 1
Grainger2PPG320.261In Stock7OSG20.26 @ 1
thumbzoomNational Supply Network0156028327.871In StockOSG27.87 @ 1
