OSG 215-1285

B007IB333U

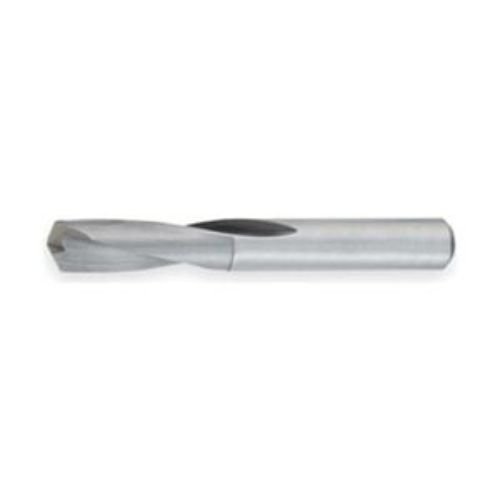

Screw Mach Drill, SS, Carbide, 30, 135 Deg

Screw Mach Drill, SS, Carbide, 30, 135 Degzoom

Attributes

Key Value
ApplicationFor Aluminum, Cast Iron.
Coolant FedNon-Coolant Through
coolant throughNo
Cutting DirectionRight Hand
Decimal Equivalent0.1285
Depth x Dia. Ratio5xD
Depth:Dia. Ratio5xD
diameter inch0.129
diameter tolerance+0 / -0.013mm
Drill Bit Dimension TypeWire
Drill Bit FinishBright
Drill Bit GroupingDrill Bit
Drill Bit MaterialSolid Carbide
Drill Bit Point Angle135 Degrees
Drill Bit Size#30
Drill Diameter Tolerance+0.000/-0.013 mm
Drill Length ClassScrew Machine Length
flute angle15 Degree
Flute Length15/16 in
flute length mm23.80
Flute TypeSpiral
ItemScrew Machine Drill Bit
length styleJobber (4D-7D)
Maximum Drilling Depth23.8 mm
number of flutes2
Number of Flutes2
Number of Pieces1
Overall Length1 15/16 in
Shank Dia.1/8 in
shank diameter3.26mm
Shank Length25.40 mm
Sizes Included#30
thinningFour Facet Point

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG33119719.991In StockOsg0.029.99 @ 1
steinerelectric.com31889111.251In StockOSG11.25 @ 1
tmttoolbox.com215-128512.011In Stockosg12.01 @ 1
thumbzoomsustainablesupply.comC147761820.621In StockOSG0.0220.62 @ 1
thumbzoomNational Supply Network0155843631.081In StockOSG31.08 @ 1
