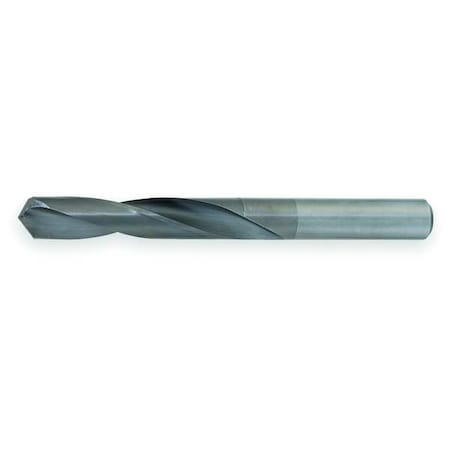

Find your OSG SCREW MACHINE DRILL BIT, #41 DRILL BIT SIZE, 1 13/16 IN LENGTH, CARBIDE at Grainger Canada, formerly Acklands-Grainger. We have been Canada's premiere industrial supplier for over 125 years with superior service and quality.
Weight:
0.01
Weight:
0.01 LB
Preferred Price:
17.39
Price:
17.39
Min Simple Price:
8.0
Absolute Min Price:
12.04
Min Price:
12.04
Dimensions:
[4.0, 1.0, 1.0]
qty:
21
simpleSku:
MDU0Mg:::220-0960
sku:
MDU0Mg::02:220-0960@y0
condition:
11
seller:
Zoro
amzMan:
osg
HazMat:
False
DropShip:
False
Attributes
| Key | Value |
|---|---|
| Application | For Alloy And Carbon Steel, Aluminum And Cast Iron |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | India |
| Country of Origin (subject to change) | India |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.0960, 0.0960 in |
| Depth x Dia. Ratio | 5xD |
| Depth:Dia. Ratio | 5xD |
| diameter tolerance | +0 / -0.013mm |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Individual, Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 118 ?, 118 Degrees, 118 Degrees |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | #41 |
| Drill Diameter Tolerance | +0.000/-0.013 mm |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 118 |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 13/16 in |
| flute length mm | 25.4 |
| Flute Type | Spiral |
| Grade | General Purpose |
| Item | Screw Machine Drill Bit, Screw Machine Length Drill Bit |
| Item? | 2PPK6 |
| list number | 220D |
| List Number | 220D |
| material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 25.4 mm |
| Measurement System | Wire |
| Mfr. Model? | 220-0960 |
| number of flutes | 2 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 1 13/16 in, 1-13/16 in |
| overall length mm | 50.8 |
| point angle | 118 |
| Point Type | Four-Facet Point |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel, Aluminum; Cast Iron; Hardened Steel; Stainless Steel; Steel |
| Primary Material Application ISO Code | K; N; P, K, N, P |
| Series | 220D |
| Shank Dia. | 3/32 in |
| Shank Diameter | 3/32 in |
| Shank Length | 25.40 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| thinning | Four Facet Point |
| UNSPSC | 27112801 |
| wire gauge size | 41 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G0254344 | 8.0 | 8.0 | 1 | In Stock | 26 | Osg | 0.01 | 8.0 @ Qty: 1+ |
| tmttoolbox.com | 220-0960 | 8.69 | 8.69 | 1 | In Stock | osg | 8.69 @ Qty: 1+ | |||
 | Turner Supply | 228590960 | 8.9 | 8.9 | 1 | In Stock | OSG | 8.9 @ Qty: 1+ | ||
 | sustainablesupply.com | C1477650 | 13.12 | 13.12 | 1 | In Stock | OSG | 0.01 | 13.12 @ Qty: 1+ | |
| Grainger | 2PPK6 | 14.13 | 14.13 | 1 | In Stock | OSG | 14.13 @ Qty: 1+ | |||
| AmazonSC | B007IB7A02 | 22.61 | 22.61 | 1 | In Stock | Osg | 22.61 @ Qty: 1+ |
