OSG 3316500

mpn3316500
brandname: Osg
manufacturername: Osg

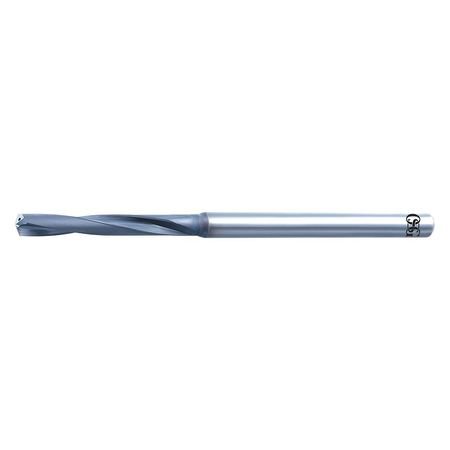

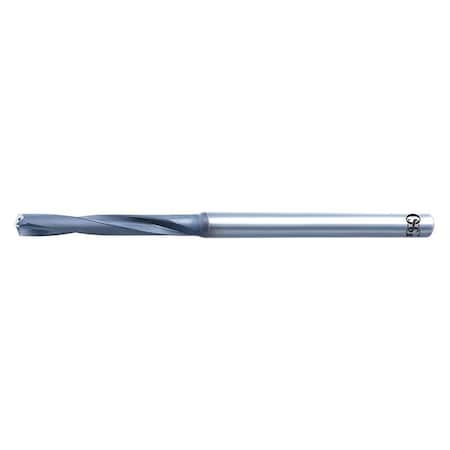

Jobber Drill,5.00mm,Carbide

Jobber Drill,5.00mm,Carbide

zoom

Brand: OSG
PartNumber: 3316500
PackageQuantity: 1
Manufacturer: OSG
Label: OSG

Attributes

Key	Value
Coolant Fed	Coolant Through
Coolant Through	No
Cutting Direction	Right Hand
Decimal Equivalent	0.1969
Depth x Dia. Ratio	5xD
Depth:Dia. Ratio	5xD
diameter tolerance	+0 / -0.018mm
Drill Bit Dimension Type	Metric
Drill Bit Finish	WXS
Drill Bit Grouping	Drill Bit
Drill Bit Material	Solid Carbide
Drill Bit Point Angle	140 Degrees
Drill Bit Size	5.00 mm
Drill Diameter Tolerance	+0.000/-0.018 mm
Drill Length Class	Jobber Length
Flute Length	45.00 mm
flute length mm	45.00
Flute Type	Slow Spiral
Item	Jobber Length Drill Bit
list number	5955NI
List Number	5955NI
material	Carbide
Maximum Drilling Depth	45 mm
number of flutes	2
Number of Flutes	2
Overall Length	88.00 mm
overall length mm	88.00
Point type	R
Shank Dia.	6.00 mm
shank diameter	6.00mm
Shank Length	43.00 mm
shank tolerance	h6
thinning	R Thinning
unspsc	23291500

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1797750	95.75	1	In Stock	7	Osg	0.1	95.75 @ 1
	tmttoolbox.com	3316500	111.7	1	In Stock		osg		111.7 @ 1
	sustainablesupply.com	C2805744	131.43	1	In Stock		OSG	0.1	131.43 @ 1
