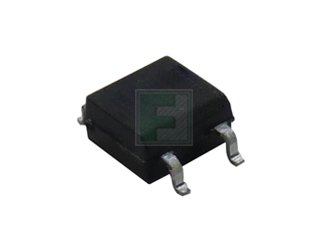

PANASONIC IND DEVICES (PIDSA) APS1241S

PANASONIC IND DEVICES (PIDSA) APS1241S APS1241S Series 20 Mbps 3750 V 6 V Totem Pole Output SMT PhotoIC Coupler - 100 item(s)

PANASONIC IND DEVICES (PIDSA) APS1241S APS1241S Series 20 Mbps 3750 V 6 V Totem Pole Output SMT PhotoIC Coupler - 100 item(s)zoom

Attributes

Key Value
Base Product NumberAPS1241
CaseSOP4
CategoryIsolators
Common Mode Transient I.20kV/?s
Current - DC Forward (I.25mA
Current - Output / Chan.10 mA
Data Rate20Mbps
Input TypeDC
Inputs - Side 1/Side 21/0
Insulation voltage3.75kV
Kind of outputtotem pole
ManufacturerPANASONIC
MfrPanasonic Electric Works
MountingSMD
Mounting TypeSurface Mount
Number of channels1
Number of Channels1
Operating Temperature-40?C ~ 105?C
Output TypePush-Pull, Totem Pole
PackageTube
Package / Case6-SOIC (0.173", 4.40mm .
Product StatusActive
Propagation Delay tpLH .55ns, 55ns
Rise / Fall Time (Typ)2ns, 2ns
Series-
Supplier Device Package5-SOP
Transfer rate20Mbps
Turn-off time2ns
Turn-on time2ns
Type of optocoupleroptocoupler
Voltage - Forward (Vf) .1.6V
Voltage - Isolation3750Vrms
Voltage - Supply2.7V ~ 5.5V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark33AC70322.5100100PANASONIC2.5 @ 100
Future Electronics80898002.82100100Panasonic2.82 @ 100
thumbzoomTMEAPS1241S2.82181100PANASONIC2.8218 @ 100
Digi-Key111966002.9164110061Panasonic Electric Works2.9164 @ 100
us.rs-online.com746123453.14100100Panasonic Electronic Components3.14 @ 100
