Panasonic Industrial Devices EEE-HD1V470AP

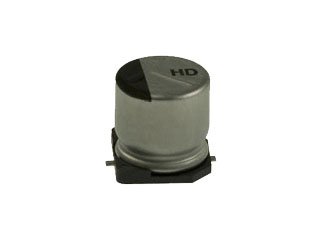

PANASONIC INDUSTRIAL DEVICES EEE-HD1V470AP HD Series 47 uF 35 V 105?C 8 x 10.2 mm 5 kHrs SMT Aluminum Electrolytic Cap - 500 item(s)

PANASONIC INDUSTRIAL DEVICES EEE-HD1V470AP HD Series 47 uF 35 V 105?C 8 x 10.2 mm 5 kHrs SMT Aluminum Electrolytic Cap - 500 item(s)zoom

Attributes

Key Value
ApplicationsAutomotive, High Temper.
Base Product NumberEEE-HD
Capacitance47 uF, 47 ?F
Capacitance Range1 to 99 uF
CategoryCapacitors
DescriptionCAP ALUM 47UF 20% 35V S.
Detailed Description47 ?F 35 V Aluminum Ele.
Digi-Key Part NumberPCE4967TR-ND - Tape & R.
Element MaterialAluminum Electrolytic
ESR (Equivalent Series .-
Height - Seated (Max)0.402" (10.20mm)
Impedance1.5 Ohms
Lead Spacing-
Lifetime @ Temp.5000 Hrs @ 105?C
ManufacturerPanasonic Electronic Co.
Manufacturer Product Nu.EEE-HD1V470AP
Manufacturer Standard L.34 Weeks
Maximum Operating Tempe.105 C
MfrPanasonic Electronic Co.
Minimum Operating Tempe.-40 C
Mounting TypeSurface Mount
Operating Temperature-40?C ~ 105?C
PackageTape & Reel (TR)
Package / CaseRadial, Can - SMD
PolarizationPolar
Product StatusActive
RatingsAEC-Q200
Ripple Current @ High F.134.3 mA @ 10 kHz
Ripple Current @ Low Fr.79 mA @ 120 Hz
SeriesHD Series, HD
Size / Dimension0.315" Dia (8.00mm)
Surface Mount Land Size0.327" L x 0.327" W (8..
TerminationSMD
Tolerance?20%, 20 %
Voltage - Rated35 V
Voltage Rating35 VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comEEE-HD1V470AP0.22612300PANASONIC0.226 @ 500
thumbzoomTMEEEEHD1V470AP0.328500500PANASONIC0.328 @ 500
thumbzoomNewark62W71960.3521500PANASONIC0.352 @ 500
thumbzoomDigi-Key19851450.391241500Panasonic Electronic Components0.39124 @ 500
us.rs-online.com700682970.845500Panasonic Electronic Components0.84 @ 500
