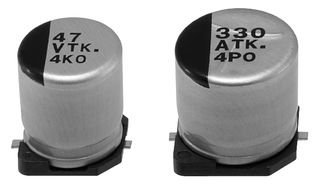

PANASONIC ELECTRONIC COMPONENTS EEE-TK1H102AM

PANASONIC ELECTRONIC COMPONENTS EEE-TK1H102AM

PANASONIC ELECTRONIC COMPONENTS EEE-TK1H102AMzoom

Attributes

Key Value
ApplicationsGeneral Purpose
Base Product NumberEEE-TK
Capacitance1000 uF, 1000 ?F
Capacitance Range1000 to 9999 uF
Case CodeK16
Case SizeDia. 0.709 x L 0.65 in .
CategoryCapacitors
ConfigurationRadial ; Can
DescriptionCAP ALUM 1000UF 20% 50V.
Detailed Description1000 ?F 50 V Aluminum E.
Digi-Key Part NumberPCE4903TR-ND - Tape & R.
Dimensions0.709 Dia. x 0.65 L ; 1.
Element MaterialAluminum Electrolytic
ESR140 mOhms
ESR (Equivalent Series .140mOhm @ 100kHz
Height - Seated (Max)0.650" (16.50mm)
Lead Spacing-
Lifetime @ Temp.2000 Hrs @ 125?C
ManufacturerPanasonic Electronic Co.
Manufacturer Product Nu.EEE-TK1H102AM
Manufacturer Standard L.34 Weeks
Maximum Operating Tempe.125 C
MfrPanasonic Electronic Co.
Minimum Operating Tempe.-40 C
Mounting TypePCB Mount, Surface Mount
Operating Temperature-40?C ~ 125?C
PackageTape & Reel (TR)
Package / CaseRadial, Can - SMD
PackagingTape & Reel
PolarizationPolar
Product StatusActive
Ratings-
Ripple Current @ High F.950 mA @ 100 kHz
Ripple Current @ Low Fr.712.5 mA @ 120 Hz
SeriesTK Series, TK
Size / Dimension0.709" Dia (18.00mm)
Special FeaturesAutomotive
Surface Mount Land Size0.748" L x 0.748" W (19.
TerminationSMD
Tolerance?20%, 20% %
Voltage - Rated50 V
Voltage Rating50 VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comEEE-TK1H102AM1.761125PANASONIC1.76 @ 1
thumbzoomTMEEEETK1H102AM1.7912555PANASONIC1.79 @ 125
thumbzoomNewark62W72862.811121PANASONIC2.81 @ 1
thumbzoomDigi-Key19755613.041710Panasonic Electronic Components3.04 @ 1
us.rs-online.com702586383.342112555Panasonic Electronic Components3.3421 @ 125
RS Delivers747-23895.676174Panasonic5.676 @ 1
