Panduit LCAF2/0-38F-X

B00B5OASC0

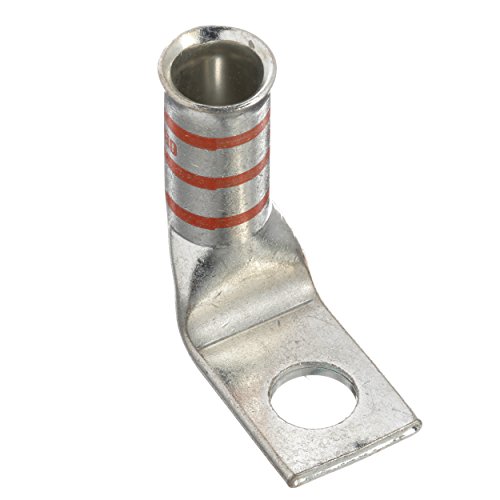

Panduit LCAF2/0-38F-X Flex Conductor Lug, One Hole, Standard Barrel With Window, Flared NEBS, 90 Degree Angle, 2/0 AWG Class K/M Conductor Size, 2/0 AWG Diesel Locomotive Size, 3/8" Stud Hole Size, Orange, 1-7/16" Wire Strip Length, 0.13" Tongue Thickness, 0.96" Tongue Width, 1.35" Neck Length, 1.77" Overall Length

Panduit LCAF2/0-38F-X Flex Conductor Lug, One Hole, Standard Barrel With Window, Flared NEBS, 90 Degree Angle, 2/0 AWG Class K/M Conductor Size, 2/0 AWG Diesel Locomotive Size, 3/8" Stud Hole Size, Orange, 1-7/16" Wire Strip Length, 0.13" Tongue Thickness, 0.96" Tongue Width, 1.35" Neck Length, 1.77" Overall Lengthzoom

Attributes

Key Value
Allowable Gauge Range2/0
ApprovalsCSA, UL
Base Product NumberLCAF
Cable Size2/0 AWG
CategoryConnectors, Interconnec.
ColorOrange
Color CodeOrange
Connection MaterialTin
Connection Type1 x Terminal
Connector TypeFlared Barrel
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
DescriptionCONN TERM RECT TONG 2/0.
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID0.510" (12.95mm)
Diameter - Barrel OD0.730" (18.54mm)
Diameter - Ring ID0.410" (10.41mm)
Digi-Key Part Number298-11663-ND
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight1.1 lbs
InsulationNon-Insulated
ItemLug Compression Connect.
Item NumberLCAF2/0-38F-X
Length1.77"
Length - Overall-
ManufacturerPanduit Corp, Panduit
Manufacturer Part NumberLCAF2/0-38F-X
Manufacturer Product Nu.LCAF2/0-38F-X
Manufacturer Standard L.2 Weeks
MaterialCopper, Tin-Plated Copp.
Material/CompositionCopper
Max Conductor Range2/0 AWG
MfrPanduit Corp
Min Conductor Range2/0 AWG
Mounting1-Hole
Mounting TypeFree Hanging (In-Line),.
Net Weight0 lbs
Number of Conductors1
Number of Holes1
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug LCAF Series, Pa.
Special FeaturesFlared Barrel
Stud Size3/8", 3/8 in
Stud/Tab Size3/8 Stud
Tab Thickness0.130" (3.30mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Type1 Hole
UPC Code074983877065
Width0.96"
Width - Outer Edges0.960" (24.38mm)
Wire Gauge2/0 AWG
Wire Size2/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCAF2/0-38F-X7.171In StockPANDUIT7.17 @ 1
RadwellLCAF2038FX12.16100In StockPANDUIT12.16 @ 100
thumbzoomDigi-Key456451412.93157Panduit Corp12.93 @ 1
thumbzoomNewark52AH072113.771In StockPANDUIT13.77 @ 1
thumbzoomZoroG077234014.931In Stock58Panduit1.114.93 @ 1
thumbzoomGalcoLCAF2/0-38F-X-PNDT15.9420In StockPanduit1.115.94 @ 20
thumbzoomPlatt.com014613316.961In StockPanduit16.96 @ 1
us.rs-online.com7079948917.87120Panduit17.87 @ 1
Airline HydraulicsPANDUIT LCAF2/0-38F-X19.211In StockPanduit Corp19.21 @ 1
thumbzoomCarlton Bates Company07498387706111.31In StockPANDUIT111.3 @ 1
thumbzoomgordonelectricsupply.comLCAF2/0-38F-X335.01In Stock12PANDUIT335.0 @ 1
