- mpnLCCX4-14A-L
- brandname: Panduit
- manufacturername: Panduit

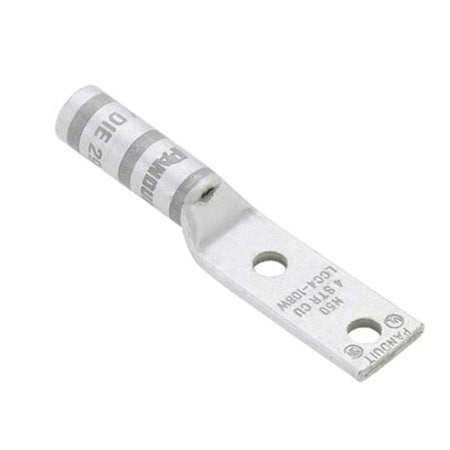

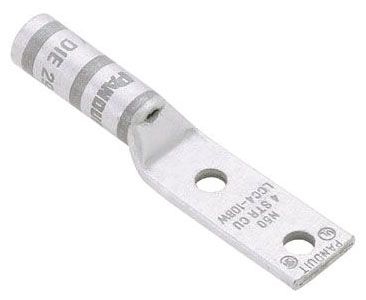

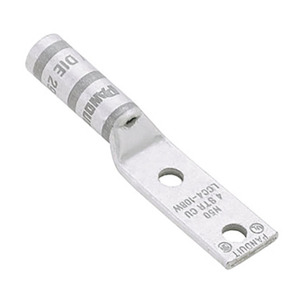

Panduit LCCX4-14A-L Flex Conductor Lug, Two Hole, Long Barrel With Window, 1/4" Stud Hole Size, 0.63" Stud Hole Spacing Width, Gray, #4 AWG Class G/H/I/K/M Conductor Size, #5, #4, #3
- Brand: Panduit
- PartNumber: LCCX4-14A-L
- Model: LCCX4-14A-L
- Color: Gray
- Size: 1/4
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 4 |
| amperage rating | Panduit?? |
| Application | Stainless Steel Cable T. |
| Approvals | CSA, UL |
| Base Product Number | LCCX |
| Brand | PANDUIT, Pan-Lug? |
| Cable Size | 4 AWG |
| Carton | 1 |
| Catalog Number | LCCX4-14A-L |
| Category | Connectors, Interconnec. |
| Category Description | Comp & Mech Lugs and Bu. |
| Classification | Comp & Mech Lugs and Bu. |
| Color | Gray |
| Color Code | Gray |
| Color Family | Gray |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Description | #4 2-H Comp Lug |
| Diameter - Barrel ID | 0.280" (7.11mm) |
| Diameter - Barrel OD | 0.380" (9.65mm) |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Die Color | Gray |
| ECCN | EAR99 |
| extra long description | PAN LCCX4-14A-L Pan-Lug. |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 1.9 lbs |
| GTIN | 00074983425457 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCCX4-14A-L |
| Item Type | Copper Compression Conn. |
| Length | 2.49" |
| Length - Overall | 2.490" (63.25mm) |
| Long Description | The LCCX4-14A-L Tin-Pla. |
| Lug Wire Size | 4 AWG |
| Made in USA | No |
| Manufacturer | PANDUIT |
| Manufacturer Part Number | LCCX4-14A-L |
| Manufacturers Part Numb. | LCCX4-14A-L |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 3 AWG |
| media | Yes |
| Mfr | Panduit Corp |
| Min Conductor Range | 5 AWG |
| Mounting | 39448, 1-1/8 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2 |
| Outer Diameter | 0.38 in. |
| Package | Bulk, 50 |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Pan-Lug LCCX4-14A-L Co. |
| RoHS Compliant | Yes |
| Series | Pan-Lug LCC Series, Pan. |
| Size | #4 AWG Class B, C, G, H. |
| Special Features | Long Barrel, Consult ca. |
| Standard | C22.2 No. 65-13, 486A-4. |
| standard | UL listed to 486A-486B . |
| Stud Hole Spacing | 0.63 in. |
| Stud Size | 44565, 1/4, 1/4", 1 1/4. |
| Stud/Tab Size | 1/4 Stud |
| sub brand | Panduit?? |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.090" (2.29mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Type | Compression Lug, Tin-Pl. |
| UNSPSC | 39121405 - Cable or wir. |
| UPC | 074983425457 |
| UPC Code | 074983425457 |
| Weight per each | 1.9 |
| Width | 0.55" |
| Width - Outer Edges | 0.550" (13.97mm) |
| Wire Gauge | 4 AWG |
| Wire Size | #4 AWG |
