Panduit LCD1-56C-E

B00B5NM21Q

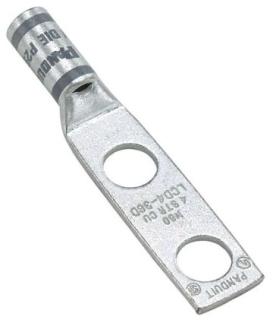

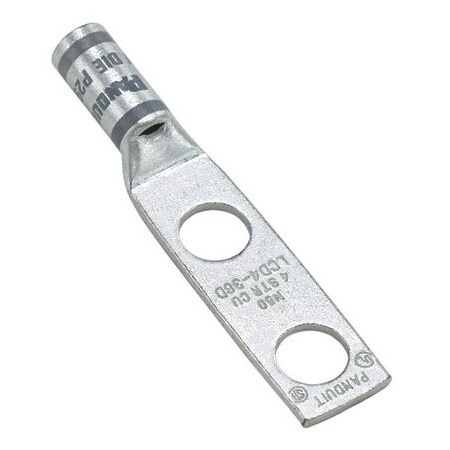

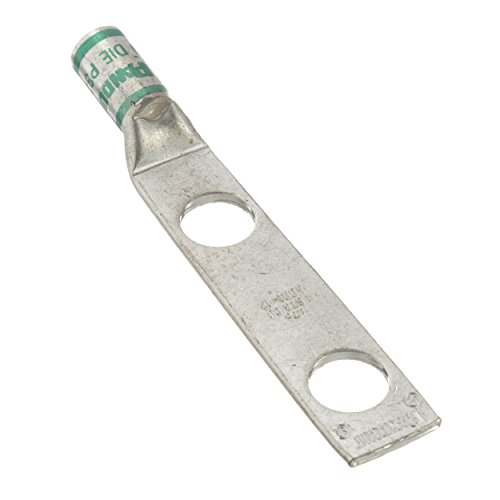

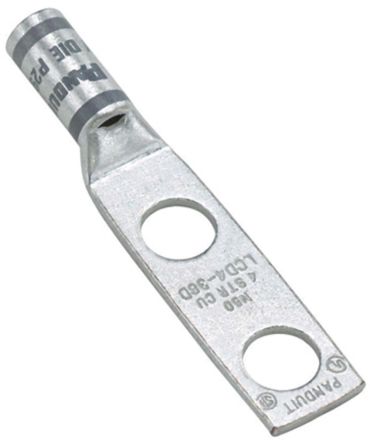

Panduit LCD1-56C-E Code Conductor Lug, Two Hole, Standard Barrel With Window, #1 AWG Copper Conductor Size, Green Color Code, 5/16" Stud Hole Size, 0.88" Stud Hole Spacing, 15/16" Wire Strip Length, 0.11" Tongue Thickness, 0.70" Tongue Width, 0.88" Neck Length, 2.79" Overall Length

Panduit LCD1-56C-E Code Conductor Lug, Two Hole, Standard Barrel With Window, #1 AWG Copper Conductor Size, Green Color Code, 5/16" Stud Hole Size, 0.88" Stud Hole Spacing, 15/16" Wire Strip Length, 0.11" Tongue Thickness, 0.70" Tongue Width, 0.88" Neck Length, 2.79" Overall Lengthzoom

Attributes

Key Value
ApprovalsCSA, UL
Base Product NumberLCD1
BrandPanduit
Cable Size1 AWG
CategoryConnectors, Interconnec.
ColorGreen
Color CodeGreen
ColourSilver
Connector TypeStandard Barrel
Contact FinishElectro-Tin
Contact MaterialCopper
Contact PlatingTin
Country of Origin (subj.Mexico
DescriptionCONN TERM RECT TONG 1 A.
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID0.360" (9.14mm)
Diameter - Barrel OD0.470" (11.94mm)
Diameter - Ring ID0.340" (8.64mm)
Digi-Key Part Number298-22238-ND
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight2.11 lbs
Inner Ring Diameter0.34in
InsulationNon-Insulated, Uninsula.
ItemLug Compression Connect.
Item NumberLCD1-56C-E
Length2.79"
Length - Overall2.790" (70.87mm)
ManufacturerPanduit Corp, Panduit
Manufacturer Part NumberLCD1-56C-E
Manufacturer Product Nu.LCD1-56C-E
MaterialTin-Plated Copper
Material/CompositionCopper
Max Conductor Range1 AWG
Maximum Wire Size AWG1AWG
MfrPanduit Corp
Min Conductor Range1 AWG
Minimum Wire Size AWG1AWG
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
Number of Conductors1
Number of Holes2
Outer Ring Diameter0.7in
Overall Length70.9mm
PackageBulk
Product SeriesPan-Lug Compression
Product StatusObsolete
RoHS CompliantYes
SeriesLCD, Pan-Lug LCD Series.
Stud Size5/16", 5/16in
Stud/Tab Size5/16 Stud
Tab Thickness0.110" (2.79mm)
Terminal StyleTwo Stud Holes
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Thickness0.11in
Type2 Hole
UPC Code074983382965
Width0.7"
Width - Outer Edges0.700" (17.78mm)
Wire Gauge1 AWG
Wire Size1 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomalldataresource.comLCD1-56C-E6.631In StockPanduit6.63 @ 1
thumbzoomDigi-Key45661668.516Panduit Corp8.5 @ 1
thumbzoomGalcoLCD1-56C-E-PNDT10.941In StockPanduit2.1110.94 @ 1
thumbzoomgordonelectricsupply.comLCD1-56C-E11.51In Stock12PANDUIT11.5 @ 1
Onlinecomponents.comLCD1-56C-E11.5714PANDUIT11.57 @ 1
thumbzoomZoroG077720713.261In Stock33Panduit2.1213.26 @ 1
us.rs-online.com7004510913.421In StockPanduit13.42 @ 1
thumbzoomRS Delivers847-873214.581In StockPanduit14.58 @ 1
thumbzoomturtle.comPAN LCD1-56C-E486.661In StockPanduit486.66 @ 1
