Panduit

mpnP10-14R-D
brandname: Panduit
manufacturername: Panduit

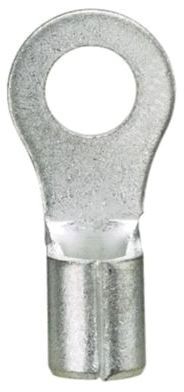

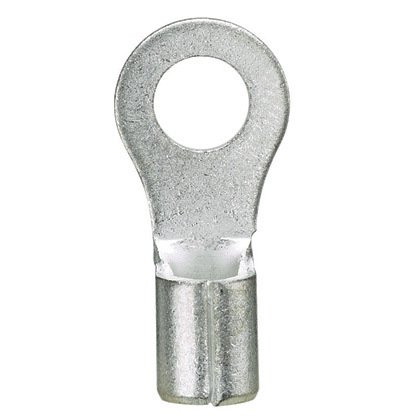

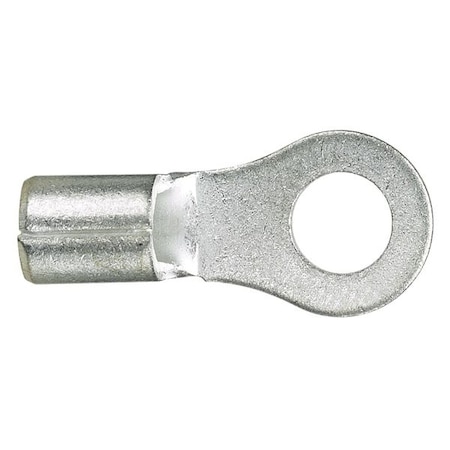

Panduit P10-14R-D PAND #10 N/I RG TERM

Brand: Panduit
Manufacturer: Panduit
Label: Panduit

Attributes

Key	Value
Allowable Gauge Range	14 - 10
Alternate Parts	P10-14R
Approval	Approval
Approvals	CSA, UL
AWG Range	#10
Base Product Number	P10
Brand	Pan-Term?
Category	Connectors, Interconnec.
Color	-, Silver
Color Family	Metallic
Connection Material	Copper
Connection Type	Crimp
Connector Type	Ring Terminal
Contact Finish	Tin
Contact Material	Copper
Country of Origin	MX - Mexico
Country of Origin (subj.	Unknown, Mexico
Description	CONN RING CIRC 10-14AWG.
Detailed Description	Ring Terminal Connector.
Digi-Key Part Number	298-10048-ND
ECCN	EAR99
Family Series	Panduit Terminals, Pan-.
Features	Brazed Seam, Serrated T.
Finish	Tin-Plated
For Use With	CT-100, CT-200, CT-1570.
Green Environmental Att.	Does Not Contain PVC
Gross Weight	0 lbs
Insulated	Non-Insulated
Insulation	Non-Insulated, Insulati.
Insulation Color	Bare, Insulation Color
Insulation Diameter	-
Insulation Type	Non-Insulated, Bare
Item	Ring Terminal
Item Number	P10-14R-D
Lead Free Status / RoHS.	RoHS Compliant
Length - Overall	0.960" (24.38mm)
Manufacturer	Panduit Corp, Panduit
Manufacturer Part Number	P10-14R-D
Manufacturer Product Nu.	P10-14R-D
Manufacturer Standard L.	2 Weeks, 4 Weeks
Material	Copper
Material - Insulation	-
Max Temp	302 ?F
Max. Temp.	302 Degrees F
Max. Voltage	2,000 V
Mfr	Panduit Corp
Mounting Type	Free Hanging (In-Line)
Net Weight	0 lbs
Outer Diameter	0.22 in.
Overall Length	0.96 in
Package	Bulk
Package Quantity	500
Packaging	Bulk Pack
Plating Material	Tin
Product Series	Pan-Term Terminals
Product Status	Active
Rated Voltage	2000V
RoHS Compliant	Yes
Seam	Brazed
Series	Pan-Term?, Pan-Term
Standard Package	500
Standards	CSA C22.2 No. 65, UL486.
Stud Size	Stud Size, 1/4 in, 1/4 .
Stud/Tab Size	1/4 Stud
Temperature Rating	Temperature Rating
Terminal Connection	Crimp
Terminal Material	Copper
Terminal Type	Ring, Terminal Type, Ci.
Termination	Crimp
Thickness	0.040" (1.02mm)
Tongue Width - Wire Con.	0.52 in
Type	Ring Tongue
UNSPSC	39121409
UPC Code	074983802357
UPC ID	UPC ID
Use With	CT-100, CT-200, CT-1570.
Volts	2,000 V
Width	0.52 in.
Width - Outer Edges	0.520" (13.21mm)
Wire Gauge	10-14 AWG
Wire Range	14 to 10 AWG, Wire Range
Wire Size	12-10 AWG, 10-14 AWG
Wire Size (AWG)	10 AWG, 11 AWG, 12 AWG
Wire Strip Length	0.281 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
i-components	P10-14R-D	0.083	1	229775		Panduit	0.083 @ 100
NEP Electronics	P10-14R-D	0.175	25	100		Panduit	0.175 @ 100
Onlinecomponents.com	P10-14R-D	0.184	1	1171		PANDUIT	0.184 @ 100
Hotenda	H1656386	0.2162	1	100		Panduit	0.2162 @ 100
French Gerleman	PANDP1014RD	0.24	500	100		Panduit	0.24 @ 500
Galco	P10-14R-D-PNDT	0.24	500	100		Panduit	0.24 @ 500
mecampbell.com	PANP10-14R-D	0.25	500	100	151	Panduit	0.25 @ 500
us.rs-online.com	71091522	0.25602	10	100		Panduit	0.25602 @ 100
iodParts	P10-14R-D	0.269	1000	1500		Panduit	0.269 @ 1000
Digi-Key	450046	0.2789	1	1606		Panduit Corp	0.2789 @ 100
Platt.com	0219568	0.29	1	100		Panduit	0.29 @ 100
Airline Hydraulics	PANDUIT P10-14R-D	0.3	1	100		Panduit Corp	0.3 @ 100
Newark	14AC0852	0.361	1	411		PANDUIT	0.361 @ 100
Carlton Bates Company	07498380235	105.0	1	100		PANDUIT	105.0 @ 100
Zoro	G0287920	112.87	1	100		Panduit	112.87 @ 100
alldataresource.com	PAN-P10-14RD	116.08	1	100		Panduit	116.08 @ 100
gordonelectricsupply.com	P10-14R-D	129.0	1	100	12	PANDUIT	129.0 @ 100
jensentools.com	10016697	136.33	1	100		Panduit	136.33 @ 100
steinerelectric.com	71029	244.55	1	100		Panduit	244.55 @ 100
Raptor Supplies	AH8XYF	245.0907225	1	100		PANDUIT	245.0907225 @ 100
turtle.com	PAN P10-14R-D	289.3	1	100		Panduit	289.3 @ 100
Graybar	88198431	320.656	500	100		Panduit	320.656 @ 500
