- mpnP10-56R-L
- brandname: Panduit
- manufacturername: Panduit

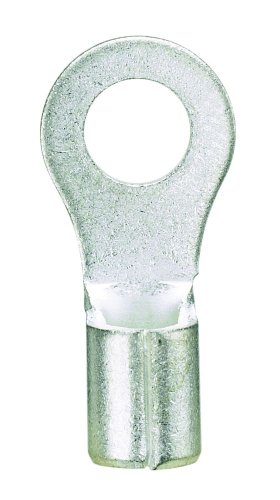

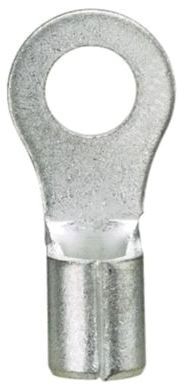

Panduit P10-56R-L Ring Terminal, Non-Insulated, 14 - 10 AWG, 5/16-Inch Stud Size (50-Pack)
- Brand: Panduit
- PartNumber: P10-56R-L
- Model: P10-56R-L
- Size: 5/16"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 12 - 10 |
| Approval | Approval |
| Approvals | CSA, UL |
| AWG Range | #10 |
| Barrel Inside Diameter | 0.13 in |
| Barrel Length | 0.35 in |
| Barrel Outside Diameter | 0.52 in |
| Barrel Style | Serrated Barrel |
| Base Product Number | P10 |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Color | - |
| Compatible Grainger Par. | 376T32, 376T39, 376T59,. |
| Compatible Manufacturer. | CT-100A, CT-1570, CT-16. |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN RING CIRC 10-12AWG. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-15102-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam, Serrated T. |
| Finish | Tin-Plated |
| For Wire Size | 10 AWG, 12 AWG |
| For Wire Sizes | 12 AWG to 10 AWG |
| Green Environmental Att. | Does Not Contain PVC |
| Gross Weight | 0.01 lbs |
| Hole Diameter | 0.33 in |
| Insulated | Non-Insulated |
| Insulation | Non-Insulated, Insulati. |
| Insulation Color | Bare, Insulation Color |
| Insulation Colour | Bare |
| Insulation Coverage | None |
| Insulation Diameter | - |
| Insulation Material | None |
| Insulation Type | Non-Insulated |
| Item | Ring Terminal |
| Item Number | P10-56R-L |
| Length - Overall | 0.950" (24.13mm) |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | P10-56R-L |
| Manufacturer Product Nu. | P10-56R-L |
| Manufacturer Standard L. | 2 Weeks |
| Material | Copper |
| Material - Insulation | - |
| Max Temp | 302 ?F |
| Max. Temp. | 302 Degrees F |
| Max. Voltage | 2,000 V |
| Maximum Operating Tempe. | 302 Degrees F |
| Maximum Voltage | 2,000V, 2,000 V |
| Maximum Wire Size | 10 AWG |
| Mfr | Panduit Corp |
| Minimum Operating Tempe. | 302 Degrees F, 302 Deg. |
| Minimum Wire Size | 12 AWG |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0.01 lbs |
| Outer Diameter | 0.22 in. |
| Overall Length | 0.96 in |
| Package | Bulk |
| Package Quantity | 50 |
| Packaging | 50 Per Package |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Rated Voltage | 2000V |
| Ring Width Ranges | 0.51 - 0.75 inches |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Series | Pan-Term? |
| Size | 5/16 in |
| Special Features | Ring Tongue Design Assu. |
| Standards | UL486A-486B, CSA C22.2 . |
| Strip Length | 1/4 in |
| Stud Size | Stud Size, 5/16 ", 5/16. |
| Stud/Tab Size | 5/16 Stud |
| Temperature Rating | Temperature Rating |
| Terminal Connection | Crimp |
| Terminal Material | Copper |
| Terminal Shape | Ring Terminal |
| Terminal Type | Ring, Terminal Type, Ci. |
| Termination | Crimp |
| Termination Style | Crimp |
| Thickness | 0.040" (1.02mm) |
| Tongue Length | 0.13 in |
| Tongue Thickness | 0.04 in |
| Tongue Width | 0.52 in |
| Tongue Width - Wire Con. | 0.52 in |
| Type | Ring Terminal |
| Unspsc | Unspsc |
| UNSPSC | 39121409 |
| UPC ID | UPC ID |
| Use With | CT-100, CT-200, CT-1570. |
| Volts | 2,000 V |
| Width | 0.52 in. |
| Width - Outer Edges | 0.520" (13.21mm) |
| Wire Gauge | 10-12 AWG |
| Wire Range | 12 to 10 AWG, Wire Range |
| Wire Size | 12-10 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.281 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | P10-56R-L | 0.66 | 1 | 200 | | PANDUIT | | 0.66 @ 50 |
 | mecampbell.com | PANP10-56R-L | 0.66 | 50 | 50 | 151 | Panduit | | 0.66 @ 50 |
| Onlinecomponents.com | P10-56R-L | 0.68 | 1 | 915 | | PANDUIT | | 0.68 @ 50 |
 | Galco | P10-56R-L-PNDT | 0.73 | 250 | 100 | | Panduit | 0.01 | 0.73 @ 250 |
 | Platt.com | 0654455 | 0.78 | 1 | 50 | | Panduit | | 0.78 @ 50 |
| Airline Hydraulics | PANDUIT P10-56R-L | 0.8 | 1 | 50 | | Panduit Corp | | 0.8 @ 50 |
| us.rs-online.com | 72259993 | 0.87573 | 250 | 50 | | Panduit | | 0.87573 @ 250 |
 | Newark | 13AC4771 | 0.902 | 250 | 50 | | PANDUIT | | 0.902 @ 100 |
 | Digi-Key | 450053 | 0.9382 | 1 | 1874 | | Panduit Corp | | 0.9382 @ 50 |
 | alldataresource.com | 604248 | 1.32 | 1 | 50 | | Panduit | | 1.32 @ 50 |
 | Zoro | G0287896 | 36.89 | 1 | 50 | | Panduit | 0.25 | 36.89 @ 50 |
 | Carlton Bates Company | 07498380236 | 37.0 | 1 | 50 | | PANDUIT | | 37.0 @ 50 |
| grainger.ca | WWG39AY94 | 44.49916586 | 1 | 50 | | PANDUIT | 0.25 | 44.49916586 @ 50 |
 | Raptor Supplies | AH8XYK | 68.985189 | 1 | 50 | | PANDUIT | | 68.985189 @ 50 |
| Graybar | 88198437 | 74.0544 | 50 | 50 | | Panduit | | 74.0544 @ 50 |
 | turtle.com | PAN P10-56R-L | 78.19 | 1 | 50 | | Panduit | | 78.19 @ 50 |
| steinerelectric.com | 61478 | 88.78 | 1 | 50 | | Panduit | | 88.78 @ 50 |
 | gordonelectricsupply.com | P10-56R-L | 175.23 | 1 | 50 | 12 | PANDUIT | | 175.23 @ 50 |
