Panduit P14-6R-C

mpnP14-6R-C
brandname: Panduit
manufacturername: Panduit

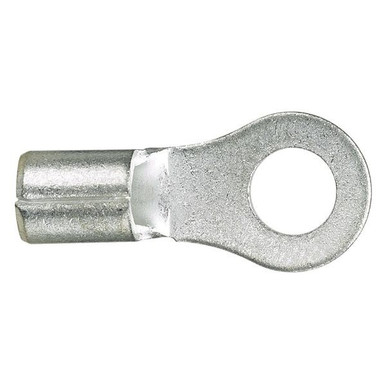

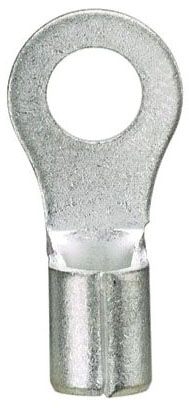

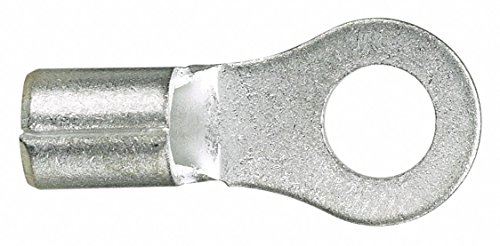

Panduit P14-6R-C Ring Terminal, 18 - 14 AWG, #6 Stud Size, Non-Insulated

Brand: Panduit
PartNumber: P14-6R-C
Model: P14-6R-C
PackageQuantity: 1
Binding: Misc.
Manufacturer: Panduit
Label: Panduit

Attributes

Key	Value
Allowable Gauge Range	18 - 14
Alternate Part No.	644-P14-6R-C
Approval	Approval
Approvals	CSA, UL
AWG Range	#14
Barrel Inside Diameter	0.09 in
Barrel Length	0.25 in
Barrel Outside Diameter	0.09 in
Barrel Style	Serrated Barrel
Base Product Number	P14
Brand	Pan-Term?, Panduit
Category	Connectors, Interconnec.
Color	-, Silver, Metallic
Color Family	Metallic
Compatible Grainger Par.	376T32, 376T39, 376T59,.
Compatible Manufacturer.	CT-100, CT-100A, CT-157.
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper
Contact Plating	Tin
Country of Origin	MX - Mexico
Country of Origin (subj.	Mexico
Current Stock	In Stock
Description	CONN RING CIRC 14-18AWG.
Detailed Description	Ring Terminal Connector.
Digi-Key Part Number	298-15137-ND
ECCN	EAR99
Family Series	Panduit Terminals, Pan-.
Features	Brazed Seam, Serrated T.
Finish	Tin-Plated
For Wire Size	14 AWG, 16 AWG, 18 AWG
For Wire Sizes	18 AWG to 14 AWG
Green Environmental Att.	Does Not Contain PVC
Gross Weight	0.0015 lbs
Hole Diameter	0.15 in
Insulated	Non-Insulated
Insulation	Non-Insulated, Insulati.
Insulation Color	Bare, Insulation Color
Insulation Colour	Bare
Insulation Coverage	None
Insulation Diameter	-
Insulation Material	None
Insulation Type	Non-Insulated
International Shipping	No
Item	Ring Terminal
Item Number	P14-6R-C
Length	15.8 mm
Length - Overall	0.620" (15.75mm)
Manufacturer	Panduit Corp, Panduit
Manufacturer Part No.	P14-6R-C
Manufacturer Part Number	P14-6R-C
Manufacturer Product Nu.	P14-6R-C
Manufacturer Standard L.	3 Weeks
Material	Copper
Material - Insulation	-
Max Temp	302 ?F
Max. Temp.	302 Degrees F
Max. Voltage	2,000 V
Maximum Operating Tempe.	302 Degrees F
Maximum Voltage	2,000V, 2,000 V
Maximum Wire Size	14 AWG
Mfr	Panduit Corp
Minimum Operating Tempe.	302 Degrees F, 302 Deg.
Minimum Wire Size	18 AWG
Mounting Method	Wire
Mounting Type	Free Hanging (In-Line)
Mpn	P14-6R-C
Net Weight	0.0015 lbs
Outer Diameter	0.16 in.
Overall Length	0.62 in
Package	Bulk
Package Quantity	100
Packaging	100 Per Bottle
Plating Material	Tin
Product	Ring Terminals
Product Category	Terminals
Product Series	Pan-Term Terminals
Product Status	Active
Rated Voltage	2000V
Ring Width Ranges	0.00 - 0.25 inches
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Brazed
Series	Pan-Term?, P14
Shop By	Closeouts
SKU	ZO-G0287799
Special Features	Ring Tongue Design Assu.
Standards	UL486A-486B, CSA C22.2 .
Strip Length	1/4 in
Stud Size	Stud Size, #6
Stud/Tab Size	# 6, 6 Stud
SubCategory	Electrical
Temperature Rating	Temperature Rating
Terminal Connection	Crimp
Terminal Material	Copper
Terminal Shape	Ring Terminal
Terminal Type	Ring, Terminal Type, Ci.
Termination	Crimp
Termination Style	Crimp
Thickness	0.030" (0.76mm)
Tongue Thickness	0.03 in
Tongue Width	0.25 in
Tongue Width - Wire Con.	0.62 in
Type	Non-Insulated, Ring Ton.
UL Standards	UL 486A-486B
Unit Weight	77.111 g
Unspsc	Unspsc
UNSPSC	39121409
UPC	074983802166
UPC ID	UPC ID
Use With	CT-100, CT-1570, CT-230.
Volts	2,000 V
Width	0.25 in., 0.25 in
Width - Outer Edges	0.250" (6.35mm)
Wire Gauge	14-18 AWG, 18-14
Wire Range	16 to 14 AWG, Wire Range
Wire Size	18-14 AWG
Wire Size (AWG)	14 AWG, 15 AWG, 16 AWG,.
Wire Strip Length	0.281 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
cbtcompany.com	P14-6R-C	0.38	1	100		PANDUIT		0.38 @ 100
mecampbell.com	PANP14-6R-C	0.38	100	100	151	Panduit		0.38 @ 100
Galco	P14-6R-C-PNDT	0.39	100	100		Panduit	0.0015	0.39 @ 100
Onlinecomponents.com	P14-6R-C	0.421	1	143		PANDUIT		0.421 @ 100
Platt.com	0016110	0.45	1	100		Panduit		0.45 @ 100
Airline Hydraulics	PANDUIT P14-6R-C	0.46	1	100		Panduit Corp		0.46 @ 100
Digi-Key	317713	0.5158	1	3509		Panduit Corp		0.5158 @ 100
us.rs-online.com	72260001	0.60221	4	100		Panduit		0.60221 @ 100
Component Electronics	516N-6D	0.74	1	200		Panduit Corp		0.74 @ 100
swatee.com	P14-6R-C	0.91	1	124		Panduit		0.91 @ 100
Zoro	G0287799	34.69	1	100		Panduit	0.21	34.69 @ 100
gordonelectricsupply.com	P14-6R-C	40.49	1	100	12	PANDUIT		40.49 @ 100
alldataresource.com	330270	42.6	1	100		Panduit		42.6 @ 100
turtle.com	PAN P14-6R-C	45.25	1	100		Panduit		45.25 @ 100
Graybar	88198479	48.8544	100	100		Panduit		48.8544 @ 100
simsupply.com	ZO-G0287799	51.24	1	100		Panduit		51.24 @ 100
grainger.ca	WWG39AZ07	51.3144842	1	100		PANDUIT	0.21	51.3144842 @ 100
Raptor Supplies	AH8XYY	78.2256735	1	100		PANDUIT		78.2256735 @ 100
