- mpnPANDNF14-250FIM-L
- brandname: Panduit
- manufacturername: Panduit

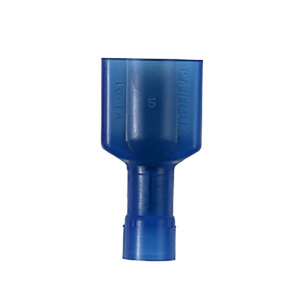

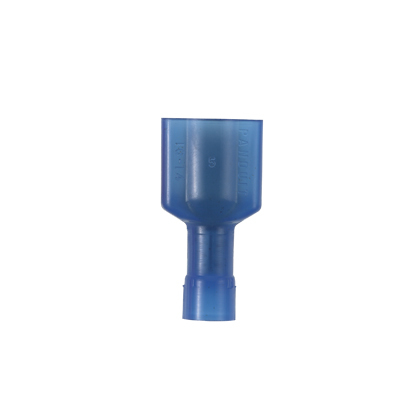

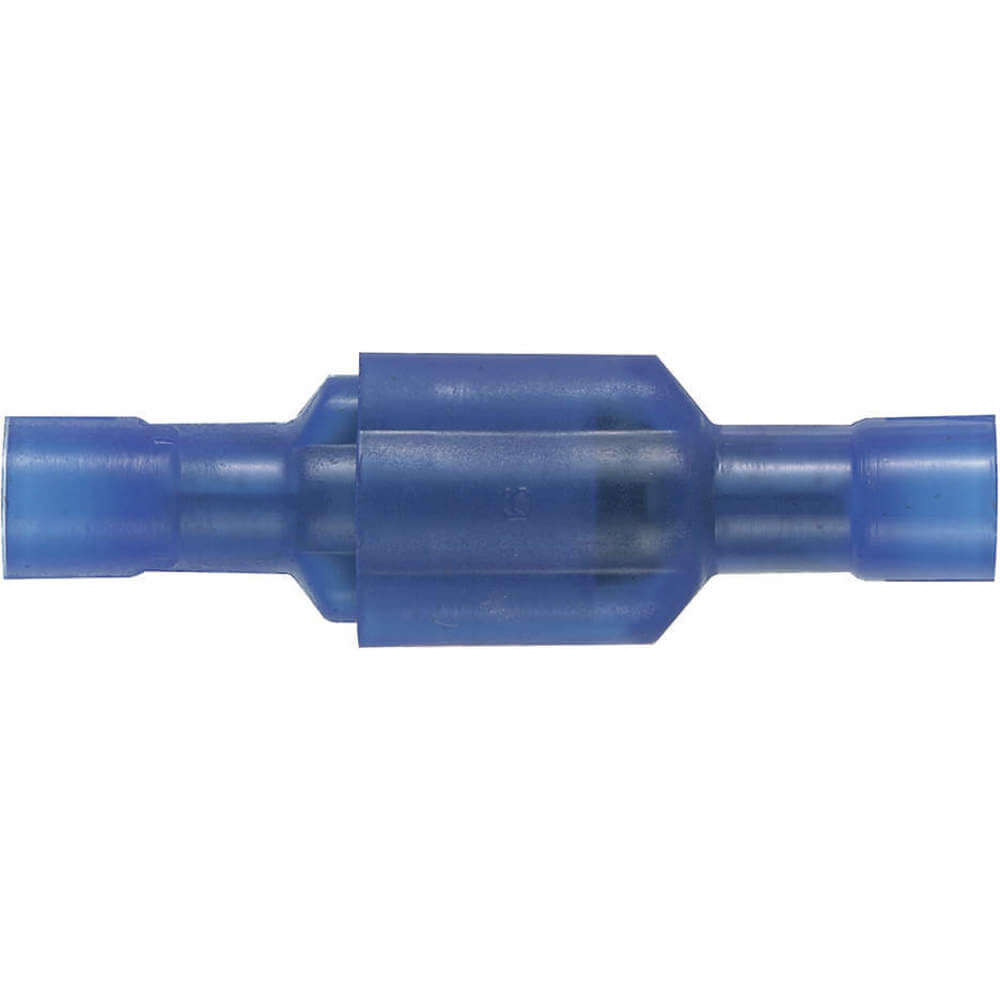

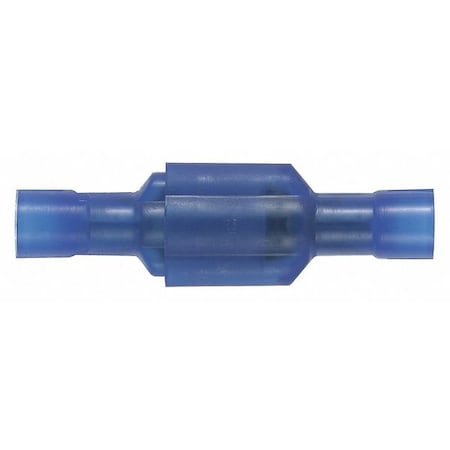

Panduit DNF14-250FIM-L Male Disconnect, Nylon Fully Insulated, 16 - 14 AWG, .250 by .032-Inch Tab Size, Blue (50-Pack)
- Brand: Panduit
- PartNumber: DNF14-250FIM-L
- Model: DNF14-250FIM-L
- Color: Blue
- Size: 0.250 x 0.032
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 16 - 14 |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| AWG Range | #14 |
| Barrel Inside Dia. | 0.09 in |
| Barrel Inside Diameter | 0.09 in |
| Barrel Style | Funnel Entry |
| Barrel Type | Funnel, Butted Seam, Fu. |
| Base Material | Brass |
| Base Product Number | DNF14 |
| Brand | Pan-Term? |
| Brand Name | Panduit |
| Buy American Compliant | Y |
| California Pro65 Cancer | No |
| Category | Connectors, Interconnec. |
| Color | Blue |
| Color Code | Blue |
| Color Family | Blue |
| Conductor Size | 16-14 AWG |
| Connection Material | Nickel-Plated Brass |
| Connection Type | Crimp |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Country of Origin | MX - Mexico |
| Country Of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| Description | CONN QC TAB 14-16AWG 0.. |
| Detailed Description | 0.250" (6.35mm) Quick C. |
| Digi-Key Part Number | 298-11990-ND |
| Disconnect Style | Tab |
| Disconnect Type | Male Tab Disconnect |
| EAN | 00074983521678 |
| ECCN | EAR99 |
| Energy Star Flag | No |
| Environmental Conditions | HB Flammability Rated P. |
| Family Series | Panduit Terminals, Pan-. |
| Features | Serrated Termination |
| Finish | Nickel Plated, Nickel-P. |
| Finish/Coating | Nickel-Plated |
| Flammability Rating | UL94-HB |
| For Use With | CT-1525, CT-2300/ST (CD. |
| For Wire Size | 14 AWG, 16 AWG |
| Gender | Male |
| Gross Weight | 0.0129 lbs |
| GTIN | 00074983521678 |
| GTIN Carton | 50074983521673 |
| GTIN Package | 00074983521678 |
| Hazardous Material Flag | N |
| Height | 0.27 in. |
| Insulated | Insulated |
| Insulation | Fully Insulated, Full |
| Insulation Color | Blue |
| Insulation Coverage | Full Coverage |
| Insulation Diameter | 0.158" (4.01mm) |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated, Nylon |
| Item | Male Disconnect |
| Item Name | Tab Disconnect |
| Item Number | DNF14-250FIM-L |
| Lead Content Indicator | Y |
| Length - Overall | 0.900" (22.86mm) |
| Made In America | Yes |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Name | Panduit |
| Manufacturer Part Number | DNF14-250FIM-L |
| Manufacturer Product Nu. | DNF14-250FIM-L |
| Manufacturer Standard L. | 2 Weeks |
| Material | Brass |
| Max Temp | 221 ?F |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Copper Conducto. | #14 |
| Maximum Metric Conducto. | 2.5 |
| Maximum Operating Tempe. | 221 Degrees F |
| Maximum Operating Tempe. | 105 |
| Maximum Operating Tempe. | 221 |
| Maximum Voltage | 600 V |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation. | 0.158 |
| Maximum Wire Insulation. | 4.01 |
| Maximum Wire Size | 14 AWG |
| Maximum Wire Size (AWG) | #14 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Order Qty | 250 |
| Min. Order UOM | Piece |
| Minimum Metric Conducto. | 1.5 |
| Minimum Operating Tempe. | -60 Degrees F |
| Minimum Wire Size | 16 AWG |
| Minimum Wire Size (AWG) | #16 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0.0129 lbs |
| Note | DNF14-250FIM-L replaces. |
| Overall Height (In.) | 0.27 |
| Overall Height (mm) | 6.9 |
| Overall Length | 0.9, 0.9 in |
| Overall Length (In.) | 0.9 |
| Overall Length (mm) | 22.9 |
| Overall Width (In.) | 0.42 |
| Overall Width (mm) | 10.7 |
| Package | Bulk |
| Package Quantity | 50 |
| Packaging | 50 per Package |
| Packaging Type | Bottle |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Plating Material | Nickel |
| Product Segment | IEI |
| Product Series | Pan-Term Disconnects |
| Product Status | Active |
| Product Type | Disconnect |
| Rated Voltage | 600V |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| RoHS Flag | Yes |
| Seam | Butted |
| Seam Style | Butted |
| Series | Pan-Term? |
| Size | 0.42 Inch Width |
| Special Features | Barrel Serrations Assur. |
| Standard Carton Volume . | 0.0641 |
| Standard Carton Weight . | 0.7750 |
| Standard Pack/Case Quan. | 50/Pack |
| Standard Package Volume. | 0.0128 |
| Standard Package Weight. | 0.1550 |
| Standards | American Bureau of Ship. |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Std Carton Height In | 4.4 |
| Std Carton Height MM | 111.76 |
| Std Carton Length In | 9.85 |
| Std Carton Length MM | 250.19 |
| Std Carton Width In | 2.5 |
| Std Carton Width MM | 63.5 |
| Std Ctn Qty | 250 |
| Std Package Height In | 1.95 |
| Std Package Height MM | 49.53 |
| Std Package Length In | 4.35 |
| Std Package Length MM | 110.49 |
| Std Package Width In | 1.95 |
| Std Package Width MM | 49.53 |
| Std. Pkg. Qty. | 50 |
| Std. Pkg. UOM | Piece |
| Strip Length | 5/16 in |
| Stud Size | No |
| Sub Brand | Pan-Term? |
| Tab Length | - |
| Tab Size | 0.25 x 0.032 ", 0.032 i. |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Tab Thickness | 0.032" (0.81mm), 0.032 . |
| Tab Width | 0.250" (6.35mm), 0.25 in |
| Temperature Rating | 105 deg C |
| Terminal Connection | Male |
| Terminal Material | Brass |
| Terminal Type | Disconnect - Male, Tab,. |
| Terminal Types | Male Tab |
| Termination | Crimp |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Type | Fully-Insulated, Discon. |
| UL 94 Flammability Rati. | HB |
| Unspsc | Unspsc |
| UNSPSC | 39121447, 39121409 |
| UOM EA PK | PK |
| UPC | 07498352167 |
| Use With | CT-1525, CT-2300/ST (CD. |
| Voltage Rating | 600 Volt |
| Volts | 600 V |
| Width | 0.42 in. |
| Wire Gauge | 14-16 AWG |
| Wire Range | 16 to 14 AWG |
| Wire Size | Wire Size, 16-14 AWG |
| Wire Size (AWG) | 14 AWG, 15 AWG, 16 AWG |
| Wire Size Range | 16 AWG - 14 AWG |
| Wire Strip Length | 0.281 " |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
