- mpnPANFSD77-12-D
- brandname: Panduit
- manufacturername: Panduit

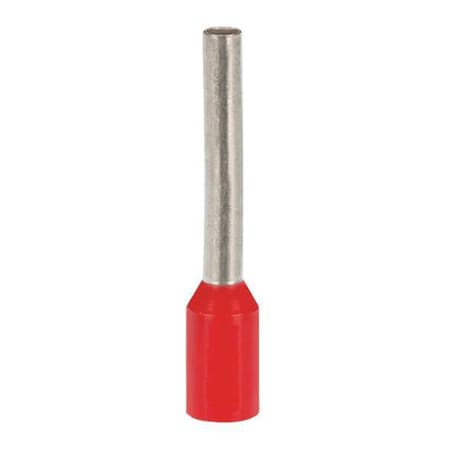

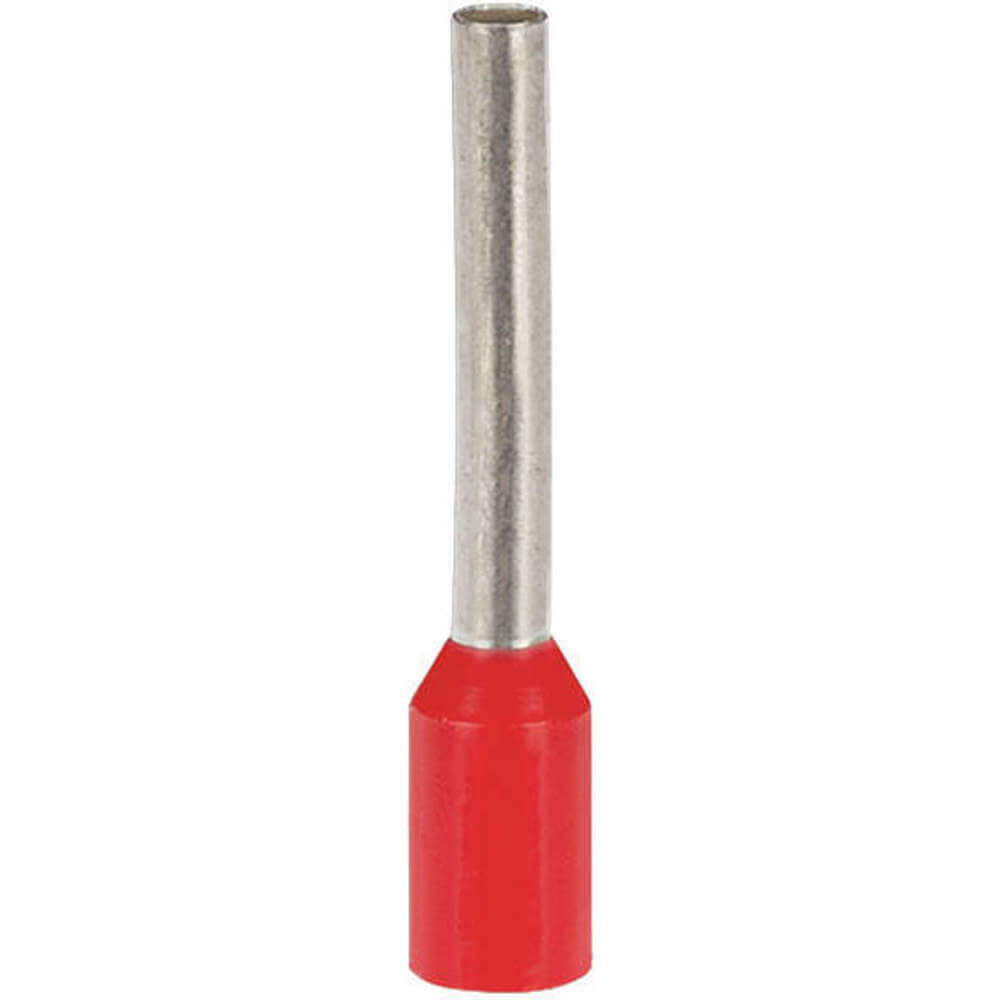

Panduit FSD77-12-D Insulated Ferrule, Single Wire, 18 AWG (1.0mm?), 0.47-Inch Pin Length, Red DIN End Sleeve (500-Pack)
- Brand: Panduit
- PartNumber: FSD77-12-D
- Model: FSD77-12-D
- Color: Red
- Size: 18 AWG , .47-Inch Pin Length
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 18 |
| Approvals | CSA |
| Barrel Diameter | 0.12 in |
| Barrel Finish | Tin Plated |
| Barrel Length | 0.26 in |
| Barrel Material | Copper |
| Base Product Number | FSD77 |
| Brand | Pan-Term?, Panduit |
| Category | Connectors, Interconnec. |
| Color | Color, Red |
| Color Family | Red |
| Compatible Grainger Par. | 376U38, 376U39, 377M39,. |
| Compatible Manufacturer. | CP-991, CT-1002, CT-100. |
| Compatible with Product. | Terminal Block |
| Compatible with Series | CT |
| Connection Material | Tinned |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | DE - Germany |
| Country of Origin (subj. | Germany |
| Current Stock | 57 |
| DIN Standard | DIN46228PART1 |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Funnel Entry, Seamless . |
| Ferrule Diameter | 0.07 in |
| Ferrule Material | Copper |
| Finish | Tin-Plated |
| For Wire Size | 18 AWG |
| Gross Weight | 0.00001 lbs |
| Insertion Length | 5/8 in |
| Insulated | Yes |
| Insulation | Insulation, Insulated |
| Insulation Color | Red |
| Insulation Colour | Red |
| Insulation Coverage | Partially Insulated |
| Insulation Material | Polypropylene |
| Insulation Type | Self-Insulated, Polypro. |
| International Shipping | No |
| Item | Ferrule |
| Item Number | FSD77-12-D |
| Length | Length, 0.470 in |
| Length - Overall | 18.50mm |
| Length - Pin | 12.00mm |
| Manufacturer | Panduit |
| Manufacturer Part Number | FSD77-12-D |
| Material | Copper |
| Max. Temp. | 221 Degrees F |
| Maximum Conductors | 1 |
| Maximum Operating Tempe. | 221 Degrees F |
| Maximum Wire Size | 18 AWG |
| Mfr | Panduit Corp |
| Minimum Operating Tempe. | -60 Degrees F, -60 Deg. |
| Minimum Wire Size | 18 AWG |
| Mpn | FSD77-12-D |
| Net Weight | 0.00001 lbs |
| Number of Wires | 1 |
| Overall Length | 0.73 in |
| Overall Length (in) | 0.73 " |
| Package | Bulk |
| Part Status | Active |
| Product Series | Pan-Term Ferrules |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Size | 18 AWG (1.00mm?) |
| SKU | ZO-G2276605 |
| Special Features | Funnel Entry, Seamless . |
| Standards | DIN, UL |
| Strip Length | 5/8 in |
| Strip Length (in) | 0.63 " |
| Style | DIN |
| SubCategory | Electrical |
| Termination Style | Crimp |
| Type | Single Wire, Ferrule |
| UNSPSC | 39121409 |
| UPC | 074983762545 |
| Use With | CT-1002, CT-1003, CT-10. |
| Wire Range | 18 AWG |
| Wire Size | 18 AWG, Wire Size |
| Wire Size Range | 18 AWG - 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H1485705 | 0.14556 | 1 | 500 | | Panduit | | 0.14556 @ 500 |
 | cbtcompany.com | FSD77-12-D | 0.17 | 1 | 500 | | PANDUIT | | 0.17 @ 500 |
 | mecampbell.com | PANFSD77-12-D | 0.19 | 500 | 500 | 56 | Panduit | | 0.19 @ 500 |
 | Galco | FSD77-12-D-PNDT | 0.19 | 500 | 500 | | Panduit | 1e-05 | 0.19 @ 500 |
| Digi-Key | 448658 | 0.19748 | 1000 | 4175 | | Panduit Corp | | 0.19748 @ 500 |
 | Platt.com | 0642847 | 0.21 | 1 | 500 | | Panduit | | 0.21 @ 500 |
| us.rs-online.com | 72259783 | 0.23676 | 500 | 500 | | Panduit | | 0.23676 @ 500 |
 | Newark | 13AC4700 | 0.254 | 1 | 7937 | | PANDUIT | | 0.254 @ 500 |
 | Zoro | G2276605 | 64.89 | 1 | 500 | | Panduit | 0.14 | 64.89 @ 500 |
 | Carlton Bates Company | 07498376254 | 85.0 | 1 | 500 | | PANDUIT | | 85.0 @ 500 |
 | simsupply.com | ZO-G2276605 | 85.42 | 1 | 500 | | Panduit | | 85.42 @ 500 |
 | gordonelectricsupply.com | FSD77-12-D | 91.05 | 1 | 500 | 12 | PANDUIT | | 91.05 @ 500 |
 | jensentools.com | 10015916 | 96.17 | 1 | 500 | | Panduit | | 96.17 @ 500 |
 | alldataresource.com | 325744 | 98.69 | 1 | 500 | | Panduit | | 98.69 @ 500 |
| grainger.ca | WWG39AX65 | 114.43783202 | 1 | 500 | | PANDUIT | 0.14 | 114.43783202 @ 500 |
 | Raptor Supplies | AH8XTK | 171.714348 | 1 | 500 | | PANDUIT | | 171.714348 @ 500 |
 | turtle.com | PAN FSD77-12-D | 204.07 | 1 | 500 | | Panduit | | 204.07 @ 500 |
| steinerelectric.com | 153516 | 243.23 | 1 | 500 | | Panduit | | 243.23 @ 500 |
| Graybar | 99892139 | 260.176 | 1 | 500 | | Panduit | | 260.176 @ 500 |
